Fisher DVC-2000 FIELDVUE Digital Valve Controller

Technical Specifications

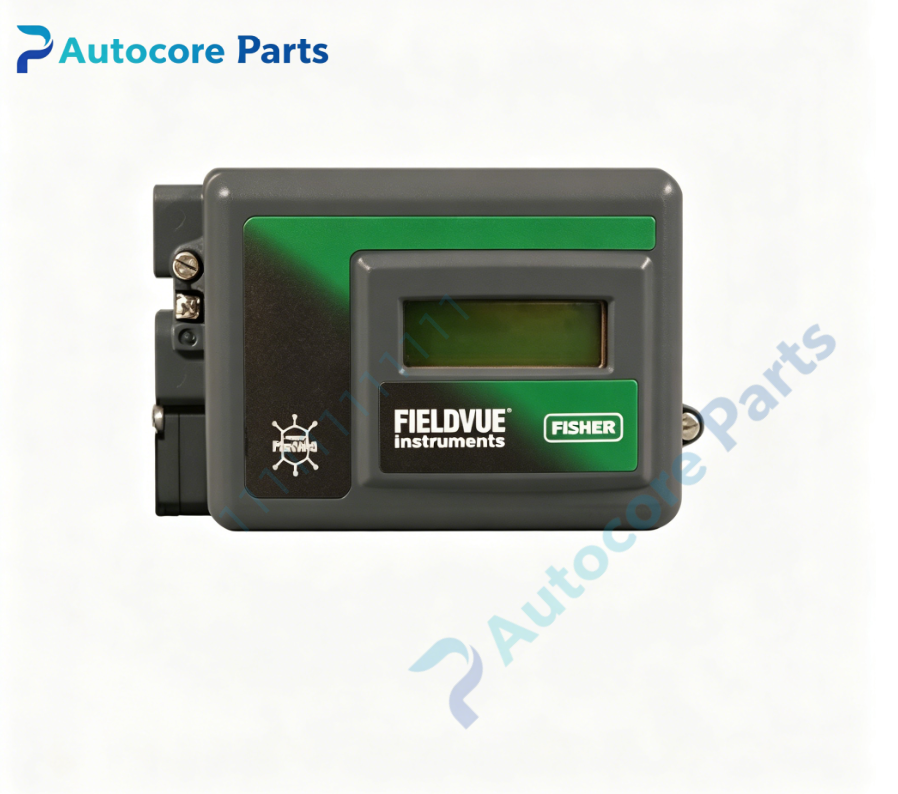

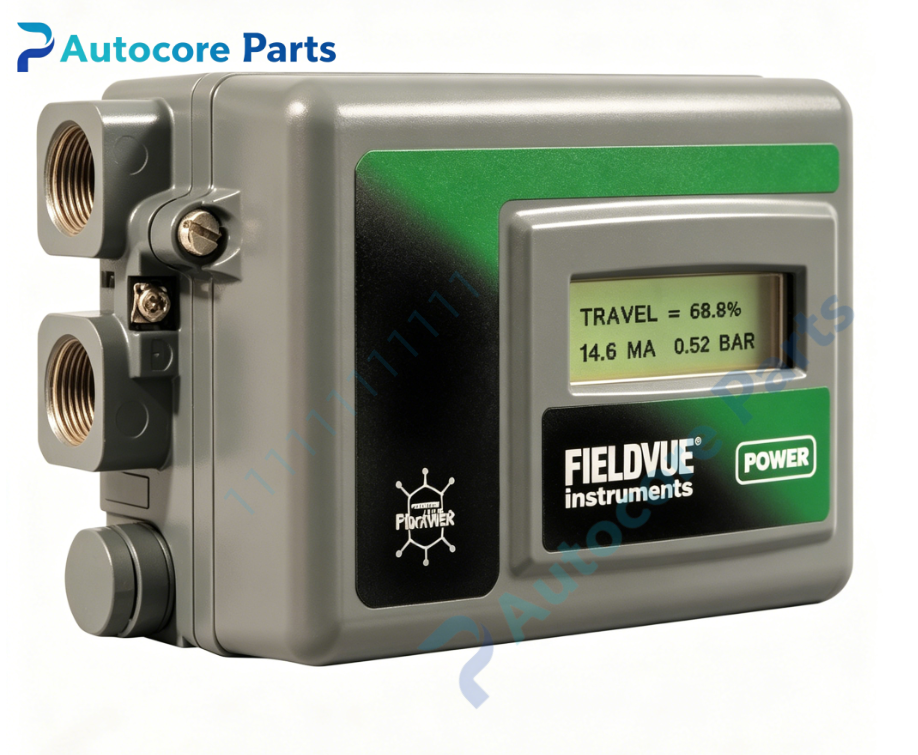

Model：DVC-2000 Brand：Fisher Product Type: FIELDVUE electro-pneumatic digital valve controller

Module Feature

Fisher DVC-2000 is compact FIELDVUE smart digital valve controller. It adopts non-contact magnetic linkage-less feedback design, eliminates mechanical lever wear. Two-stage pneumatic amplification delivers fast response and low air consumption. Equipped with local LCD multilingual display and push-button operation. Optional I/O package provides limit switches and 4-20mA stem position transmitter. Widely used in oil,gas,chemical,power and pharmaceutical control valve loop.

Working principle:4-20mA+HART digital signal processing + non-contact magnetic travel feedback + electro-pneumatic conversion Onboard components:Main electronic board,I/P converter,magnetic travel sensor,pneumatic relay,LCD display,terminal block,mounting bracket,gaskets

LED indicatorsStatus LED on housing,local LCD display

Hardware self-diagnosis

Supply air inspection,4-20mA signal check,auto stroke calibration,HART communication test,valve friction & pressure diagnostic

Programming software

ValveLink software for configuration,calibration and advanced valve performance diagnostic

Pneumatic & Electrical Parameters

Input signal:4~20mA DC with HART Supply air:Max 101psig(7bar),clean dry instrument air Actuator type:Single acting / Double acting,linear or rotary

Mechanical & Structure

Mounting:Direct mount on Fisher 657/667/GX actuators,comply with IEC/VDE/NAMUR standards Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:ATEX,IECEx,CE,FM,CSA Status:Fisher FIELDVUE DVC2000 series digital valve controller

System compatibility

Compatible with Fisher 657,658,667,GX pneumatic actuators,works with globe and rotary control valves for HART DCS system.

Function

DVC-2000 is smart digital valve controller manufactured by Fisher. It receives 4-20mA+HART setpoint signal, compares with real valve travel via non-contact magnetic sensor and adjusts pneumatic output pressure to drive actuator. Built-in diagnostic monitors valve friction, dead band and actuator pressure. Local LCD supports on-site configuration without communicator. Optional limit switches and position transmitter provide valve status feedback. It reduces maintenance cost and improves control precision.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and electric signal. Install magnetic array on valve stem, mount positioner bracket on actuator. Connect instrument air tubing and 4-20mA HART signal cable. Run quick auto-calibration and full stroke test. Restore power and air supply, verify HART communication and valve diagnostic.

Interface

1/4"NPT pneumatic supply/output ports,1/2"NPT electrical conduit port,pressure gauge tapping port,local LCD & pushbutton,status LED on DVC-2000.

Diagnostic

Valve no movement:Loss of supply air or 4-20mA signal fault. Poor positioning repeatability:Magnetic sensor misalignment or I/P module fault. HART communication failure:Wiring fault or electronic board damage. Diagnostic alarm:Abnormal valve friction or actuator leakage.

Product Brief

DVC-2000 Fisher FIELDVUE smart digital valve controller,with non-contact magnetic linkage-less feedback and HART communication,for linear/rotary control valve intelligent positioning and online diagnostic,compact electro-pneumatic positioner.
