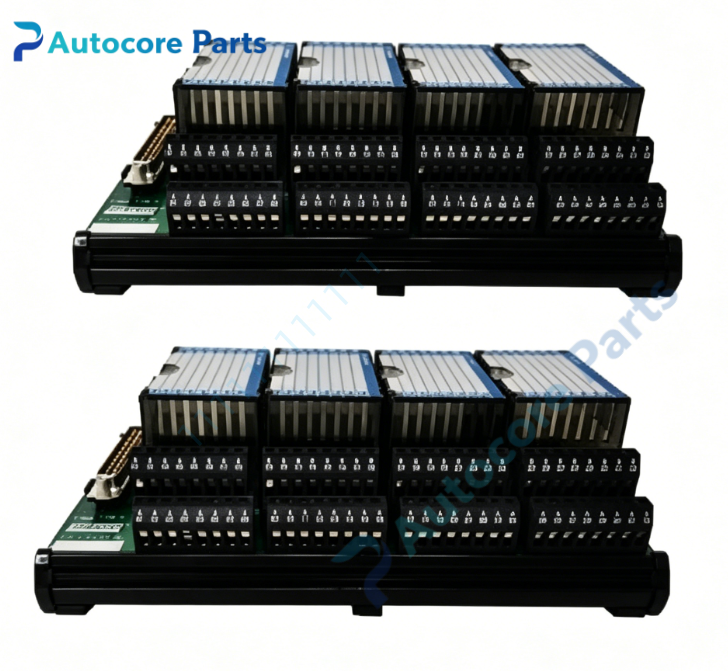

Foxboro 547G4672 FBM Analog Output Module

Technical Specifications

Model:547G4672

Brand:Foxboro

System compatibility:I/A Series DCS system

Function:Fieldbus analog output module,convert internal control signal to 4‑20mA field loop output

Installation:Standard rack‑mount,baseplate backplane fieldbus connection

Feature:Support hot‑swap replacement without rack power‑off

Signal output:4‑20mA analog current loop for field actuators

Accuracy:±0.15% full scale

Diagnostic:On‑board multi‑color LED for module power,communication and channel fault alarm

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum ribbed metal housing,anti‑vibration mechanical structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.46kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>90000 hours

Built‑in function

547G4672 FBM analog output module receives control values from I/A Series controller via fieldbus backplane and converts data into standard 4‑20mA analog output signals to drive field valves and actuators. Hot‑swap function enables online module replacement and reduces plant downtime risk. LED diagnostic indicators help technicians quickly locate communication and channel faults,suitable for continuous‑running petrochemical,chemical and power‑plant process loops.

Product Brief

547G4672 belongs to Foxboro I/A Series legacy DCS spare‑part family,obsolete original automation component. It needs to cooperate with matched I/A Series baseplate and fieldbus rack. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
