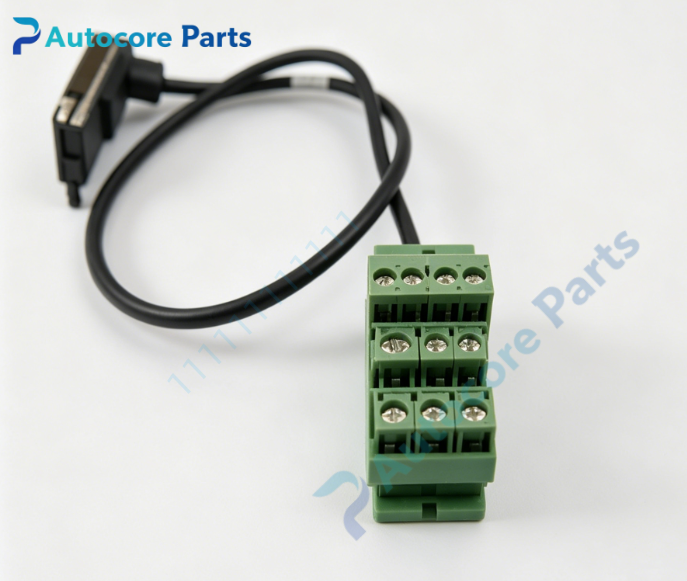

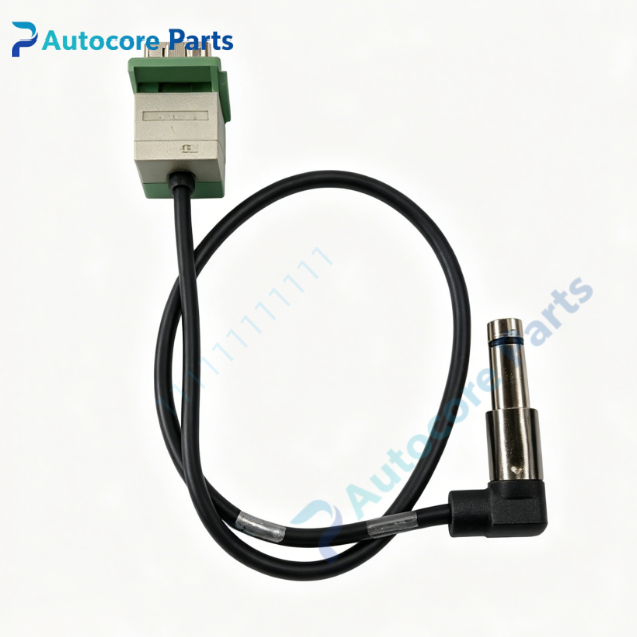

Foxboro AD908CC FBM‑TA Interconnection Cable Assembly

Technical Specifications

Model:AD908CC

Brand:Foxboro

System compatibility:I/A Series DCS system,matched for FBM237 and related FBM modules

Function:Dedicated signal interconnection between FBM fieldbus module and TA terminal‑assembly unit

Cable length:1m

Outer jacket material:LSZH low‑smoke zero‑halogen flame‑retardant material

Connector:One‑end dedicated FBM module plug,other‑end matched TA terminal‑assembly connector

Signal performance:Supports multi‑channel isolated analog signal and fieldbus signal transmission,max 2Mbps communication rate

Dielectric withstand:600VAC one‑minute dielectric strength between signal channels

Feature:Supports standard and redundant DCS hardware configuration

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Ambient operating temperature:‑40℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.34kg

Dimensions:Cable length 1000mm,connector overall size 78mm ×32mm

Certification:CE,UL industrial cable certification

Built‑in function

AD908CC interconnection cable assembly realizes stable signal transmission between Foxboro FBM fieldbus module and TA terminal assembly. LSZH low‑smoke zero‑halogen outer‑jacket improves safety for cabinet enclosed environment. It carries multi‑channel isolated analog signals and fieldbus communication data,adapts to standard and redundant DCS hardware architecture. Strict dielectric insulation performance avoids cross‑channel interference,guarantees reliable signal transmission for petrochemical,chemical and power‑plant continuous‑process DCS cabinets.

Product Brief

AD908CC belongs to Foxboro I/A Series legacy DCS wiring‑accessory spare‑part family,obsolete original dedicated interconnection cable. Must be paired with corresponding FBM module and TA terminal assembly. Widely used for original Foxboro DCS‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
