Foxboro AD908JQ FBM Breakout Interconnect Cable Assembly

Technical Specifications

Model:AD908JQ

Brand:Foxboro

System compatibility:I/A Series DCS system,matched for multiple FBM I/O modules

Function:Dedicated breakout transition cable,convert FBM high‑density D‑SUB interface to field‑wiring terminal‑block

Cable length:1.0m

Connector:A‑side high‑density D‑SUB plug for FBM module;B‑side removable green screw terminal‑block for field wiring

Cable construction:Multi‑pair shielded twisted‑pair,flame‑retardant polyolefin outer jacket

Signal support:Transmit multi‑channel analog 4‑20mA,discrete digital input and output signals

Dielectric withstand:600VAC insulation strength between signal pairs

Feature:Removable terminal‑block simplifies field wiring and module replacement without re‑crimping wires

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Ambient operating temperature:‑20℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.35kg

Dimensions

Cable length 1000mm, D‑SUB connector 78mm×32mm, terminal‑block 86mm×24mm

Certification:CE,UL industrial wiring certification

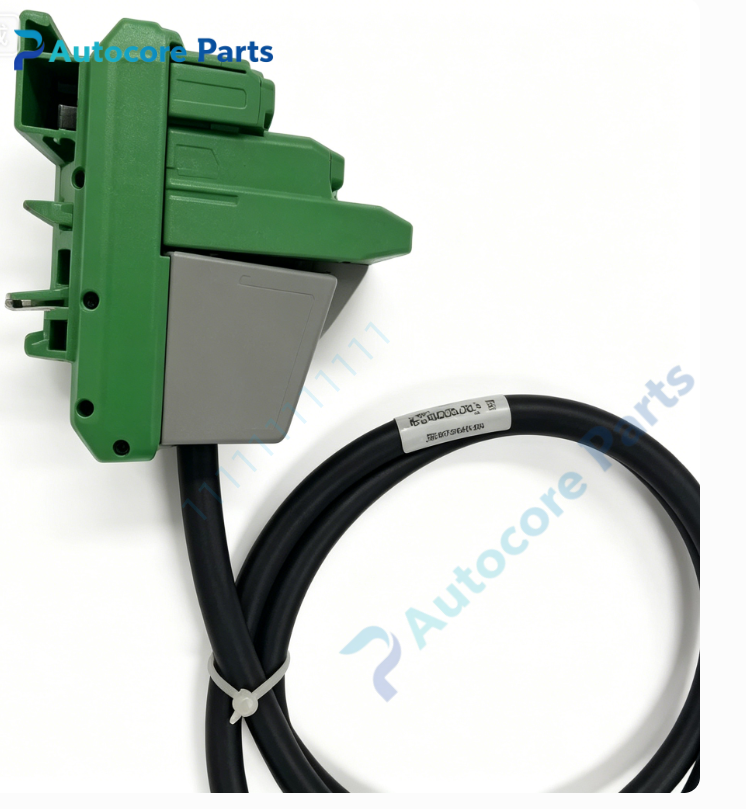

Built‑in function:AD908JQ breakout interconnect cable realizes signal transition between Foxboro FBM I/O modules and field‑side process wiring. High‑density D‑SUB converts to screw‑type terminal‑block,greatly facilitates on‑site wiring commissioning and later‑period module replacement. Shielded twisted‑pair structure suppresses industrial electromagnetic interference,ensures stable transmission of analog and digital signals for pressure,flow,temperature and liquid‑level loops in petrochemical,chemical and power‑plant DCS cabinets. Removable terminal‑block design avoids repeated wire disassembly when swapping FBM modules,reduces maintenance workload.

Product Brief

AD908JQ belongs to Foxboro I/A Series legacy DCS wiring‑accessory spare‑part family,obsolete original dedicated transition cable. Must pair with corresponding FBM I/O module. Widely used for original Foxboro DCS‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
