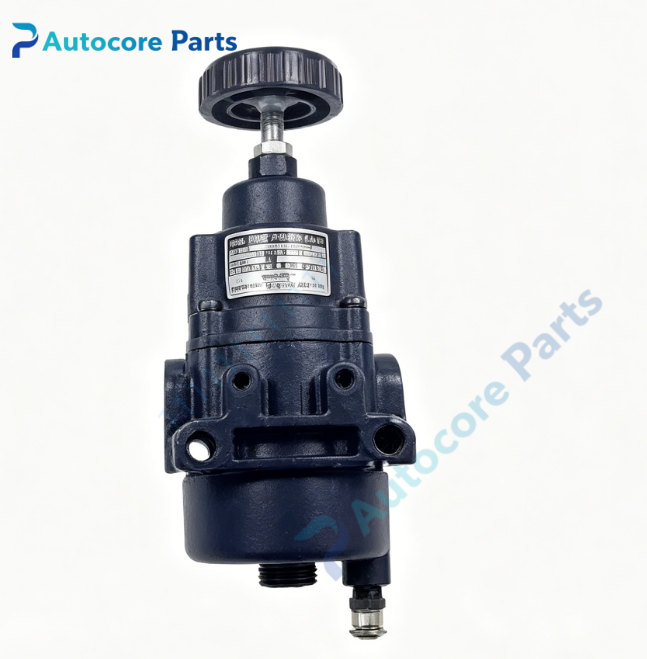

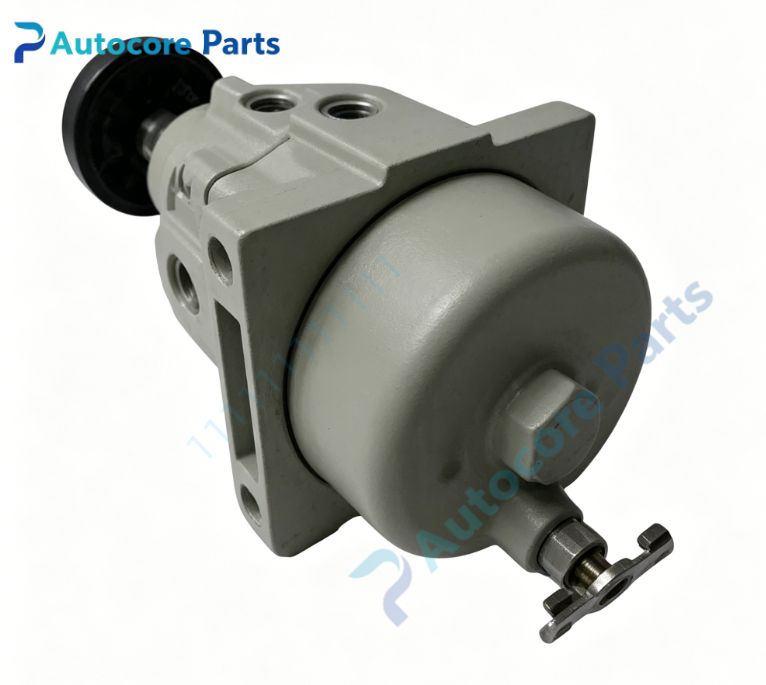

Foxboro B0123HE Pneumatic Precision Pressure Regulator

Technical Specifications

Model:B0123HE

Brand:Foxboro

Series:Pneumatic regulator series

Function:Pneumatic air pressure reduction and stable pressure output for pneumatic control loops

Adjustment mode:Front‑panel manual hand‑knob adjustment

Process connection:1/4‑NPT pneumatic thread for air inlet and outlet

Internal component:Built‑in replaceable air filter element for compressed‑air impurity filtration

Over‑pressure feature:Automatic over‑pressure exhaust function to prevent output pressure overshoot

Input pressure:Max 100psi(0.69MPa)

Adjustable output range:0‑20psi(0‑0.14MPa)

Adjustment accuracy:±1% full scale

Repeatability:±0.25% full scale

Reference medium:Clean dry compressed air

Housing:Die‑cast aluminum alloy housing,corrosion‑resistant surface treatment

Protection class:IP66

Ambient operating temperature:‑20℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Max medium temperature:+70℃

Weight:0.88kg

Dimensions:130mm × 112mm × 65mm

Certification:CE industrial certification

MTBF:>96000 hours

Built‑in function

B0123HE pneumatic precision pressure regulator reduces high‑pressure compressed‑air source and delivers stable constant‑pressure air supply for field pneumatic positioners and actuators. Built‑in filter element removes impurities from compressed‑air,reducing internal component wear. Manual knob completes convenient on‑site pressure setting. Automatic over‑pressure exhaust protects downstream pneumatic equipment,widely applied for petrochemical,chemical and pulp‑paper plant pneumatic control valve air‑supply loops.

Product Brief

B0123HE belongs to Foxboro legacy pneumatic‑instrument spare‑part family,obsolete original field pressure‑regulating device. Requires clean dry compressed‑air source for normal operation. Widely used for original Foxboro pneumatic‑control‑equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
