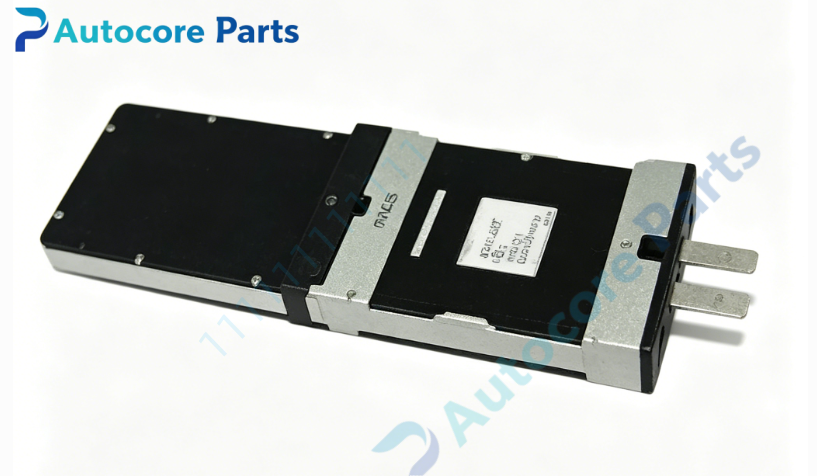

Foxboro CM400YL FBM10 120VAC Discrete Input‑Output Fieldbus Module

Technical Specifications

Model:CM400YL

Brand:Foxboro

System compatibility:I/A Series DCS system

Function:Fieldbus discrete I/O module,collect 120VAC field status signal and output relay contact for interlock and alarm logic

Installation:Baseplate‑mount installation,mated with dedicated I/A‑Series FBM baseplate

Feature:Support hot‑swap online replacement without system power‑off

Input signal:120VAC discrete status input

Output:Electromechanical relay dry‑contact output

Contact rating:120VAC resistive load

Internal circuit:Built‑in RC surge‑suppression circuit for relay coil

Protection:Transient surge protection for each AC input channel

Diagnostic:On‑board multi‑color LED indicators for module power,fieldbus communication and individual channel fault alarm

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum ribbed metal housing,anti‑vibration mechanical reinforcement

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.49kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>88000 hours

Built‑in function

CM400YL FBM10 discrete I/O module acquires 120VAC discrete status signals from field switches and auxiliary contacts,transmits digital data to I/A‑Series controller via fieldbus baseplate. It executes controller logic command and drives built‑in relay contacts to output interlock,alarm and auxiliary control signals. Hot‑swap function enables online module replacement and reduces plant downtime risk. RC surge‑suppression circuit absorbs coil reverse electromotive force to protect internal circuit. LED diagnostic indicators help technicians rapidly locate power,communication and channel abnormal conditions,widely applied for safety interlock,valve status feedback and alarm‑logic loops in petrochemical,chemical and power‑plant facilities.

Product Brief

CM400YL belongs to Foxboro I/A Series legacy DCS spare‑part family,obsolete original automation component. It must be matched with corresponding I/A‑Series FBM baseplate and complete correct field AC‑signal wiring. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
