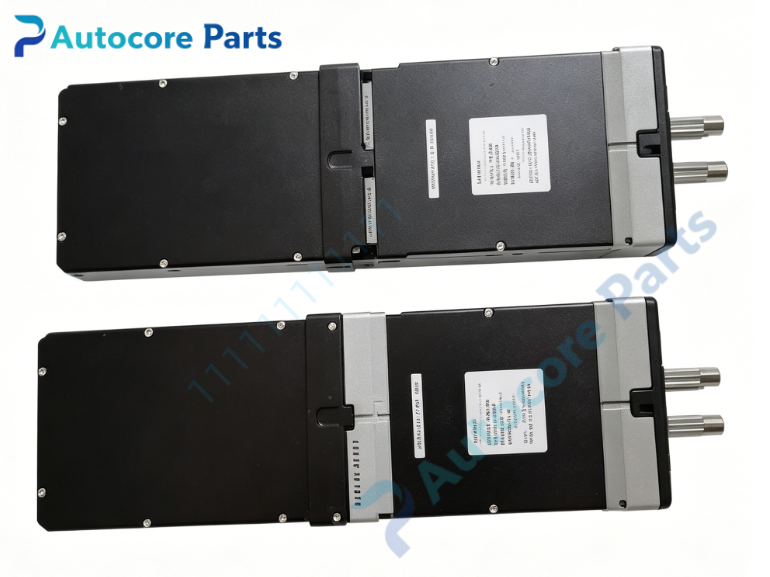

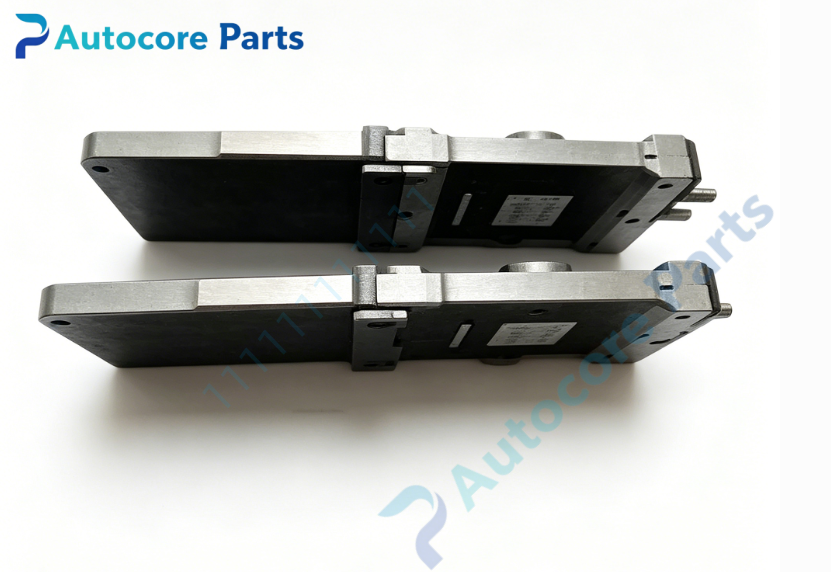

Foxboro CM400YM FBM11 24VDC Discrete Input‑Output Fieldbus Module

Technical Specifications

Model:CM400YM

Brand:Foxboro

System compatibility:I/A Series DCS system

Function:Fieldbus discrete I/O module,collect 24VDC field status signal and output relay contact for interlock and alarm logic

Installation:Baseplate‑mount installation,mated with dedicated I/A‑Series FBM baseplate

Feature:Support hot‑swap online replacement without system power‑off

Input signal:24VDC discrete status input,support wet‑contact and dry‑contact signal

Output:Electromechanical relay dry‑contact output

Contact rating:24‑125VDC resistive load,max 5A

Internal circuit:Built‑in RC surge‑suppression circuit for relay coil

Protection:Transient surge protection for each DC input channel

Diagnostic:On‑board multi‑color LED indicators for module power,fieldbus communication and individual channel fault alarm

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum ribbed metal housing,anti‑vibration mechanical reinforcement

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.49kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>88000 hours

Built‑in function

CM400YM FBM11 discrete I/O module acquires 24VDC discrete status signals from field switches and auxiliary contacts,transmits digital data to I/A‑Series controller via fieldbus baseplate. It executes controller logic command and drives built‑in relay contacts to output interlock,alarm and auxiliary control signals. Hot‑swap function enables online module replacement and reduces plant downtime risk. RC surge‑suppression circuit absorbs coil reverse electromotive force to protect internal circuit. LED diagnostic indicators help technicians rapidly locate power,communication and channel abnormal conditions,widely applied for safety interlock,valve status feedback and alarm‑logic loops in petrochemical,chemical and power‑plant facilities.

Product Brief

CM400YM belongs to Foxboro I/A Series legacy DCS spare‑part family,obsolete original automation component. It must be matched with corresponding I/A‑Series FBM baseplate and complete correct field DC‑signal wiring. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
