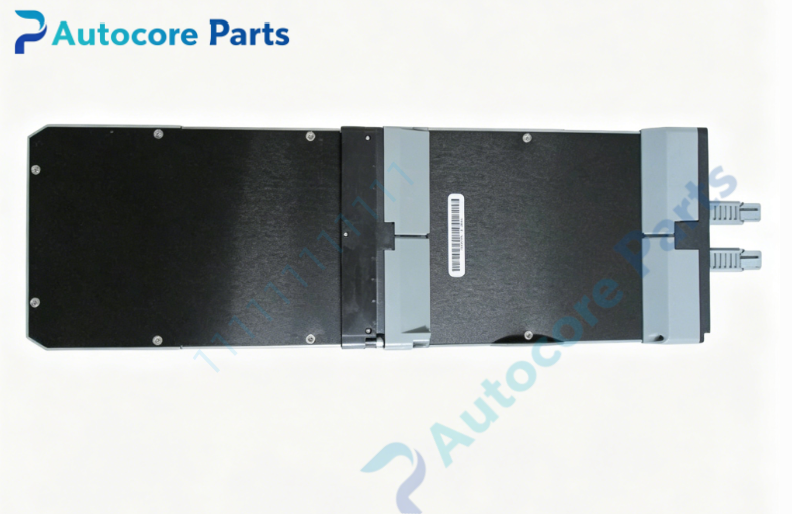

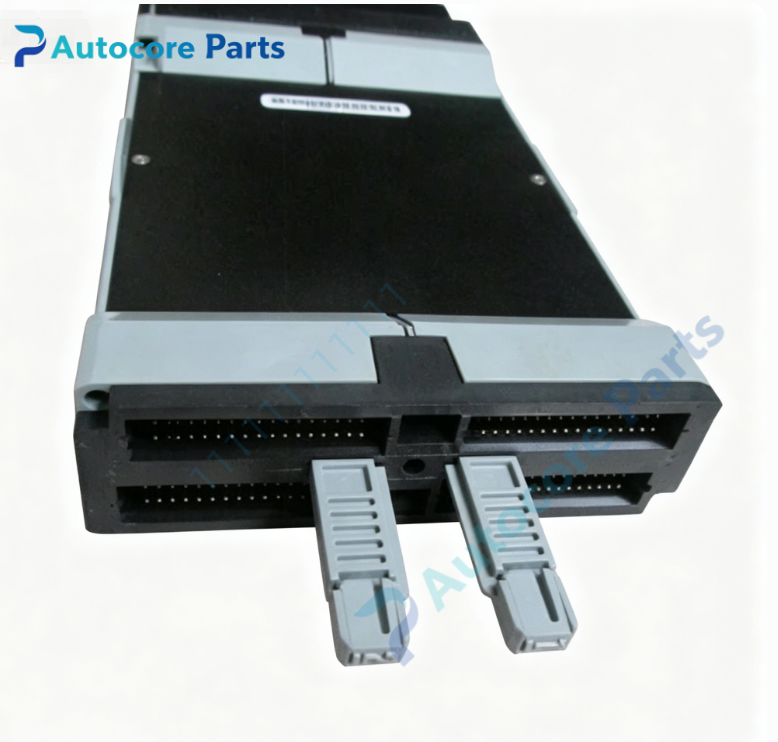

Foxboro CM400YN FBM12 DC Discrete Input Fieldbus Module

Technical Specifications

Model:CM400YN

Brand:Foxboro

System compatibility:I/A Series DCS system

Function:Fieldbus discrete input module,collect field switch and contact status signals and transmit digital data to DCS controller

Installation:Baseplate‑mount installation,mated with dedicated I/A‑Series FBM baseplate

Feature:Support hot‑swap online replacement without system power‑off

Channel quantity:16 discrete input channels,divided into two groups of 8 channels

Input voltage range:24VDC / 48VDC / 125VDC multi‑voltage compatibility

Input type:Support dry‑contact passive input and wet‑contact active input

Isolation:Opto‑electrical isolation between field‑side channels and backplane system,500VDC isolation strength

Input filter:Configurable software input filter for signal‑debounce

Response time:＜10ms including filter delay

Diagnostic:On‑board per‑channel green LED for input status indication,multi‑color LED for module power and fieldbus communication status

Power supply:Powered via FBM baseplate backplane

Protection:Built‑in transient surge protection for each input channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum ribbed metal housing,anti‑vibration mechanical reinforcement

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.48kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>89000 hours

Built‑in function

CM400YN FBM12 discrete input module collects on‑site switch,valve auxiliary contact and interlock feedback signals. Opto‑electrical isolation suppresses ground‑loop interference and noise from industrial field environment. Configurable input filter eliminates contact‑bounce interference. It transmits digital status data to I/A‑Series controller through fieldbus baseplate. Hot‑swap function supports online module replacement to reduce plant downtime risk. Independent per‑channel LED facilitates quick on‑site signal inspection,widely applied for valve feedback,alarm and safety‑interlock signal acquisition loops in petrochemical,chemical and power‑plant facilities.

Product Brief

CM400YN belongs to Foxboro I/A Series legacy DCS spare‑part family,obsolete original automation component. It must be matched with corresponding I/A‑Series FBM baseplate and complete correct field DC‑signal wiring. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.今天 16:14
