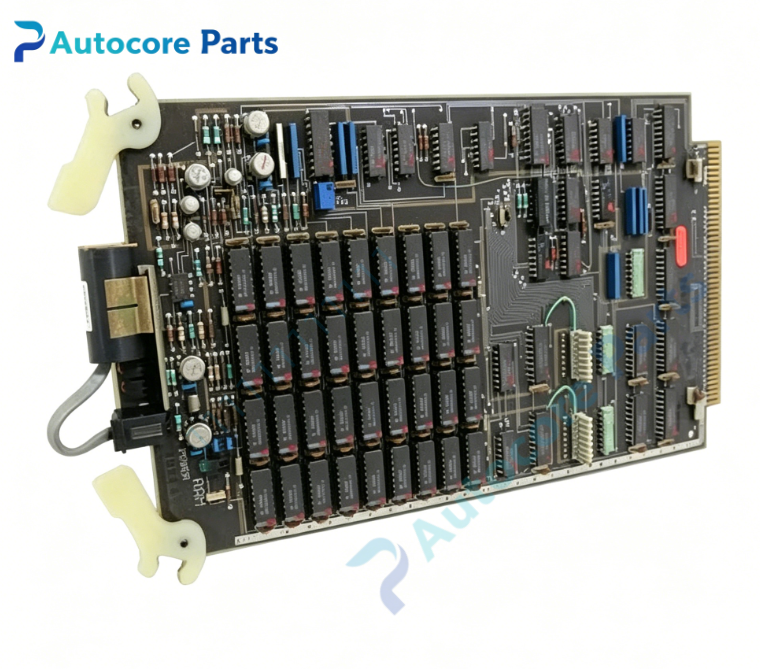

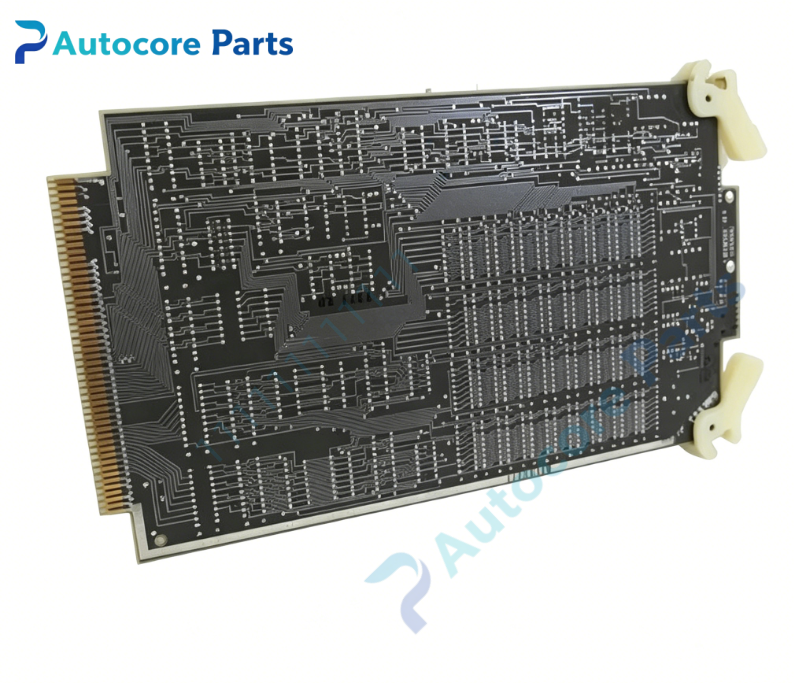

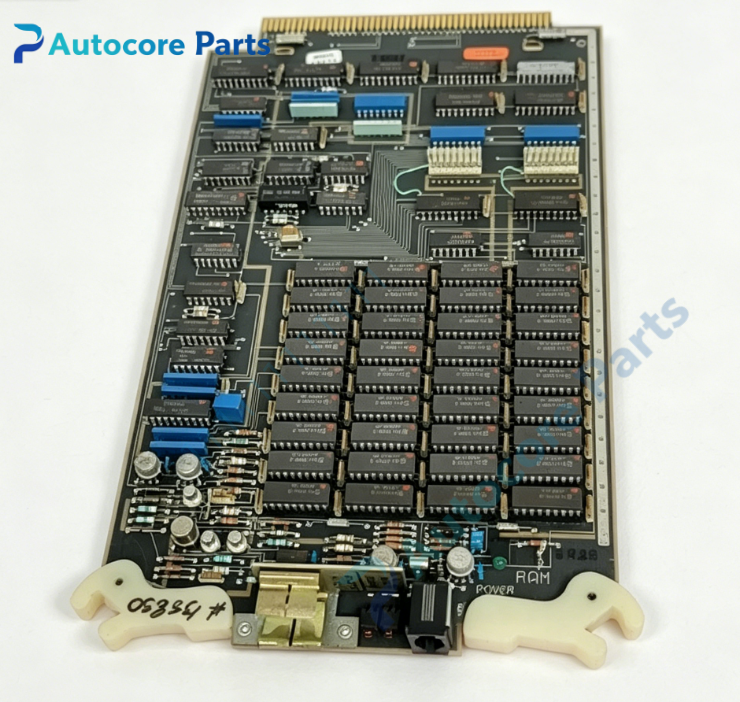

Foxboro F0109AE‑B Control Power Circuit Board

Technical Specifications

Model:F0109AE‑B

Brand:Foxboro

System compatibility:I/A Series DCS legacy controller rack

Function:Rack‑inserted control power board,generates multiple regulated DC power rails for controller internal logic circuits

Installation:Rack slot insertion,gold‑plated edge‑connector interface connecting system backplane

Circuit feature:Multi‑channel DC voltage regulation circuit,over‑voltage and short‑circuit protection

Diagnostic:On‑board power status LED indicator,test‑point terminals for voltage measurement

Protection:Integrated over‑voltage,short‑circuit and thermal shutdown protection

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Multilayer bare PCB board,gold‑plated edge‑connector,rack mechanical retention fixture

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.49kg

Dimensions:338mm ×216mm ×18mm

Certification:CE,UL

MTBF:>82000 hours

Built‑in function

F0109AE‑B control power board supplies stable multi‑channel DC power for logic chips and peripheral circuits inside Foxboro I/A‑Series controller rack. Built‑in multi‑level protection prevents component damage caused by abnormal voltage or short‑circuit. Status LED and reserved test‑points support quick on‑site power‑supply troubleshooting,widely applied for controller rack power‑board replacement maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

F0109AE‑B belongs to Foxboro I/A Series legacy DCS power‑board spare‑part family,obsolete original rack‑slot inserted PCB component. Must be fitted in matching I/A‑Series instrument rack slot. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during bare circuit‑board handling and installation.今天 08:38
