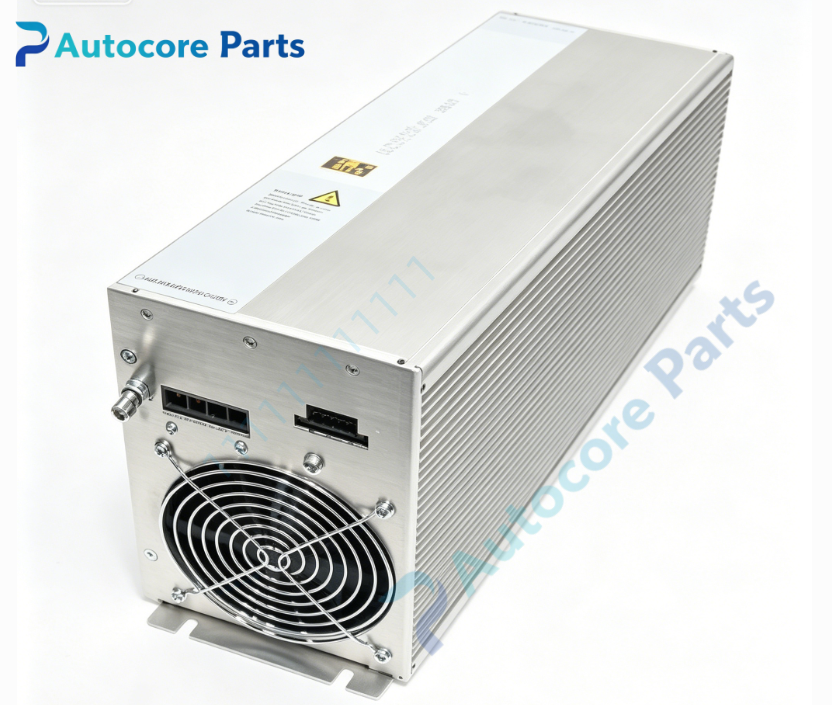

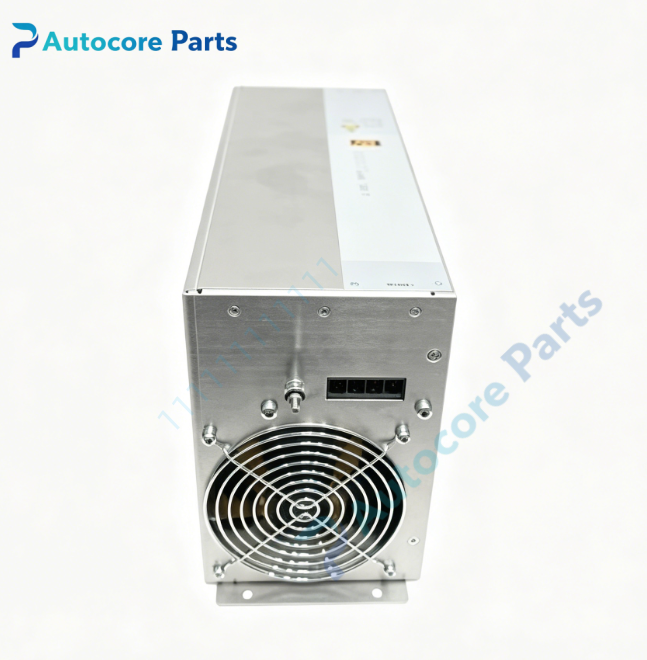

B&R 8BVF0440H000.001‑2 Mains Filter Module

Technical Specifications

Model:8BVF0440H000.001‑2

Brand:B&R

Product Type:ACOPOSmulti wall‑mount three‑phase EMC mains filter module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,machine tools,packaging machinery,automated production lines requiring strict EMC compliance

Mains Input:3‑phase 380‑500 VAC ±10%,50/60 Hz

Electrical Rating:Continuous rated current 44 A;matched for 44‑kW‑class ACOPOSmulti power‑supply modules

EMC Performance:Effectively suppresses high‑frequency conducted interference generated by servo power unit,meets industrial EMC standard requirements,reduces noise feedback to upstream power grid

Installation:Wall‑mount structure,natural air cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating required above 500 m altitude

Dimension:Standard ACOPOSmulti wall‑mount module form‑factor

Weight:6.20 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Three‑phase EMC mains filter is installed on the AC input side of ACOPOSmulti power‑supply module. It restrains high‑frequency conducted interference produced by servo rectifier circuit,avoids drive noise polluting factory power grid,and improves stability of surrounding sensitive automation equipment. Wall‑mount independent installation mode is convenient for cabinet layout modification and on‑site maintenance replacement.

Product Brief

8BVF0440H000.001‑2 is 44A high‑current mains EMC filter of B&R ACOPOSmulti servo family. It is used together with corresponding passive or regenerative power‑supply modules,applied for projects with strict EMC requirements.

It adopts independent wall‑mount installation without relying on system backplane. The filter is installed between three‑phase mains and power‑supply module AC input terminal,filtering high‑frequency harmonic noise produced by servo power unit. It is widely used for machine‑tool and packaging‑machine motion‑control occasions that must satisfy EMC test standards.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti multi‑axis servo equipment. Before purchase,please confirm power‑supply module rated current and mains voltage. ESD anti‑static protection shall be performed during installation. Input‑output wiring terminals sold separately.
