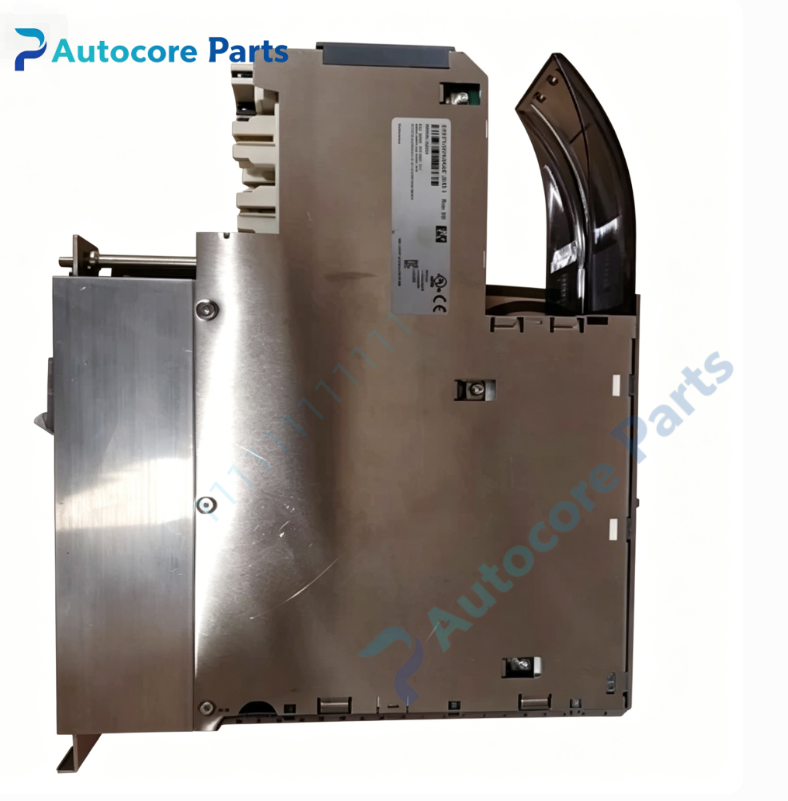

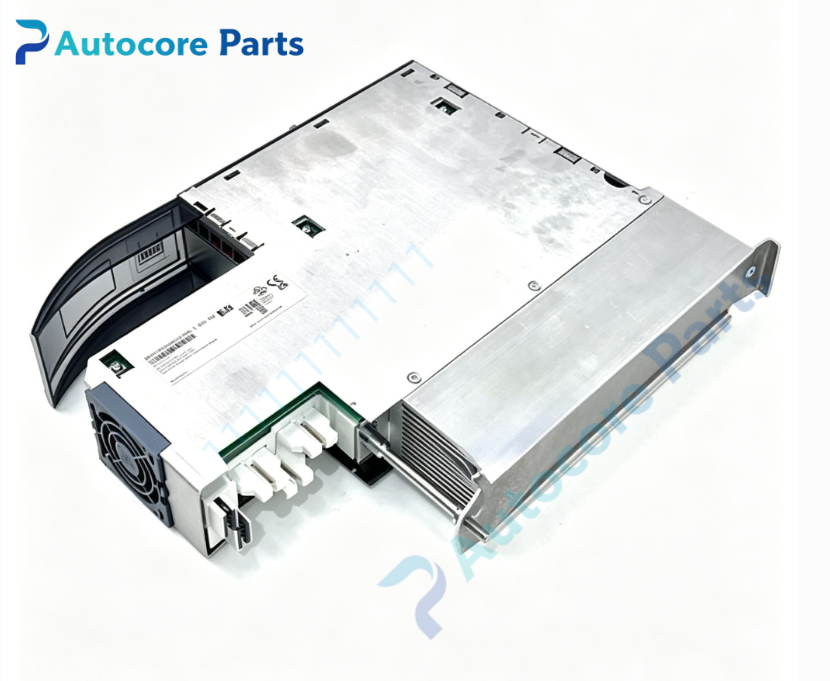

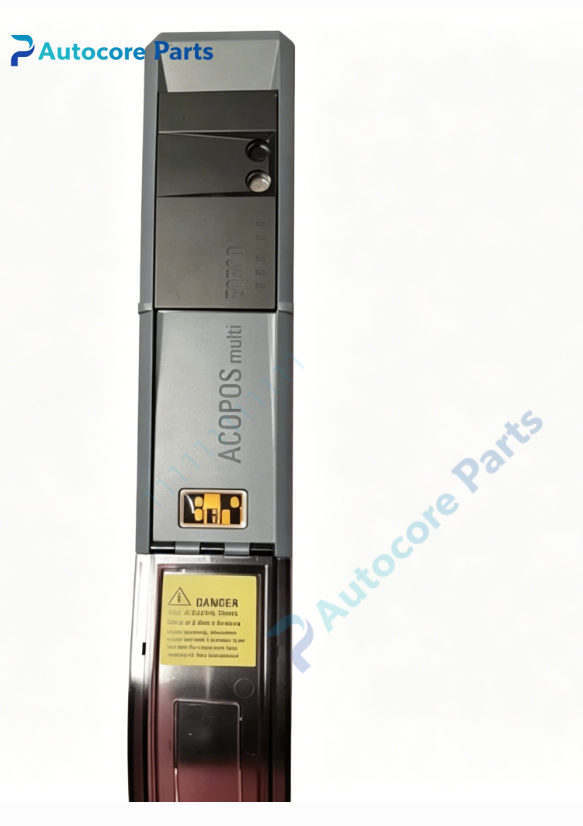

B&R 8BVE0500HW0000‑1 Regenerative Power Supply Module

Technical Specifications

Model:8BVE0500HW0000‑1

Brand:B&R

Product Type:ACOPOSmulti wall‑mount regenerative servo power supply module

Applicable System:B&R ACOPOSmulti multi‑axis servo drive system,machine tools,packaging machinery,high‑dynamic motion‑control lines with frequent deceleration and large regenerative energy

Mains Input:3‑phase 380‑500 VAC ±10%,50/60 Hz;adapt to TT,TN‑S,TN‑C‑S power grid systems

Power Rating:Rated continuous power 30 kW;continuous output current 50 A;short‑time peak power for dynamic motion

DC‑bus Characteristic:Nominal 750 VDC DC‑bus;power factor correction;sinusoidal input current,low mains harmonic distortion

Core Function:Active regenerative feedback,returns servo deceleration regenerative energy back to AC mains grid,reduces energy loss without relying on brake resistor;support DNA dynamic node allocation

Auxiliary Consumption:Standby power loss approx 12W;24VDC auxiliary power supplied by external or auxiliary supply module

Installation:Wall‑mount structure,forced air cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating required above 500 m altitude,max altitude 4000 m

Status Indication:Multi‑color LED indicators for power status,system fault and bus communication diagnosis

Dimension:Standard ACOPOSmulti wall‑mount module form‑factor

Weight:9.80 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃;power derating required under high ambient temperature

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Regenerative power supply converts three‑phase AC mains into stable 750VDC DC‑bus power for ACOPOSmulti inverter modules. Realizes active energy feedback,feeds regenerative energy generated during servo deceleration back to power grid,saves energy and cancels large‑capacity braking resistor. Built‑in power‑factor correction improves grid quality. DNA dynamic node allocation simplifies multi‑axis system configuration. Wall‑mount mechanical structure provides flexible cabinet layout without backplane dependency.

Product Brief

8BVE0500HW0000‑1 is wall‑mount regenerative power supply of B&R ACOPOSmulti servo series. Different from passive power supply,it supports active energy feedback to mains grid,ideal for high‑dynamic equipment with frequent acceleration‑deceleration.

It adopts independent wall‑mount installation mode,suitable for cabinet schemes that do not use system backplane. Sinusoidal mains current effectively reduces harmonic pollution to power grid. Cooperates with multiple ACOPOSmulti inverter modules to constitute complete high‑performance multi‑axis motion‑control system.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti automation equipment. Before purchase,please confirm mains voltage,total axis power consumption and grid condition. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Relevant terminal accessories sold separately.
