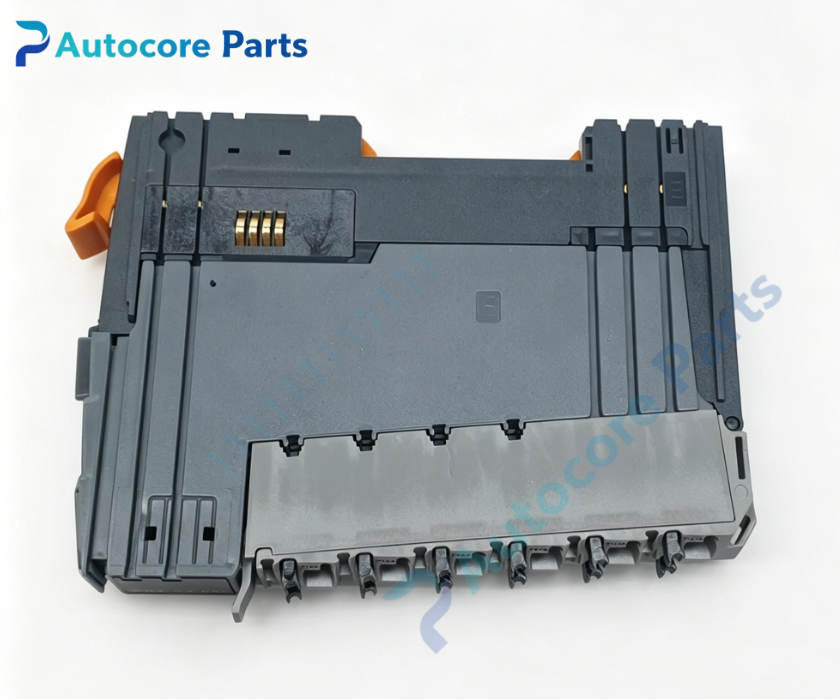

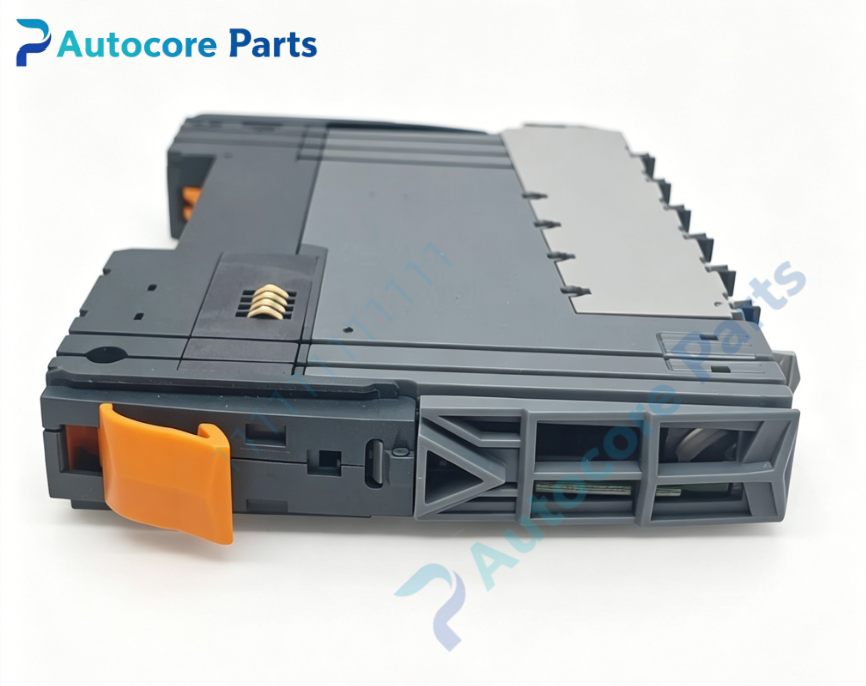

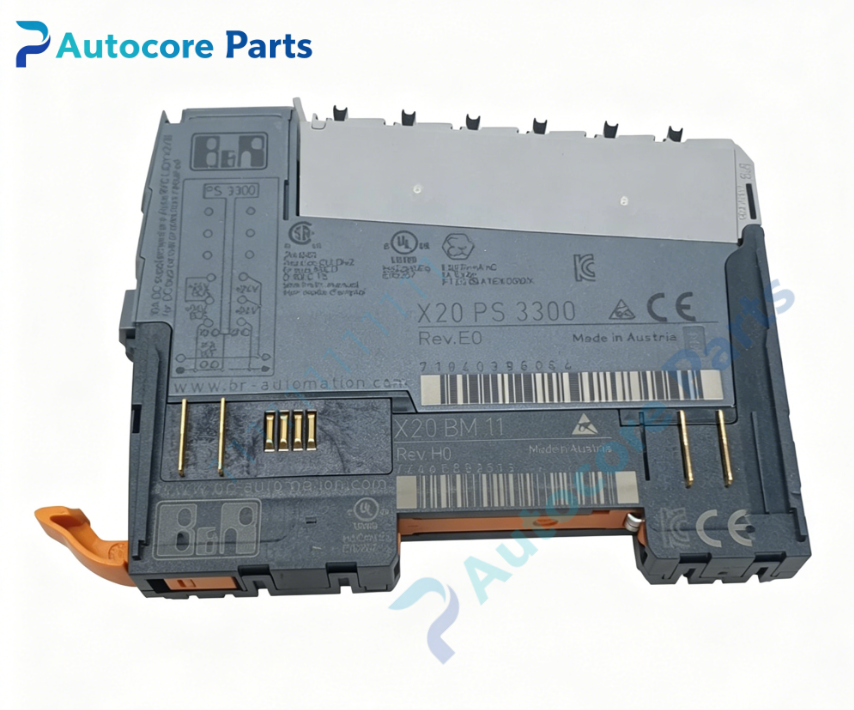

B&R X20PS3300 Power Supply Module

Technical Specifications

Model:X20PS3300

Brand:B&R

X2X‑Link input voltage:24VDC(-15% / +20%)

X2X‑Link max input current:0.7A

X2X‑Link output power:7W

X2X‑Link protection:Built‑in non‑replaceable fuse,reverse polarity protection,short‑circuit protection

Operation mode:Supports parallel connection and redundant power supply

I/O supply input:24VDC,max 10A external slow‑blow fuse required

Diagnostic:Overload and module status monitoring

Power consumption:1.42W

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20PS3300 power supply module provides power for X2X‑Link fieldbus and station internal I/O electronics. It supports parallel and redundant power configuration to improve system reliability. Built‑in reverse‑polarity and short‑circuit protection safeguards bus circuit,diagnostic function reports overload fault status,support local X20 station and distributed X2X‑Link remote stations deployment.

Product Brief

X20PS3300 belongs to B&R X20 I/O system family,coated variant X20cPS3300 is available for harsh environment. X20BM05 bus module and X20TB12 terminal block need to be ordered separately. External slow‑blow fuse must be configured for I/O power loop. Widely used for original B&R automation equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
