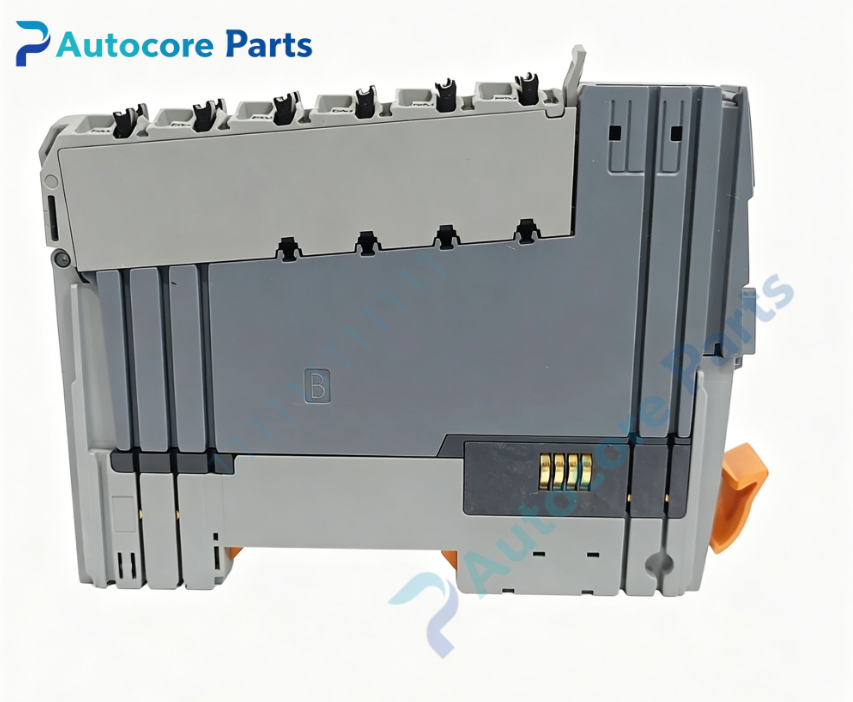

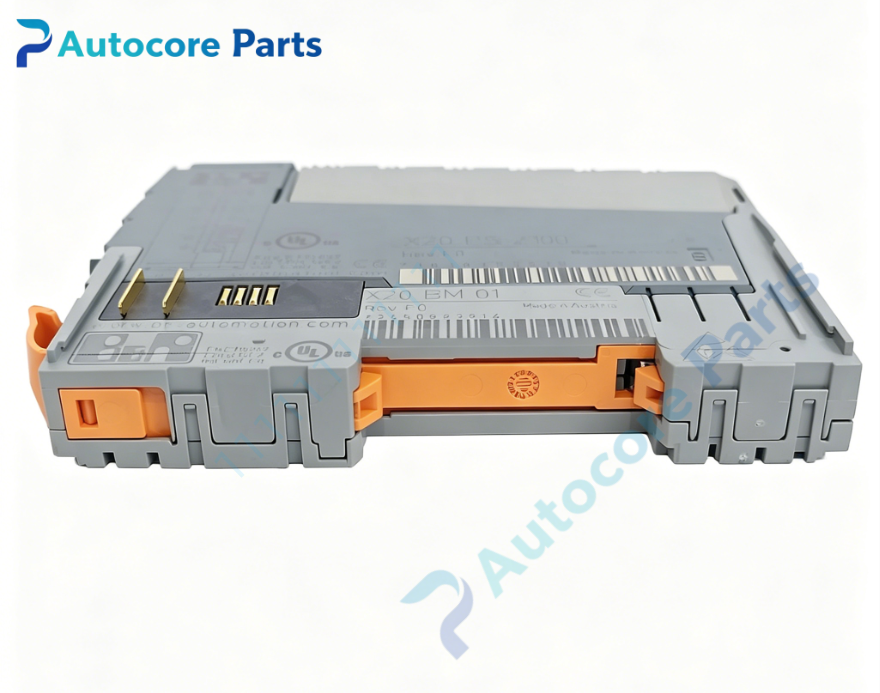

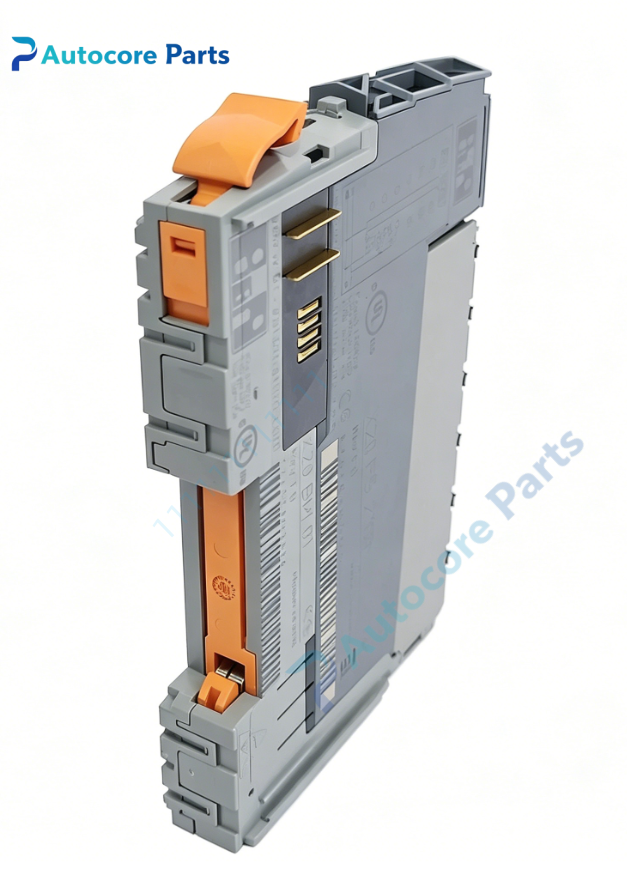

B&R X20PS2100 Power Supply Module

Technical Specifications

Model:X20PS2100

Brand:B&R

Nominal input voltage:24VDC(-15% / +20%)

Input range:18‑30VDC

Function:Power supply for X20 station internal I/O electronics

Power consumption:0.2W bus logic,0.6W I/O circuit

External fuse:Max 10A slow‑blow line fuse

Diagnostic:Module operating and fault status monitoring

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20PS2100 power supply module supplies internal I/O electronics for X20 station. It provides stable 24VDC power for connected X20 I/O modules. Supports module status diagnosis via hardware LED and software,works for local X20 station and distributed X2X‑Link remote stations.

Product Brief

X20PS2100 belongs to B&R X20 I/O system family,coated variant X20cPS2100 is available for harsh environment. X20BM01 bus module and X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. External slow‑blow fuse must be configured. ESD anti‑static protection shall be followed during installation
