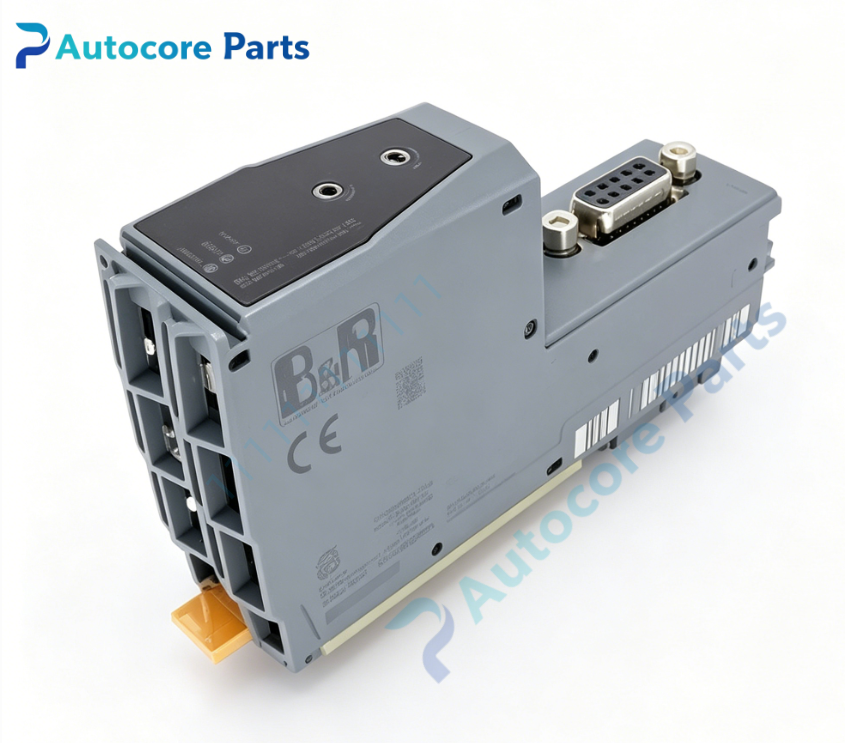

B&R X20IF1063 PROFIBUS DP Slave Interface Module

Technical Specifications

Model:X20IF1063

Brand:B&R

Fieldbus protocol:PROFIBUS DP V0 slave

Connector:9‑pin female DSUB

Max transfer rate:12Mbit/s

Max cable distance:1200m

Galvanic isolation:Electrical isolation between fieldbus and X20 internal bus

Termination:External terminating resistor required

Power consumption:0.87W

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20IF1063 PROFIBUS DP slave interface module realizes X20 station access to PROFIBUS DP V0 fieldbus network. Galvanic isolation improves anti‑interference performance for industrial fieldbus communication. External bus termination resistor is needed for network terminal node. Supports local X20 I/O and distributed X2X‑Link remote stations deployment.

Product Brief

X20IF1063 belongs to B&R X20 I/O system family,it is PROFIBUS DP V0 slave communication module. X20IF1063‑1 variant supports DP V1 function. Bus base module need to be ordered separately. Shielded PROFIBUS cable is required for wiring. Widely used for original B&R automation equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
