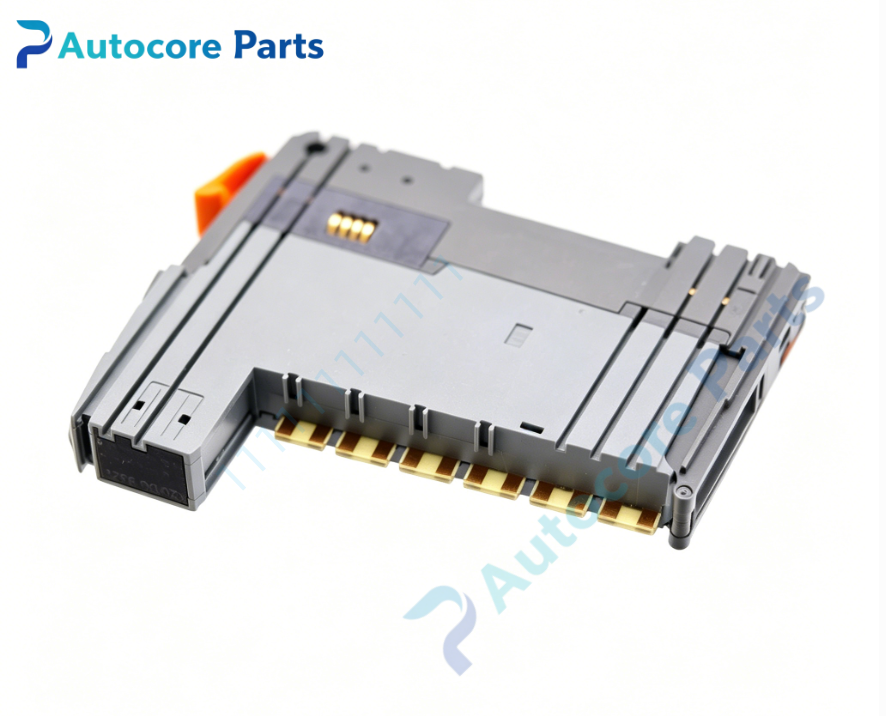

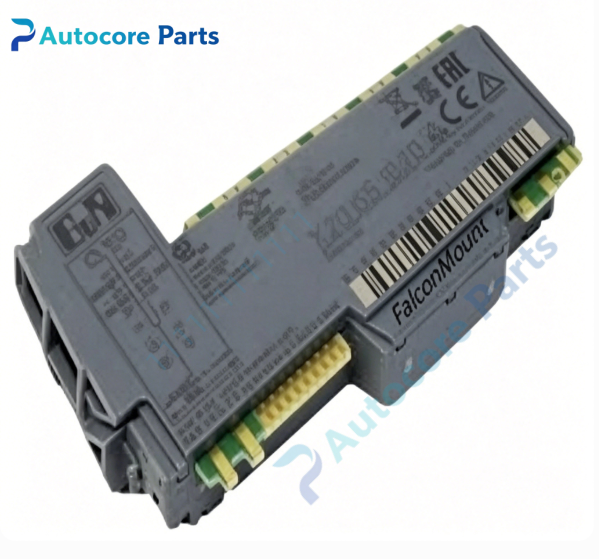

B&R X20DO9322 Digital Output Module

Technical Specifications

Model:X20DO9322

Brand:B&R

Product Type:X20 system digital output module

Applicable System:B&R X20 PLC system,for controlling solenoid valves,contactors,indicators and general actuators

Output Channel:12 channels

Output Type:Source PNP 1‑wire connection

Rated Voltage:24 VDC(-15% / +20%)

Per‑Channel Current:0.5 A

Max Resistive Switching Frequency:500 Hz

Protection:Integrated short‑circuit,overload protection

Power Consumption:0.26 W(bus),1.15 W(I/O circuit),additional 0.63 W from resistive actuator load

Diagnosis:Hardware channel LED and software diagnostic function for output fault

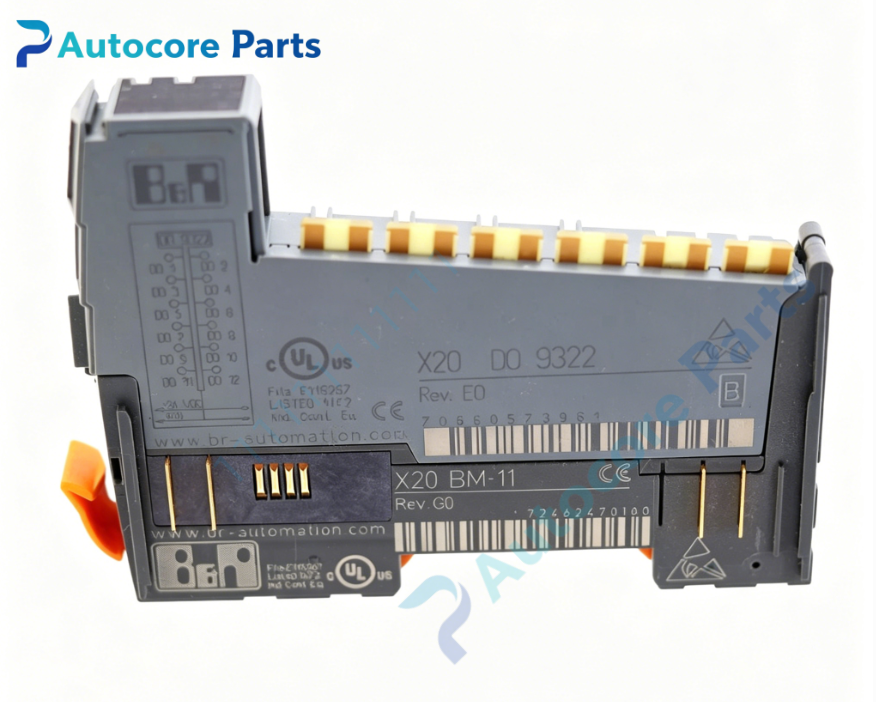

Installation:Install on X20BM11 / X20BM15 bus module,X20TB12 terminal block ordered separately

Indicator:Per‑channel I/O status LED,module running and fault indication

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,LR,ABS,BV,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20DO9322 digital output module drives field actuators for X20 control system. 12‑channel source‑type 1‑wire wiring simplifies cabinet wiring work. Built‑in short‑circuit and overload protection improves field‑side reliability. Per‑channel LED and software diagnosis realize fast fault locating,support local X20 I/O stations and distributed X2X‑Link remote stations.

Product Brief

X20DO9322 belongs to B&R X20 I/O system family,it is standard 12‑channel digital output module for general automation equipment. X20BM11/X20BM15 bus module and X20TB12 terminal block must be purchased separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify output type and channel quantity requirement. ESD anti‑static protection shall be followed during installation
