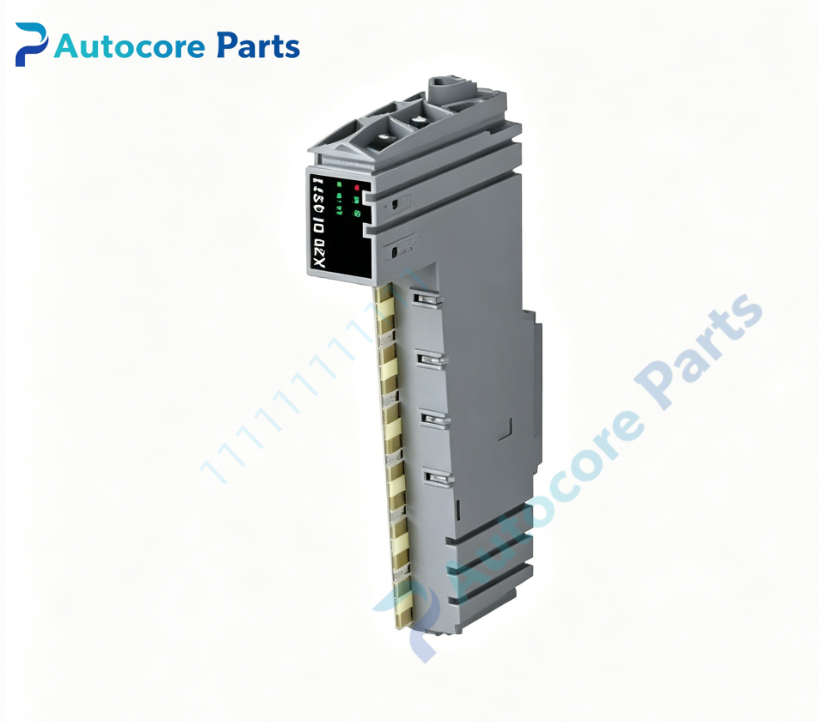

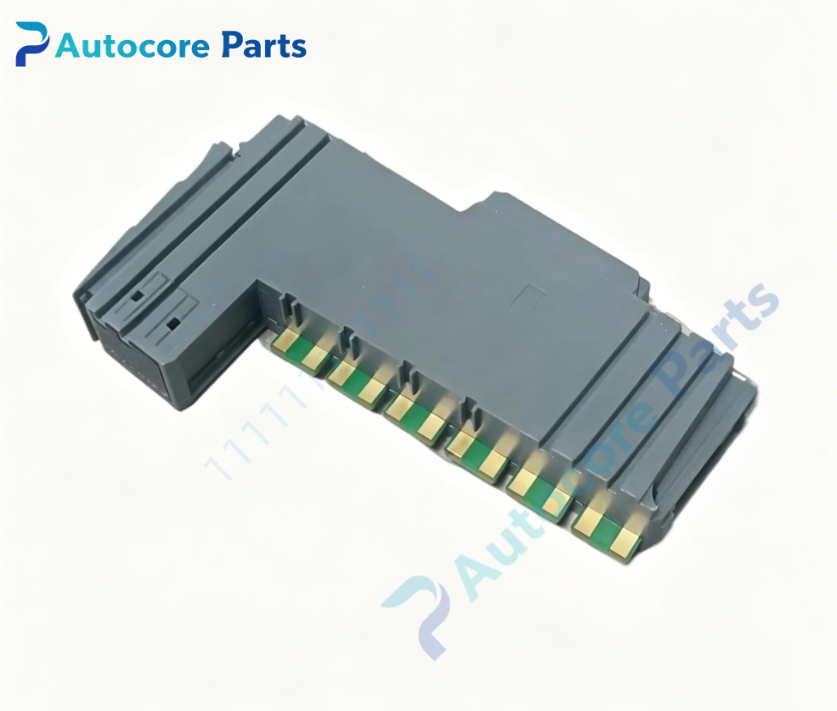

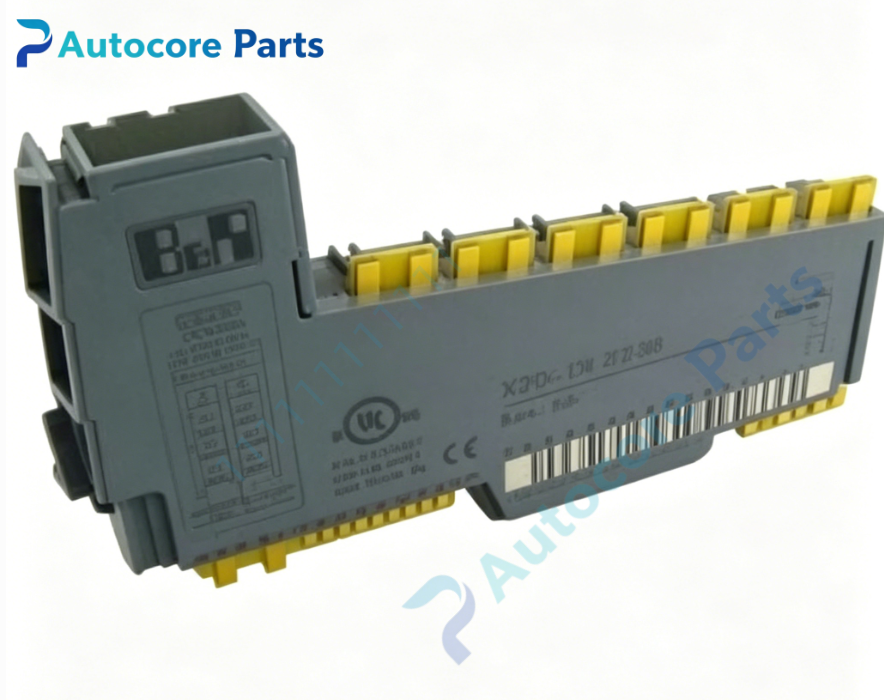

B&R X20DI4371 Digital Input Module

Technical Specifications

Model:X20DI4371

Brand:B&R

Product Type:X20 system digital input module

Applicable System:B&R X20 PLC system,used for collecting proximity switches,photoelectric sensors and other digital signals,support pulse counting application

Input Channel:4 channels

Input Type:Sink input conforming to EN61131‑2 Type1

Rated Voltage:24 VDC(-15% / +20%)

Per‑Channel Input Current:Typ 3.75 mA

Connection Mode:3‑wire connection,with local 24VDC and GND sensor power supply

Counter Function:4 counter channels,max 1kHz counting frequency

Input Filter:Hardware filter ≤100µs;software filter adjustable 0‑25ms in 0.2ms step

Isolation:500 Veff galvanic isolation between input channel and system bus

Power Consumption:0.14 W(bus),0.59 W(internal I/O circuit)

Installation:Install on X20BM11 bus base module,X20TB12 terminal block ordered separately

Indicator:Per‑channel I/O status LED,module operation and fault diagnostic LED

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20DI4371 digital input module collects on‑site sensor switching signals for X20 control system. 3‑wire wiring provides local sensor power output,simplify field wiring work. Built‑in counter function realizes low‑frequency pulse acquisition without additional hardware. Adjustable software input filter suppresses field interference signals,galvanic isolation improves system anti‑interference capability. Channel‑level LED and software diagnosis realize fast fault positioning,support local X20 I/O and distributed X2X‑Link remote stations.

Product Brief

X20DI4371 belongs to B&R X20 I/O system family,it is 4‑channel sink digital input module with counter function for general automation equipment. X20BM11 bus module and X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify input signal type and counter frequency requirement. ESD anti‑static protection shall be followed during installation
