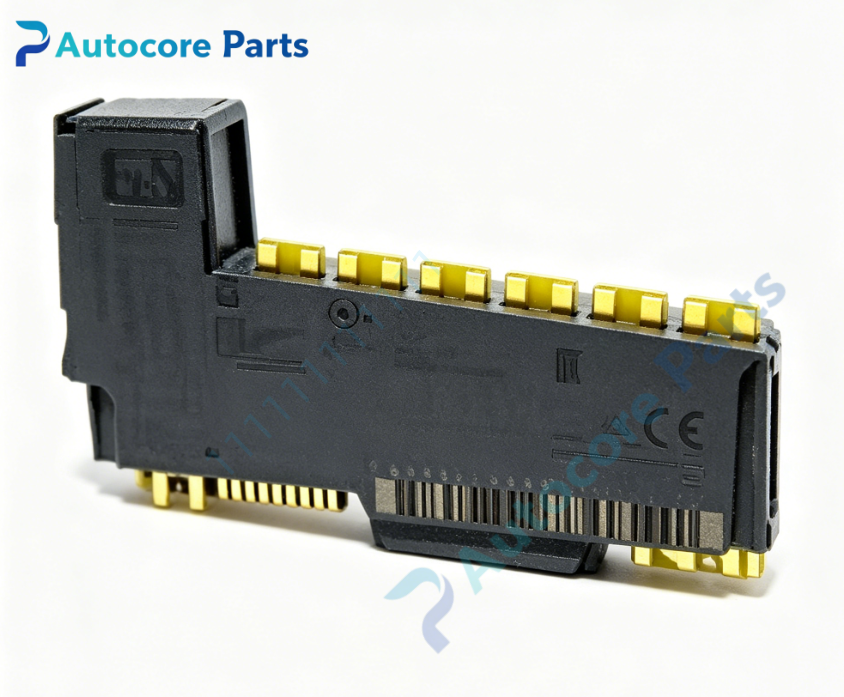

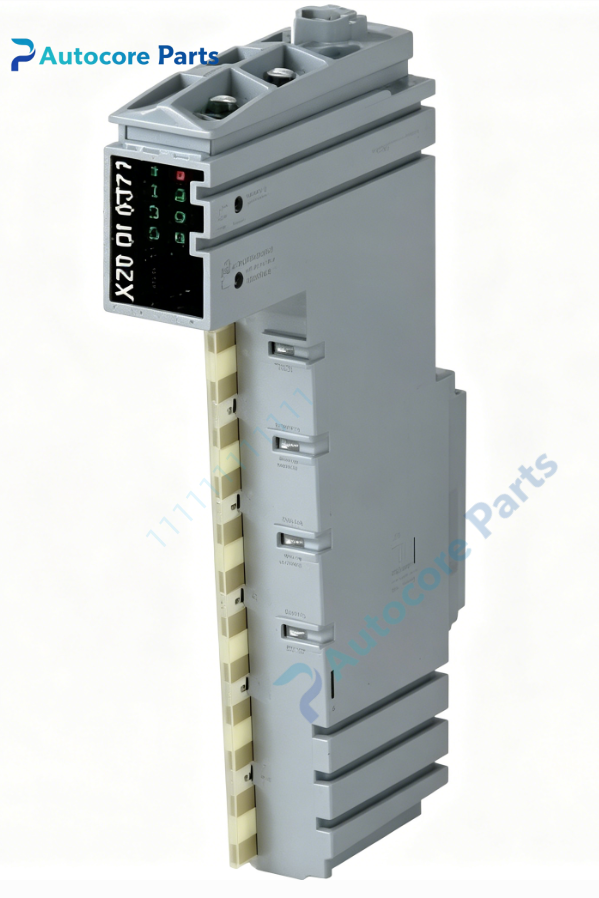

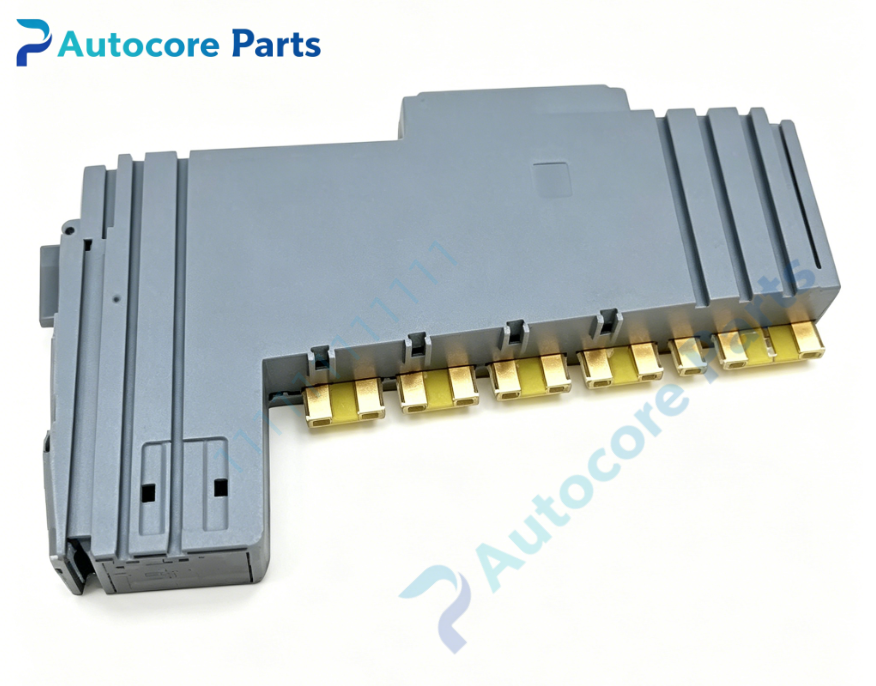

B&R X20DI6371 Digital Input Module

Technical Specifications

Model:X20DI6371

Brand:B&R

Product Type:X20 system digital input module

Applicable System:B&R X20 PLC system,collect proximity switches,photoelectric sensors and other digital switching signals

Input Channel:6 channels

Input Type:Sink input conforming to EN61131‑2 Type1

Rated Voltage:24 VDC(-15% / +20%)

Per‑Channel Input Current:Typ 3.75 mA

Connection Mode:1‑wire or 2‑wire connection

Sensor Power Supply:24VDC output,max 0.5A total current,short‑circuit protection

Input Filter:Hardware filter ≤100µs;software filter adjustable 0‑25ms in 0.2ms step

Isolation:500 Veff galvanic isolation between input channel and system bus

Power Consumption:0.15 W(bus),0.88 W(internal I/O circuit)

Installation:Install on X20BM11 bus base module,X20TB06 or X20TB12 terminal block ordered separately

Indicator:Per‑channel I/O status LED,module operation and fault diagnostic LED

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20DI6371 digital input module acquires field sensor switching signals for X20 control system. Support 1‑wire and 2‑wire two wiring modes,on‑board short‑circuit‑proof sensor power supply simplifies field wiring. Adjustable software filter suppresses industrial interference signals,500Veff galvanic isolation improves system stability. Per‑channel LED and software diagnosis realize fast fault positioning,support local X20 I/O and distributed X2X‑Link remote stations.

Product Brief

X20DI6371 belongs to B&R X20 I/O system family,it is standard 6‑channel sink digital input module for general automation equipment. X20BM11 bus module and terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm wiring mode and signal type requirement. ESD anti‑static protection shall be followed during installation
