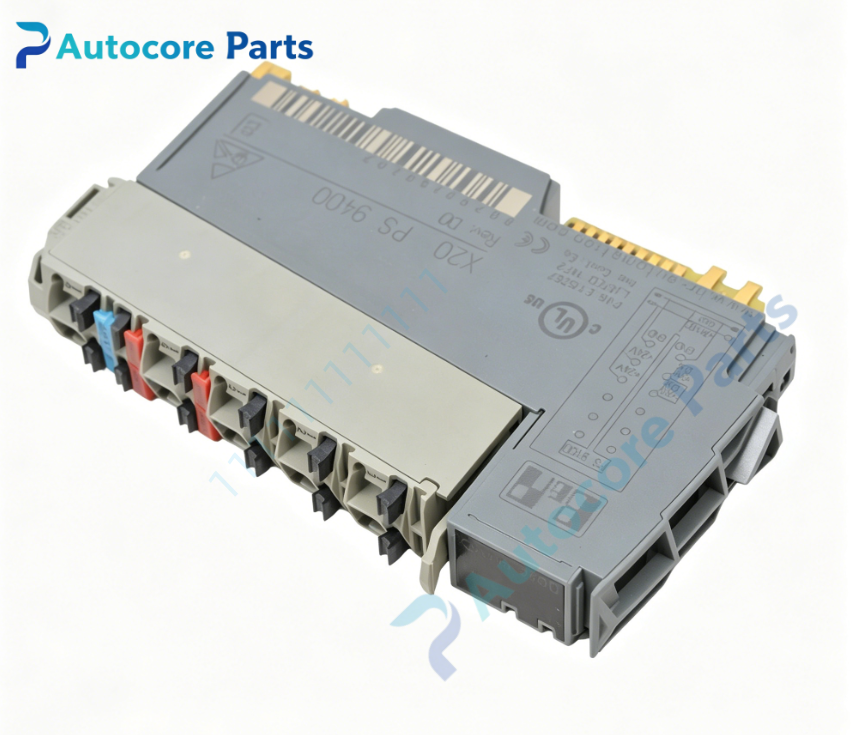

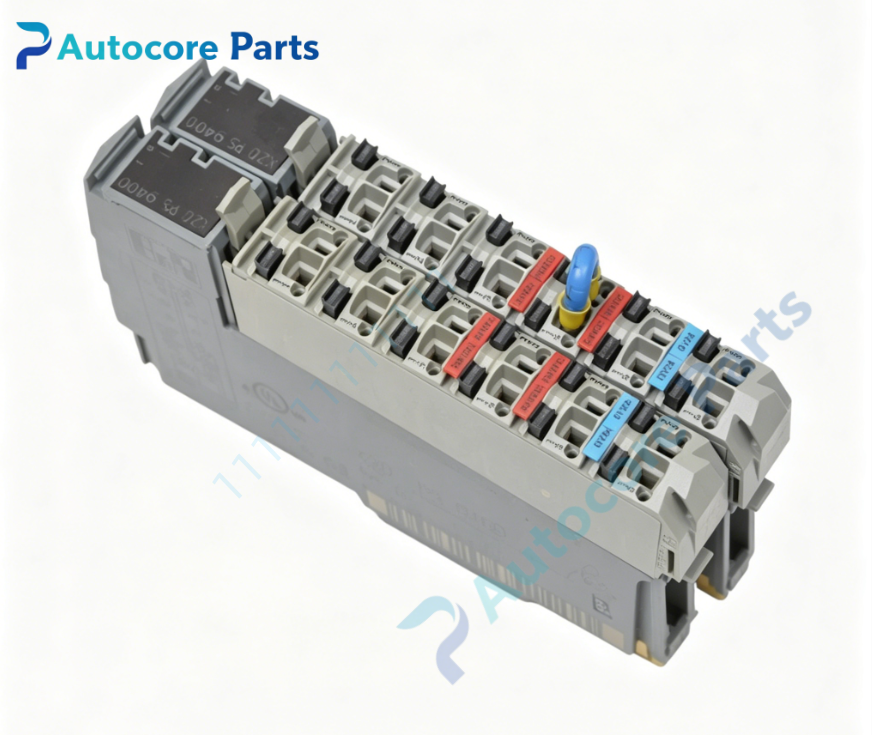

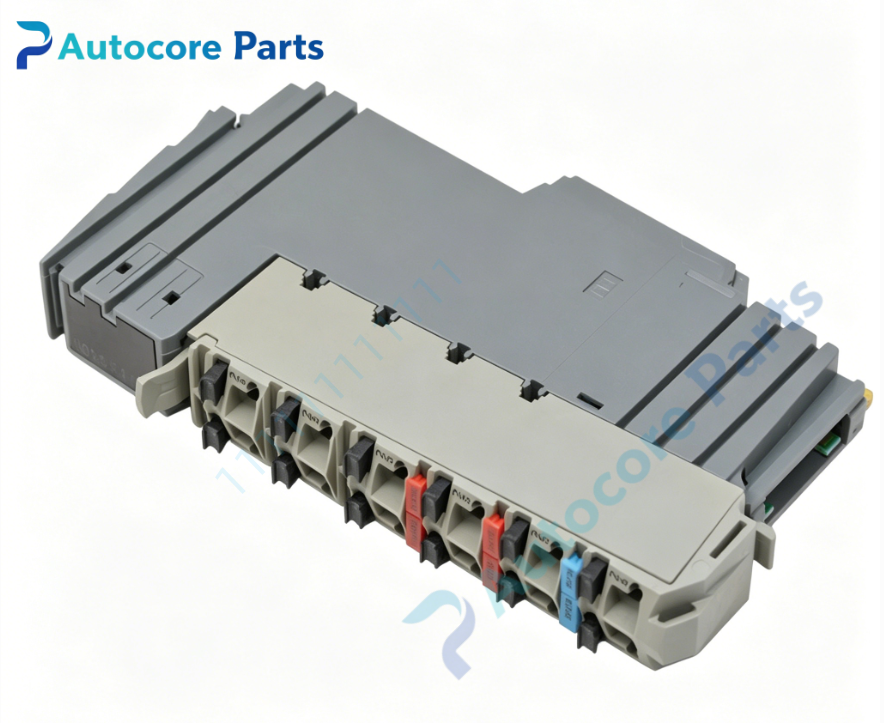

B&R X20PS9400 Bus Controller Power Supply Module

Technical Specifications

Model:X20PS9400

Brand:B&R

Input voltage:24VDC(-15% / +20%)

Max input current:0.7A

Nominal output power:7W for bus controller and X2X‑Link

Service interface:RS232,115.2kbit/s

Protection:reverse polarity protection,built‑in non‑replaceable fuse

Operation mode:Supports parallel connection for redundant power supply

Galvanic isolation:Galvanic isolation between bus controller/X2X‑Link supply and internal circuit

Power consumption:1.42W

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20PS9400 power supply module provides power for X20 bus controller,X2X‑Link bus and station internal I/O electronics. RS232 service interface supports local module diagnosis and parameter debugging. Parallel redundant operation improves system availability. Galvanic isolation suppresses ground‑loop interference,support local X20 station and distributed X2X‑Link remote stations deployment.

Product Brief

X20PS9400 belongs to B&R X20 I/O system family,coated variant X20cPS9400 is available for harsh environment. X20BB80/X20BB81 bus base and X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
