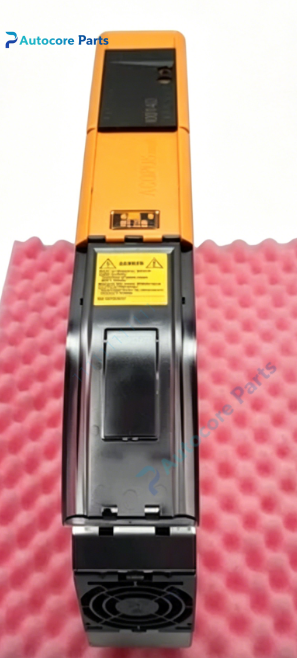

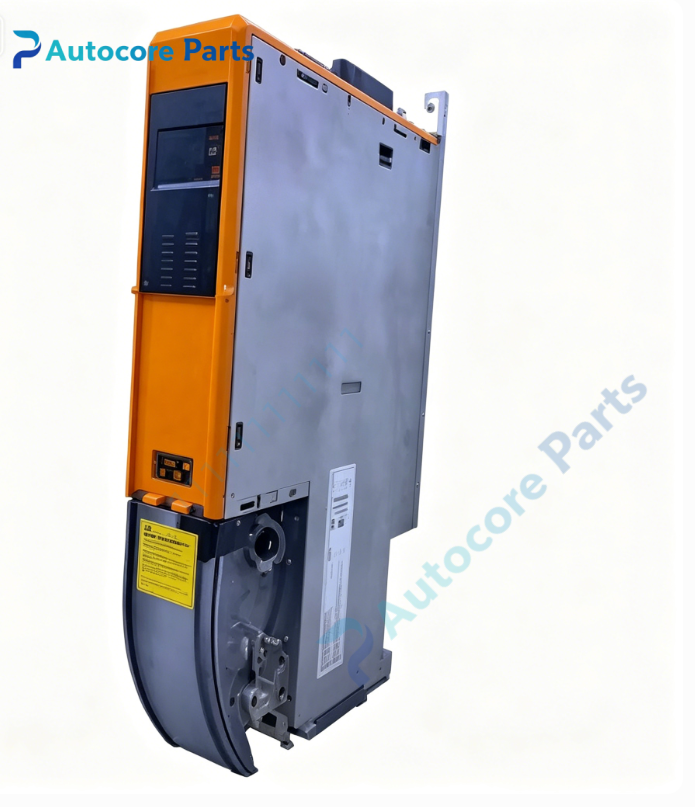

B&R 8BVI0014HCD0.000‑1 Inverter Module

Technical Specifications

Model:8BVI0014HCD0.000‑1

Brand:B&R

Product Type:ACOPOSmulti backplane‑mount dual‑axis servo inverter module

Applicable System:B&R ACOPOSmulti multi‑axis servo system,packaging machinery,automated handling equipment,small‑and‑medium multi‑axis motion‑control production lines adopting system backplane layout

DC‑bus:Nominal 750 VDC;DC‑bus capacitance 165 µF

Output Rating:2 independent servo axes,1.9 A continuous current per axis;support short‑time peak current output

Auxiliary Supply:24‑25 VDC auxiliary power input;max power consumption 16W plus slot peripheral and brake load power

Safety Function:Integrated STO Safe Torque‑Off functional safety;uncontrolled stop and safe stop functions built‑in

Expansion Hardware:2 internal slots for ACOPOSmulti plug‑in encoder / communication modules

Built‑in Interface:Motor holding brake output,motor temperature‑sensor input for each axis

Network Feature:Support DNA dynamic node allocation for fast system commissioning

Installation:Backplane plug‑in structure,natural air cooling;power derating required above 500 m altitude

Status Indication:Multi‑color LED indicators for ready status,running operation and system fault diagnosis

Weight:4.20 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃;power derating under high ambient temperature and high altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Dual‑axis backplane‑plug‑in inverter converts high‑voltage DC‑bus power into variable‑frequency three‑phase AC power to drive two servo motors independently. Integrated STO safety function meets machine safety requirements. Dual expansion slots support different encoder types and special communication interfaces. Reserved brake and temperature‑sensor interfaces simplify motor wiring. DNA dynamic node allocation reduces multi‑axis configuration workload. Backplane‑mount design realizes compact cabinet layout for ACOPOSmulti system.

Product Brief

8BVI0014HCD0.000‑1 is backplane‑mount dual‑axis small‑current inverter module of B&R ACOPOSmulti servo family. Compared with wall‑mount 8BVI0014HWD0.000‑1,this HC‑version adopts backplane plug‑in installation mode,matched with ACOPOSmulti system backplane for high‑density multi‑axis cabinet layout.

Two complete independent inverter channels are integrated inside one module,saves cabinet space for multi‑axis projects with low‑current servo motors. Two internal expansion slots can install resolver,EnDat and other encoder interface cards according to motor feedback type. STO hardware safety function guarantees safety response under emergency‑stop condition. LED status lights help field‑side quick fault diagnosis.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti multi‑axis motion‑control equipment. Before purchase,please confirm DC‑bus voltage,motor rated current,feedback expansion‑card and backplane compatibility. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block accessories sold separately
