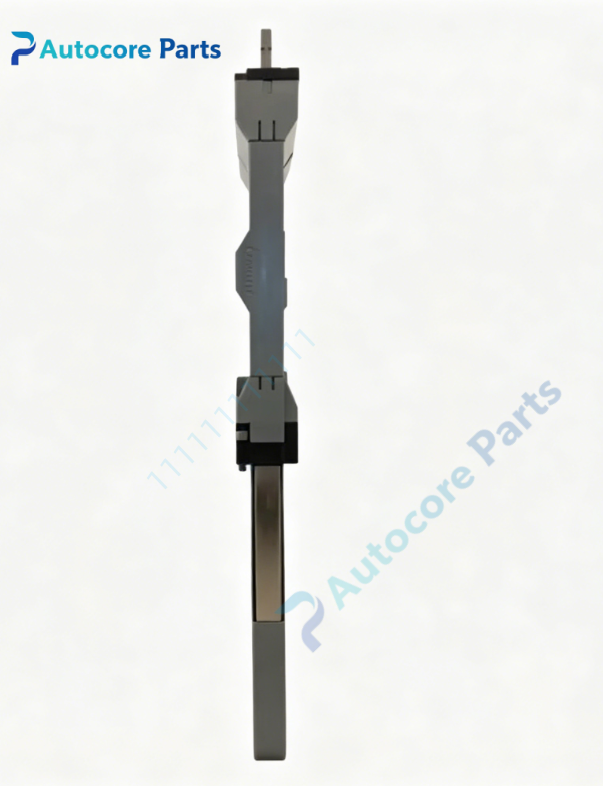

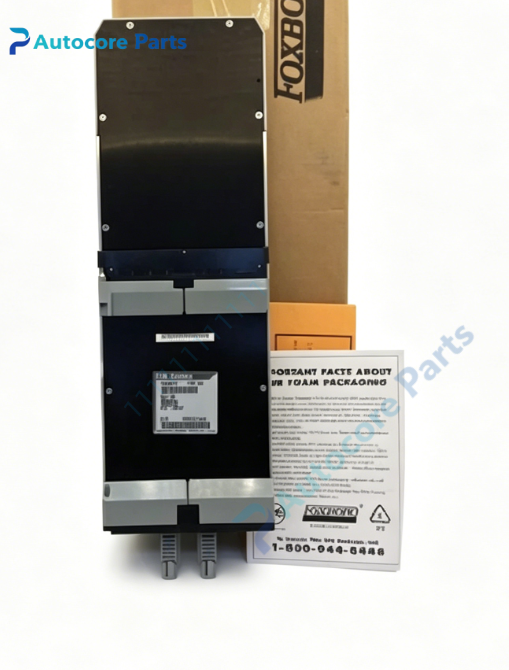

Foxboro FBM03 RTD Temperature Input Fieldbus Module

Technical Specifications

Model:FBM03

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:8‑channel isolated RTD input fieldbus module,collects platinum/nickel RTD temperature signals from field‑side resistance temperature sensors

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:8 galvanic isolated channels;supports 2‑wire,3‑wire,4‑wire RTD sensors,0‑320Ω measuring range

Circuit feature:Channel‑to‑channel galvanic isolation,high‑precision resistance‑to‑temperature conversion

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for module power and fieldbus communication status,sensor open‑circuit fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for signal terminals

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.99kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM03 RTD input module acquires high‑precision temperature signals from field RTD sensors for Foxboro I/A‑Series DCS system. Isolated‑channel design suppresses ground‑loop interference. Open‑circuit diagnosis rapidly identifies broken sensor wiring faults. Hot‑swap supports online module replacement,widely applied for tank,reactor and pipeline temperature monitoring loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM03 belongs to Foxboro I/A Series legacy DCS temperature‑input spare‑part family,obsolete original baseplate‑mount RTD acquisition module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
