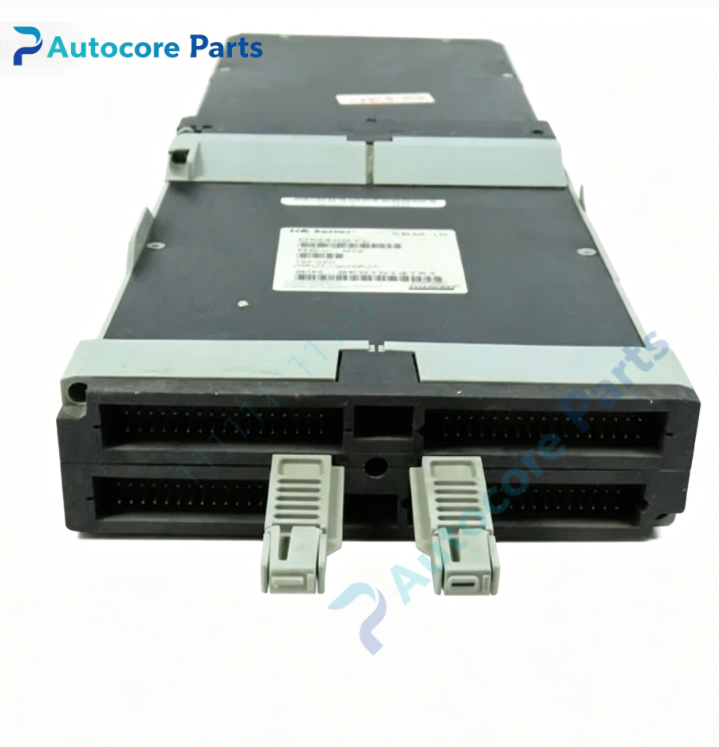

Foxboro FBM10 Mixed Discrete I/O Fieldbus Module

Technical Specifications

Model:FBM10

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:Mixed discrete I/O fieldbus module,8‑channel 120VAC discrete input acquires field switch status;8‑channel relay contact output drives field‑side actuators,supports FBM15 expansion module for I/O capacity extension

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

I/O channel:8 ×120VAC discrete input;8 × relay contact output

Circuit feature:Group‑wise galvanic isolation,relay contact over‑current protection

Feature:Support hot‑swap online replacement without subsystem power‑off,supports FBM15 expansion module connection

Diagnostic:Front‑panel multi‑color LED indicators for module power,communication status and channel fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for signal terminals

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.02kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM10 mixed discrete I/O module undertakes switch‑signal acquisition and logic output for Foxboro I/A‑Series DCS system. It collects 120VAC status signals from field limit switches and auxiliary contacts,and outputs relay contact signals to control solenoid valves and auxiliary relays. It can connect FBM15 expansion module to increase I/O quantity. Hot‑swap supports online module replacement,widely applied for pump,motor interlock‑control‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM10 belongs to Foxboro I/A Series legacy DCS mixed‑discrete‑I/O spare‑part family,obsolete original baseplate‑mount mixed discrete I/O component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
