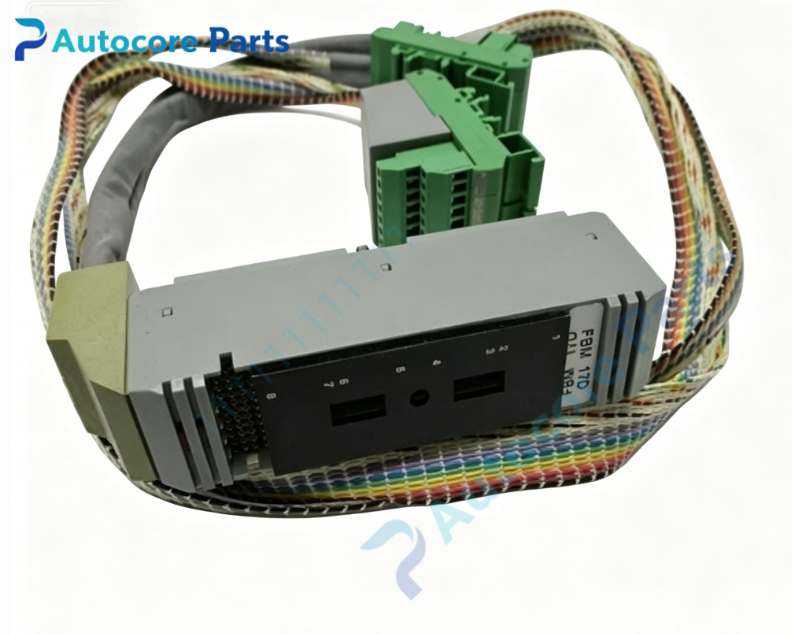

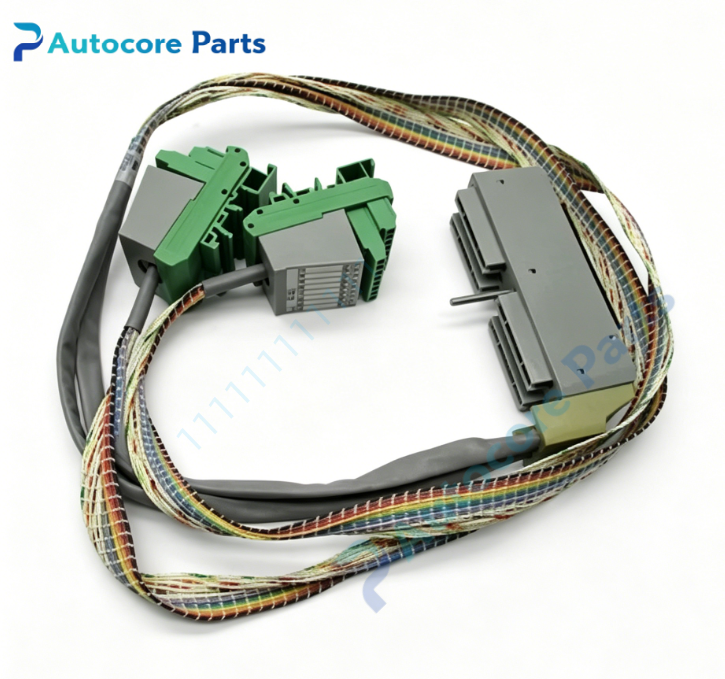

Foxboro FBM17D Mixed Analog‑Discrete I/O Fieldbus Module

Technical Specifications

Model:FBM17D

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:Mixed analog‑discrete I/O fieldbus module,4‑channel 0‑10V analog input collects transmitter signals;4‑channel contact‑sense discrete input detects dry‑contact switch status;2‑channel 10mA analog output drives field‑side actuators

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

I/O channel:4 × 0‑10mA/0‑10V analog input;4 × contact‑sense discrete input;2 × 10mA analog output

Circuit feature:High‑precision A/D‑D/A conversion,group‑wise galvanic isolation,per‑channel over‑current protection

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status;sensor open‑circuit & output fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM17D mixed I/O module integrates analog signal acquisition,dry‑contact switch‑status monitoring and analog control output for Foxboro I/A‑Series DCS system. Group‑isolated design improves anti‑interference performance inside instrument cabinet. Open‑circuit fault detection helps locate field‑side wiring faults rapidly. Hot‑swap supports online module replacement without system shutdown,widely applied for multi‑parameter measurement‑and‑control‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM17D belongs to Foxboro I/A Series legacy DCS mixed‑I/O spare‑part family,obsolete original baseplate‑mount mixed analog‑discrete‑I/O module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
