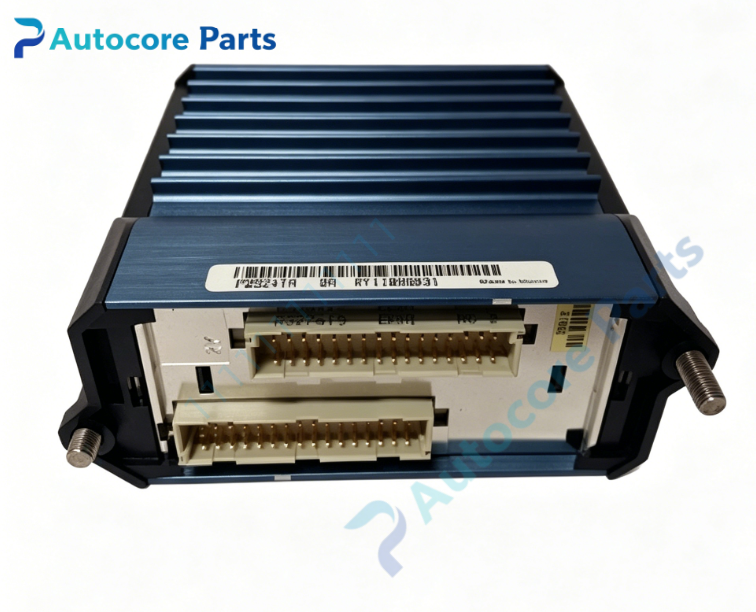

Foxboro FBM201E HART‑Capable 0‑20mA Analog Input Fieldbus Module

Technical Specifications

Model:FBM201E

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:8‑channel galvanically isolated analog input fieldbus module,acquires 0‑20mA DC current signals from HART‑compatible smart pressure,level and flow transmitters,sigma‑delta A/D conversion with HART pass‑through channel communication,configurable integration time and rate‑of‑change limit parameters

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate and matching HART termination assembly

Input channel:8‑channel 0‑20mA analog input,channel‑to‑channel galvanic isolation,HART signal pass‑through support

Circuit feature:Sigma‑delta high‑precision A/D conversion,per‑channel over‑voltage protection,sensor open‑circuit detection,HART signal coupling circuit

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,HART pass‑through for smart transmitter configuration

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status

Power supply:24VDC via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +85℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM201E HART‑capable analog input module converts smart‑transmitter 0‑20mA current signals to digital process data for Foxboro I/A‑Series DCS system. It supports HART pass‑through communication for remote configuration and parameter adjustment of field smart transmitters. Channel‑by‑channel galvanic isolation effectively suppresses ground‑loop interference inside instrument cabinet. Sigma‑delta conversion guarantees high‑accuracy measurement. Open‑circuit detection quickly identifies broken sensor‑wiring faults. Hot‑swap supports online module replacement without system shutdown,widely applied for pressure,tank‑level and flow‑measurement‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM201E belongs to Foxboro I/A Series legacy DCS HART‑analog‑input spare‑part family,obsolete original baseplate‑mount HART‑capable analog‑input module component. Must match with corresponding FBM baseplate and HART‑compatible termination assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
