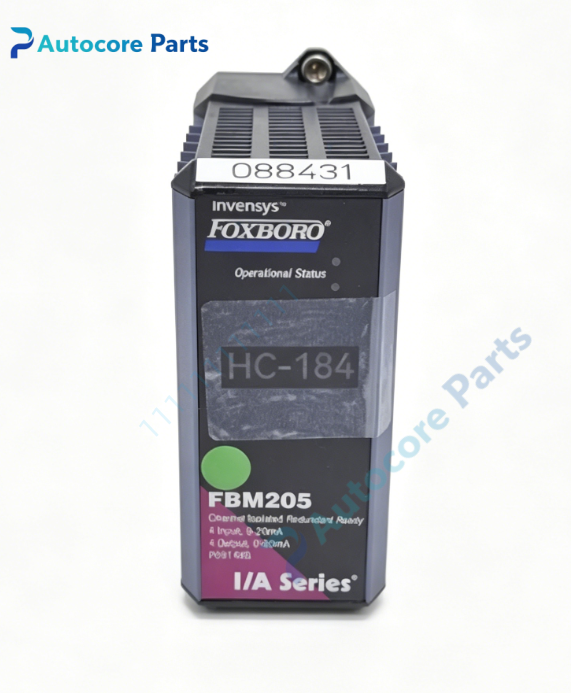

Foxboro FBM205 Redundant‑Ready 0‑20mA Mixed Analog I/O Fieldbus Module

Technical Specifications

Model:FBM205

Brand:Foxboro

System compatibility:I/A Series DCS FBM200 series fieldbus I/O subsystem,works with FCP/FCM controller,matched with P0916AJ termination assembly and P0916DK cable assembly

Function:Redundant‑ready mixed analog‑input‑output fieldbus module,4‑channel 0‑20.4mA analog input acquires pressure,level,flow transmitter signals,4‑channel 0‑20.4mA analog output provides control signals to field actuators,sigma‑delta A/D‑D/A conversion,supports redundant pairing on adjacent baseplate slots,configurable fail‑safe output action,configurable integration time and rate‑of‑change limit parameters

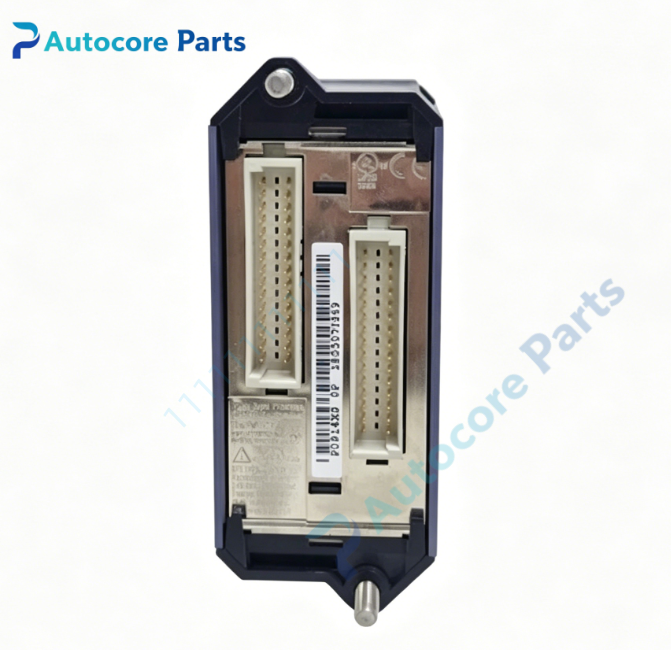

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate,P0916DK pre‑terminated cable and P0916AJ field termination assembly

I/O channel:4 × 0‑20.4mA analog input,4 × 0‑20.4mA analog output,channel‑to‑channel galvanic isolation

Circuit feature:Sigma‑delta high‑precision A/D‑D/A conversion,per‑channel over‑voltage over‑current protection,sensor open‑circuit detection,configurable fail‑safe output state

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,redundant pairing supported on adjacent baseplate positions

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status

Power supply:24VDC via FBM baseplate backplane,max 10W power consumption for redundant module pair

Protection:Transient surge absorption for each signal channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

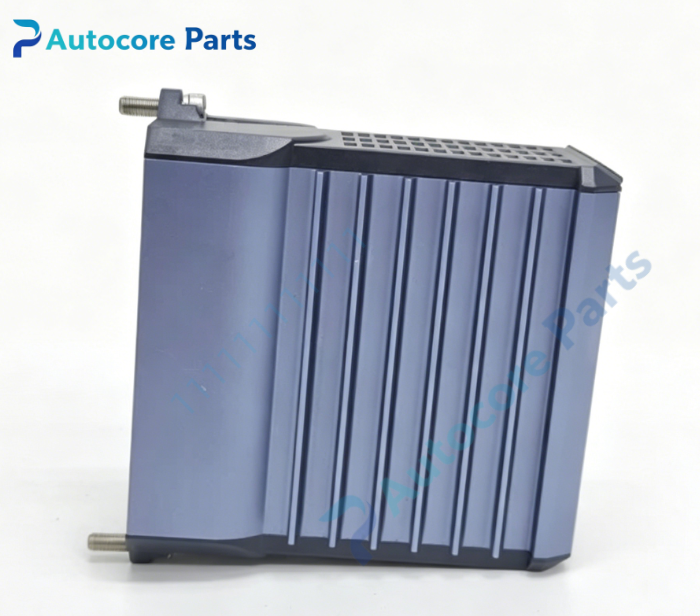

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +85℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

Built‑in function

FBM205 redundant‑ready mixed I/O module converts field‑transmitter 0‑20mA current signals to digital process data and converts DCS control‑commands to analog output‑current for field actuators for Foxboro I/A‑Series DCS system. It supports redundant hot‑standby pairing for high‑availability process‑control loops. Channel‑by‑channel galvanic isolation effectively suppresses ground‑loop interference inside instrument cabinet. Sigma‑delta conversion guarantees high‑accuracy measurement and output control. Configurable fail‑safe action ensures safe actuator state upon module or fieldbus fault. Open‑circuit detection quickly identifies broken field‑wiring faults. Hot‑swap supports online module replacement without system shutdown,widely applied for pressure,tank‑level and flow‑measurement‑control‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM205 belongs to Foxboro I/A Series legacy DCS redundant‑ready mixed‑analog‑I/O spare‑part family,obsolete original baseplate‑mount 4AI+4AO analog‑input‑output module component. Must match with corresponding FBM baseplate,P0916DK cable and P0916AJ termination assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
