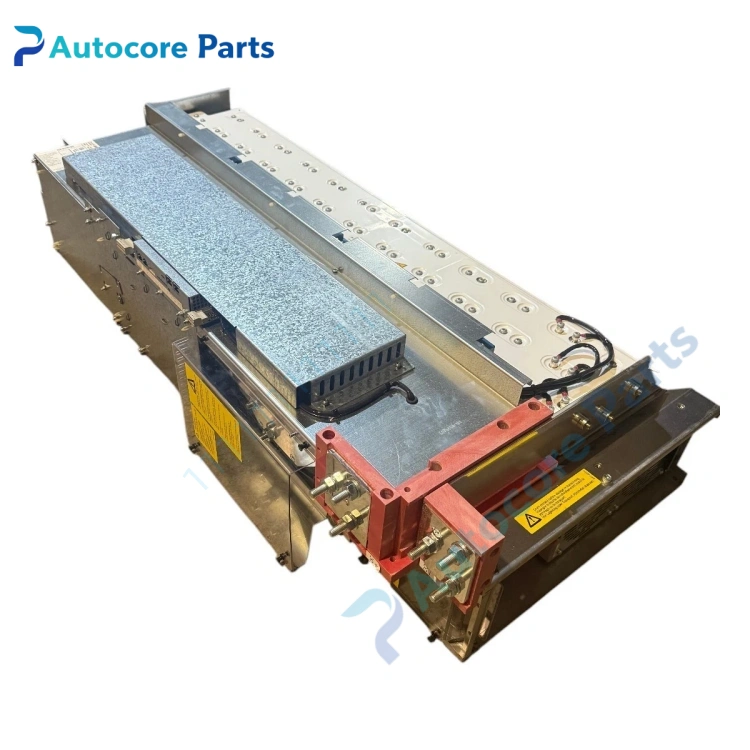

GE AVID 57941101 Liquid Cooled Power Module

Feature & Principle

It adopts liquid cooling heat dissipation structure and Delta inverter topology. It converts DC bus voltage into adjustable three-phase AC output under the control of PECe controller. High power density design, strong anti-vibration performance, suitable for marine and heavy industry occasions with strict heat dissipation requirements. Multiple modules can be connected in parallel to expand capacity.

Specifications

Model: 57941101 Brand: GE AVID Series: MV3000 Cooling method: Liquid cooling Topology: Delta inverter Matching controller: PECe Application: Marine propulsion, large fan, compressor, wind converter Protection grade: Industrial marine grade Certification: Marine certification, CE

Components & Diagnostics

IGBT power assembly, liquid cooling flow channel, drive board, voltage and current sampling circuit, status indicator. Common faults: cooling circuit blockage, IGBT breakdown, drive signal loss, sampling drift, liquid leakage.

Product Brief

57941101 liquid cooled power module, GE AVID medium voltage drive spare widely used for ship propulsion system and heavy industrial frequency conversion cabinet maintenance and replacement.
