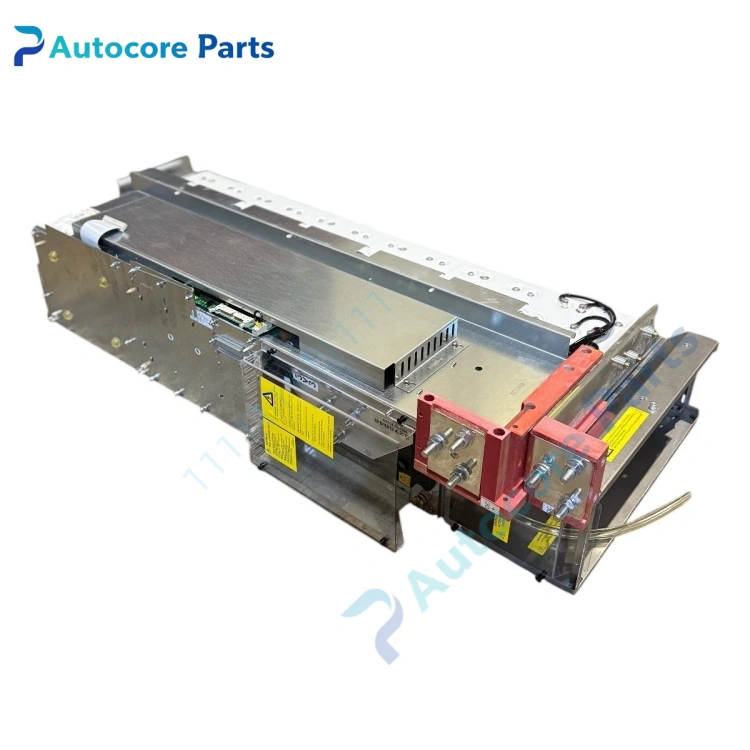

GE AVID MVDL1000-47941001 MV3000 Delta Power Module

Feature & Principle

It adopts Delta three-phase inverter topology and liquid cooling heat dissipation, matched with PECe controller. It converts DC bus into adjustable AC output to drive large motors. Multiple modules can be paralleled for capacity expansion. Liquid cooling design achieves high power density and low temperature rise, suitable for vibration and high-load marine and heavy industry environments. Built-in overcurrent, overvoltage and temperature protection.

Specifications

Model: MVDL1000-47941001 Brand: GE AVID Series: MV3000 Continuous current: 733 A DC bus: 1200 VDC AC rated voltage: 690 VAC Power device: SKiiP-3V3 D+ IGBT Cooling medium: Water/glycol liquid cooling Protection grade: IP00 Approx weight: 25 kg Application: Marine propulsion, large compressor, fan Certification: CE, UL508C

Components & Diagnostics

IGBT power stack, liquid cooling flow channel, gate drive board, voltage/current sampling board, status LED, cooling interface. Common faults: coolant leakage, flow blockage, IGBT damage, drive signal loss, sampling drift.

Product Brief

MVDL1000-47941001 liquid cooled delta module, GE MV3000 medium voltage drive spare widely used for ship propulsion and heavy industrial frequency conversion cabinet overhaul and replacement.
