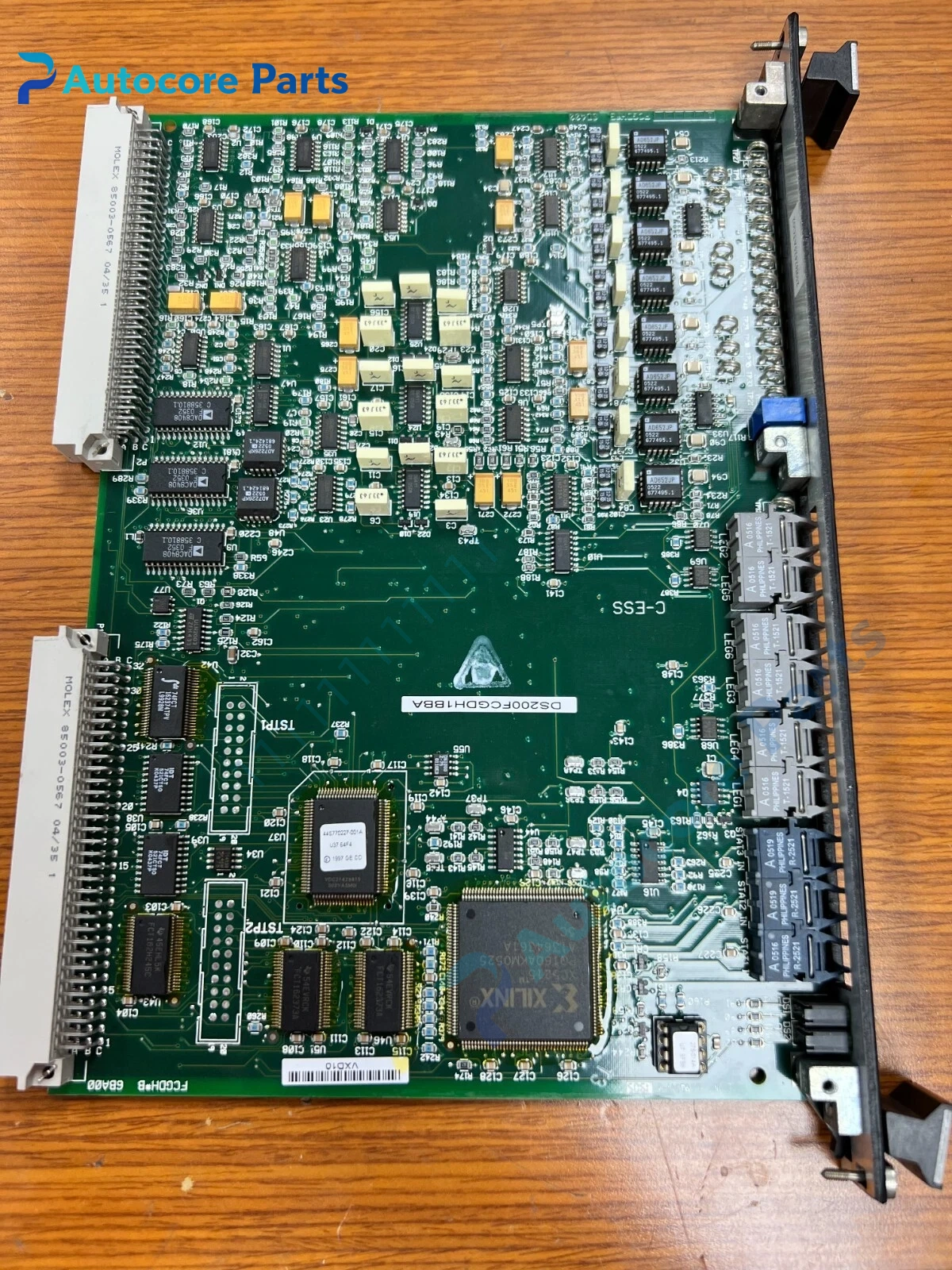

GE DS200FCGDH1BBA Gate Distribution Status Board Unit

Module Feature

DS200FCGDH1BBA belongs to GE LCI drive series. It is a GE 6U VME standard gate distribution and status printed circuit board. The board is designed for 6-pulse phase controlled bridge power conversion system, distributing gate trigger pulse signals to power thyristor components. It collects real-time running status and fault feedback signals from power units. Multi-layer industrial PCB with SMD components on both sides, strong anti-vibration and anti-interference capability, suitable for long-term stable operation in large industrial drive cabinets. Widely used in power plant and heavy industry large synchronous motor LCI variable frequency drive control system.

Working principle

The GE DS200FCGDH1BBA board receives control pulse command from main control board. Internal signal conditioning and isolation circuit distribute gate trigger signals to each thyristor. Meanwhile, the board collects feedback status signals of power devices. When power component abnormal state is detected, fault signal will be sent back to main controller, then trigger protection action to shut down drive output and avoid equipment damage.

Onboard components

Main control PCB, pulse distribution logic chip, signal isolation optocoupler, status signal sampling circuit, indicator LED array, backplane VME bus connector, terminal pin header group, power regulation circuit.

LED indicators

Power LED, run LED, gate pulse status LED, fault alarm LED.

Hardware self-diagnosis

Pulse output circuit failure, signal input open/short circuit, backplane communication fault, onboard power abnormality detection, records fault code and event log.

Programming software

GE dedicated drive configuration software for signal monitoring, fault diagnosis and firmware update.

Electrical & Process Parameters

Model:DS200FCGDH1BBA Brand:GE Device type:Gate Distribution and Status Board Power supply:Supplied by VME backplane Function:Thyristor gate pulse distribution, power unit status feedback Communication:VME backplane bus Protection:Overvoltage, signal fault, hardware self diagnostic protection

Mechanical & Structure

Mounting:6U VME plug-in rack mount inside drive cabinet Protection class:IP20 Housing:Bare PCB board with metal front panel

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE original LCI drive gate distribution and status circuit board

Installation

Follow strict ESD protection procedure before operation. Cut off all power of drive rack before replacement. Insert GE DS200FCGDH1BBA board into matched VME slot, lock front panel screws. Check all pin connectors fully seated. After assembly, perform signal test before power-on commissioning.

Interface

VME backplane bus connector, gate pulse output pin headers, status feedback signal terminals.

Diagnostic

No gate pulse output: board power fault or pulse circuit damage. Missing device status feedback: feedback cable open circuit or sampling circuit failure. VME communication fail: backplane contact poor or board hardware fault.

Product Brief

GE DS200FCGDH1BBA LCI series 6U VME gate distribution and status board, responsible for thyristor trigger pulse distribution and power unit status monitoring, plug-in rack mount for GE large LCI drive system.
