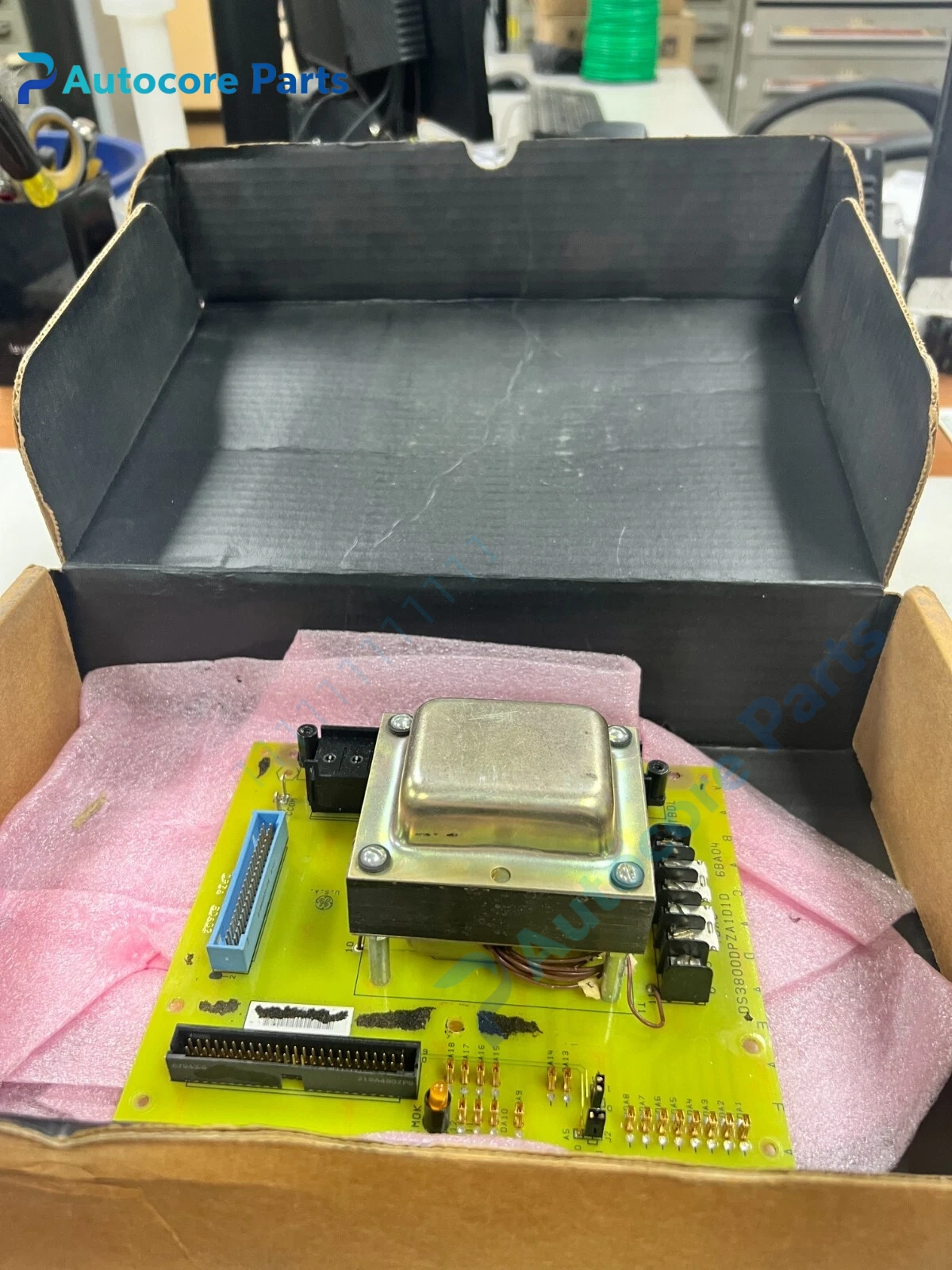

GE DS3800DPZA1D1D Turbine Control PCB Unit

Module Feature

DS3800DPZA1D1D is a GE industrial control printed circuit board. It belongs to GE Speedtronic Mark IV gas turbine control system. This card executes turbine logic processing, analog signal sampling and digital signal interlock judgment. It adopts industrial grade electronic components with anti-shock and anti-electromagnetic interference performance, adapting to long-term continuous operation in power plant turbine control cabinet. It communicates with other rack boards through backplane bus, monitors turbine operating parameters and outputs control instructions. Widely used in gas and steam turbine monitoring, sequence control and protection systems.

Working principle

The GE DS3800DPZA1D1D board collects analog and digital field signals via backplane. The onboard processor runs turbine control logic program, compares measured parameters with preset setpoints. When abnormal working condition is detected, it outputs alarm or trip signal to protect gas turbine. Real-time operating data can be transmitted to upper monitoring system through internal rack bus.

Onboard components

Main control logic chip, multi-channel A/D conversion chip, signal conditioning circuit, digital input/output circuit, onboard flash memory, backplane bus connector, status indicator LED group, power management circuit.

LED indicators

Power LED, run LED, fault alarm LED, communication status LED.

Hardware self-diagnosis

Power supply abnormality, signal sampling failure, backplane communication error, memory fault detection, records fault codes and historical event logs.

Programming software

GE dedicated turbine configuration software for turbine logic parameter setting, signal real-time monitoring, parameter backup and firmware update.

Electrical & Process Parameters

Model:DS3800DPZA1D1D Brand:GE Device type:Turbine Control PCB Board Power supply:Supplied by Mark IV rack backplane Input:Analog & digital field signals Output:Logic control and trip signals Communication:Rack internal backplane bus Protection:Hardware fault self-check, overvoltage and undervoltage protection

Mechanical & Structure

Mounting:Plug-in installation inside GE Mark IV turbine rack Protection class:IP20 Housing:PCB with metal front panel, fixed by screws

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE original Speedtronic Mark IV turbine control circuit board

Installation

Follow strict ESD protection procedure before handling. Cut off rack power supply before replacement. Insert GE DS3800DPZA1D1D board into the designated rack slot, tighten front panel fixing screws. Check backplane connector contact condition, verify project configuration before power-on commissioning.

Interface

Backplane bus connector, analog signal sampling interface, digital I/O terminal connector.

Diagnostic

Board no boot: backplane power supply failure. Signal sampling abnormal: signal line loose or sampling component aging. Communication timeout: backplane connector pin damage or bus fault.

Product Brief

GE DS3800DPZA1D1D Speedtronic Mark IV gas turbine control printed circuit board, plug-in rack mount, responsible for turbine signal sampling and logic control, used in power plant turbine control system.
