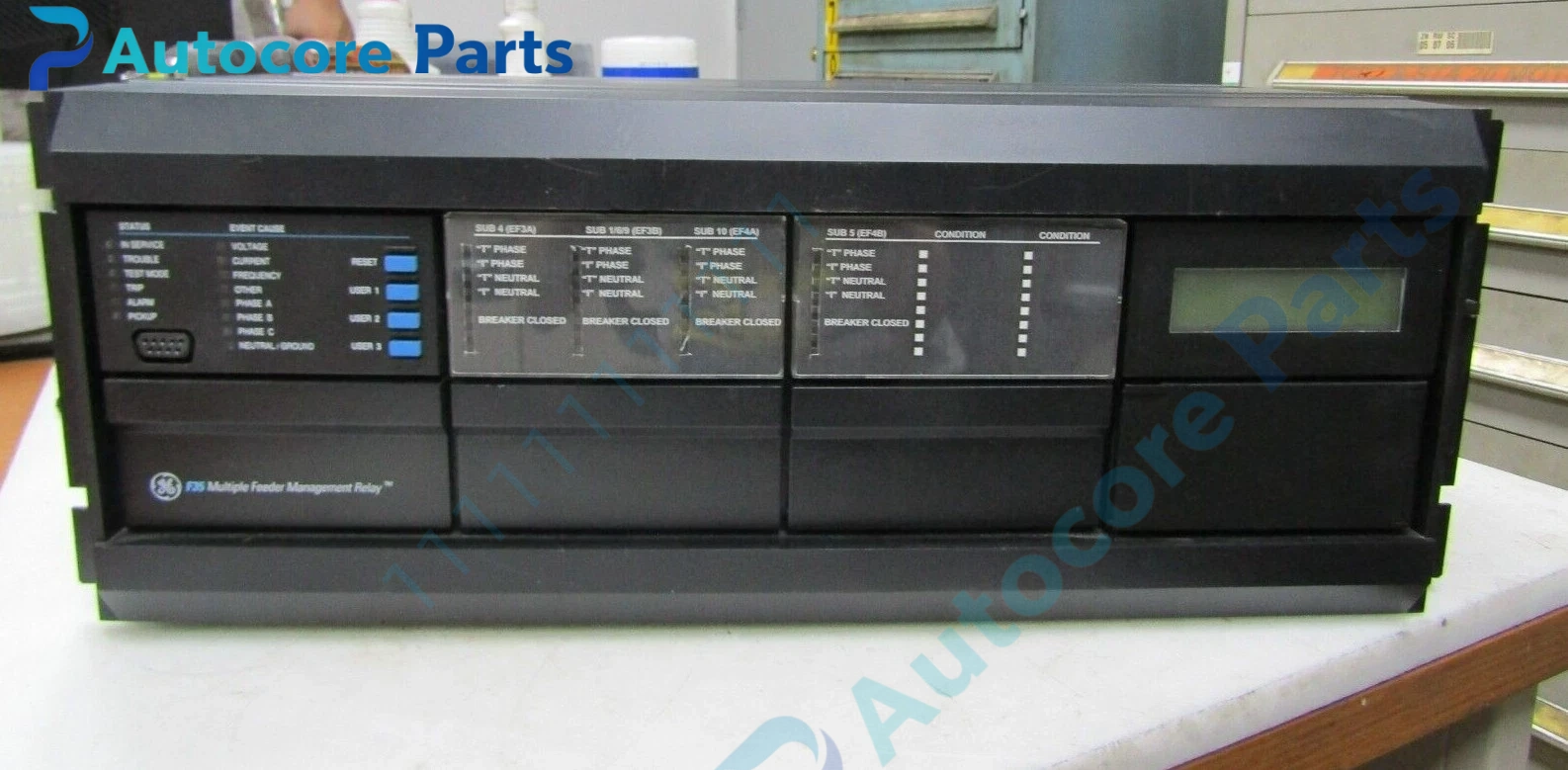

GE F35C00HCHF8CH6PM8CP6PU8AWXX Feeder Protection Relay Unit

Module Feature

F35C00HCHF8CH6PM8CP6PU8AWXX belongs to GE Multilin F35 series. It is a multifunctional feeder protection relay for low and medium voltage distribution feeders. The GE F35 relay integrates protection functions, electrical energy metering, event recording and fault oscillography. It supports overcurrent, earth fault, negative sequence overcurrent, voltage protection and breaker control. It has multiple digital inputs and relay outputs for status acquisition and trip control. Equipped with Ethernet and serial communication ports to connect SCADA system. Widely applied in power plant, petrochemical and water treatment distribution switchgear for feeder protection and real-time monitoring.

Working principle

The GE F35 relay samples current and voltage signals from current transformers and voltage transformers continuously. Internal CPU executes protection algorithms, compares measured values with setting thresholds. When fault condition is detected, it triggers trip output to open circuit breaker and record fault waveform and event timestamp. It uploads voltage, current, power and alarm information to upper monitoring system through communication channel.

Onboard components

Main control CPU, analog sampling circuit, flash memory, event recording chip, Ethernet communication module, relay output group, status indicator LED, power management circuit.

LED indicators

Power LED, run LED, trip LED, alarm LED, communication status LED.

Hardware self-diagnosis

Power supply abnormality, analog sampling failure, memory error, communication timeout, internal hardware fault detection, records fault codes and fault oscillography data.

Programming software

GE EnerVista configuration software for relay setting, screen configuration, fault waveform viewing, parameter backup and firmware upgrade.

Electrical & Process Parameters

Model:F35C00HCHF8CH6PM8CP6PU8AWXX Brand:GE Device type:Feeder Protection Relay Power supply:85-264VAC / 88-300VDC Input:CT / VT analog signal Output:Dry contact trip & alarm relay Communication:Ethernet, RS485 Protection:Overcurrent, earth fault, undervoltage, overvoltage, breaker failure protection

Mechanical & Structure

Mounting:Panel cutout mount on switchgear door Protection class:IP65 (front panel) Housing:Metal front frame and plastic rear enclosure

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE Multilin original F35 series feeder protection relay

Installation

Follow lockout-tagout safety procedure before handling. Cut off control power and CT/VT circuit power. Embed GE F35 relay into cabinet panel cutout and fasten mounting clips. Wire CT, VT, power supply and trip signal terminals. Download protection setting file and test protection logic before power on.

Interface

Control power terminals, CT/VT analog input terminals, trip/alarm relay terminals, Ethernet and serial communication ports.

Diagnostic

Relay no power: control power supply loss or internal power circuit failure. Protection false alarm: CT wiring reverse or sampling circuit fault. Communication offline: wrong IP address or cable damage.

Product Brief

GE F35C00HCHF8CH6PM8CP6PU8AWXX Multilin F35 series multifunction feeder protection relay, panel mount, integrates protection, metering and fault oscillography, used for industrial power distribution feeder protection.
