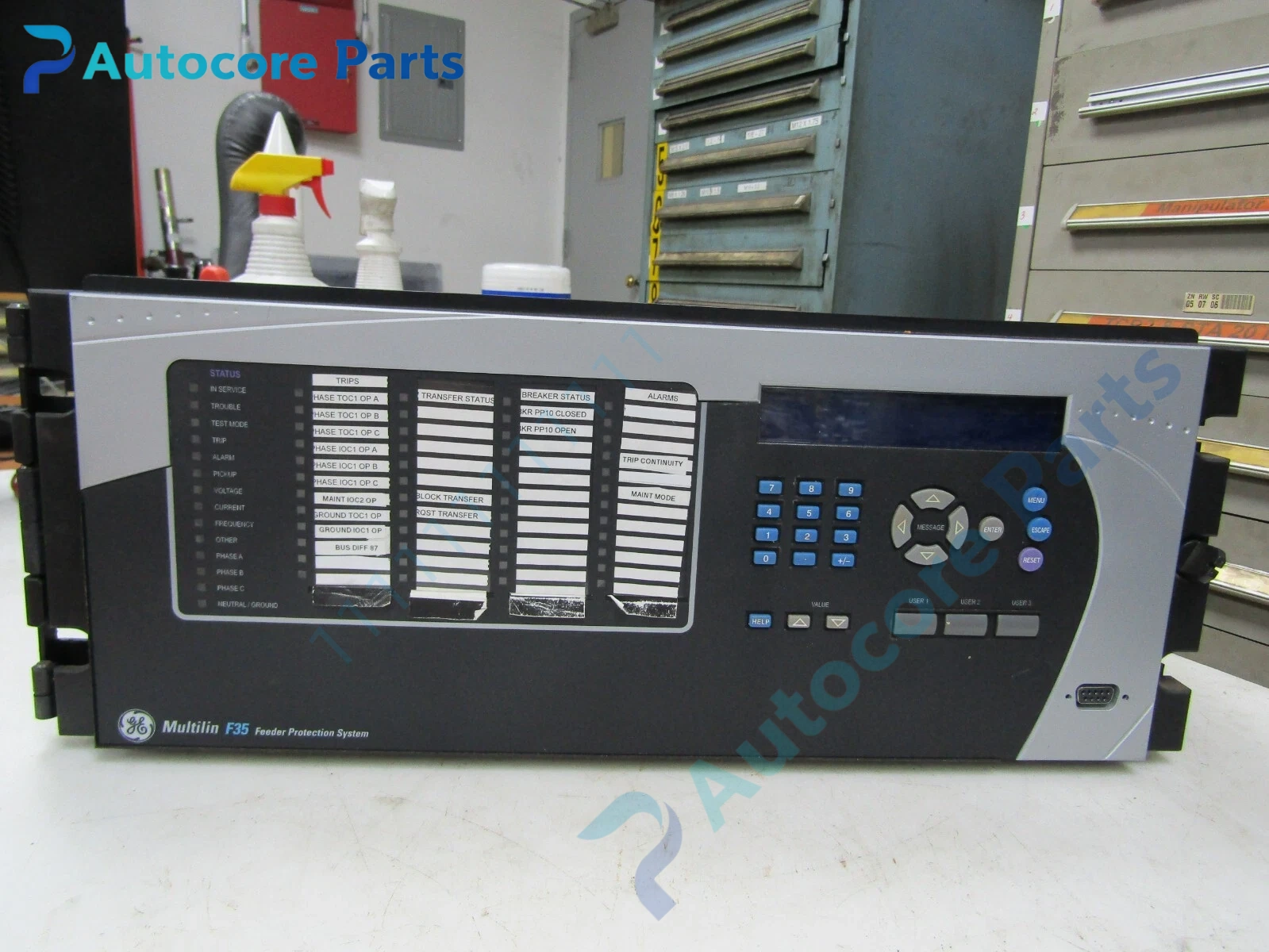

GE F35G00HKHF8LH6PMXXPXXUXXW7A Feeder Protection Relay Unit

Module Feature

F35G00HKHF8LH6PMXXPXXUXXW7A belongs to GE Multilin F35 series. It is a multifunctional feeder protection relay for medium and low voltage power distribution feeders. This GE relay combines protective functions, power metering, sequence of event logging and fault oscillography. It supports overcurrent protection, earth fault protection, negative sequence overcurrent, overvoltage, undervoltage and circuit breaker control. Multiple digital inputs and relay outputs are available to collect field status and output trip/alarm signals. It supports Ethernet and serial communication interfaces to communicate with PLC, HMI and SCADA systems. Widely used in power plants, petrochemical plants and water treatment switchgear cabinets for feeder protection and real-time status monitoring.

Working principle

The GE F35 relay continuously samples current and voltage signals from CT and VT. The internal CPU runs protection algorithms and compares measured values with preset setting thresholds. Once a fault condition is detected, it activates trip relay to open the circuit breaker, meanwhile recording fault waveform, fault value and time stamp. Real-time electrical parameters and alarm messages are transmitted to upper monitoring system via communication ports.

Onboard components

Main control CPU, analog sampling circuit, flash memory chip, event and waveform storage chip, Ethernet communication transceiver, serial communication chip, relay output group, status indicator LED, power management circuit.

LED indicators

Power LED, run LED, trip LED, alarm LED, communication status LED.

Hardware self-diagnosis

Power supply abnormality, analog sampling failure, memory error, communication timeout, internal hardware fault detection, records fault codes and oscillography files.

Programming software

GE EnerVista configuration software for relay parameter setting, project download, fault waveform analysis, parameter backup and firmware upgrade.

Electrical & Process Parameters

Model:F35G00HKHF8LH6PMXXPXXUXXW7A Brand:GE Multilin Device type:Multifunction Feeder Protection Relay Power supply:85~264VAC / 88~300VDC Input:CT / VT analog signal Output:Dry contact trip and alarm relay Communication:Ethernet, RS485 Protection:Overcurrent, earth fault, overvoltage, undervoltage, breaker failure protection

Mechanical & Structure

Mounting:Panel cutout mount on switchgear door Protection class:IP65 (front panel) Housing:Aluminum front frame and plastic rear enclosure

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE Multilin original F35 series feeder protection relay for power distribution system

Installation

Follow lockout-tagout safety procedure before operation. Cut off control power and isolate CT/VT circuits. Embed GE F35 relay into cabinet panel cutout and fasten mounting clips. Wire CT, VT, control power, trip and communication terminals. Download protection setting group and test logic before power commissioning.

Interface

Control power terminals, CT/VT analog input terminals, trip/alarm relay terminals, Ethernet port, serial communication port.

Diagnostic

No power indication: control power missing or internal power circuit failure. False protection trigger: CT polarity reversed or sampling circuit abnormal. Communication disconnected: wrong network parameters or damaged communication cable.

Product Brief

GE F35G00HKHF8LH6PMXXPXXUXXW7A Multilin F35 series multifunction feeder protection relay, panel cutout mount, equipped with protection, metering and fault recording functions, applied for medium and low voltage distribution feeder protection.
