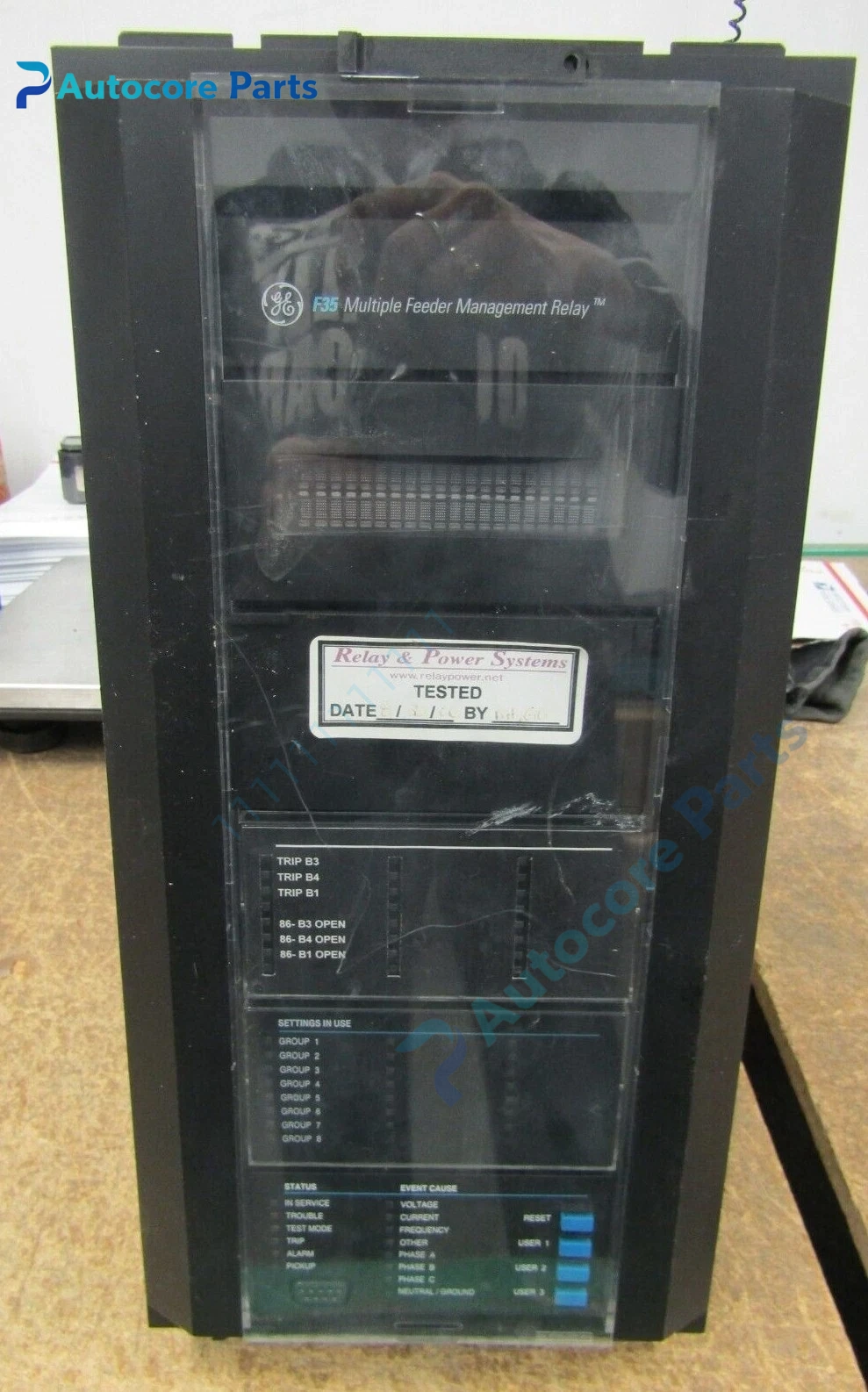

GE F35G00VFHF8FH6PM8HP67 Feeder Protection Relay Unit

Module Feature

F35G00VFHF8FH6PM8HP67 belongs to GE Multilin F35 series. It is a multifunctional feeder protection relay designed for medium and low voltage power distribution feeders. This GE relay integrates comprehensive protection functions, electric energy metering, sequence of event recording and fault oscillography. It supports overcurrent, earth fault, negative sequence overcurrent, overvoltage, undervoltage and breaker control functions. Multiple digital input and relay output channels are available for equipment status collection and trip/alarm output. Equipped with Ethernet and serial communication interfaces to connect SCADA, HMI and PLC systems. Widely applied in power plants, petrochemical plants and water treatment low/medium voltage switchgear cabinets for feeder protection and real-time status monitoring.

Working principle

The GE F35 relay continuously samples current and voltage signals from CT and VT. The internal CPU executes protection algorithms and compares measured values with preset threshold settings. Once fault condition is detected, it activates trip relay to open circuit breaker, and records fault waveform, fault magnitude and time stamp. Real-time electrical data and alarm messages are uploaded to upper monitoring system via communication ports.

Onboard components

Main control CPU, analog sampling circuit, flash memory chip, fault waveform storage chip, Ethernet transceiver, serial communication chip, relay output group, status indicator LED array, power management circuit.

LED indicators

Power LED, run LED, trip LED, alarm LED, communication status LED.

Hardware self-diagnosis

Power supply abnormality, analog sampling failure, memory error, communication timeout, internal hardware fault detection, records fault codes and oscillography files.

Programming software

GE EnerVista configuration software for relay parameter setting, screen project download, fault waveform analysis, parameter backup and firmware upgrade.

Electrical & Process Parameters

Model:F35G00VFHF8FH6PM8HP67 Brand:GE Multilin Device type:Multifunction Feeder Protection Relay Power supply:85~264VAC / 88~300VDC Input:CT / VT analog signal Output:Dry contact trip and alarm relay Communication:Ethernet, RS485 Protection:Overcurrent, earth fault, overvoltage, undervoltage, breaker failure protection

Mechanical & Structure

Mounting:Panel cutout mount on switchgear door Protection class:IP65 (front face) Housing:Aluminum front frame and plastic rear enclosure

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE Multilin original F35 series feeder protection relay for power distribution system

Installation

Follow lockout-tagout safety procedure before operation. Cut off control power and isolate CT/VT circuits. Embed GE F35 relay into cabinet panel cutout and fasten mounting clips. Wire CT, VT, control power, trip and communication terminals. Download protection setting group and verify protection logic before power commissioning.

Interface

Control power terminals, CT/VT analog input terminals, trip/alarm relay terminals, Ethernet port, serial communication port.

Diagnostic

No power indication: control power missing or internal power circuit failure. False protection trigger: CT polarity reversed or sampling circuit abnormal. Communication disconnected: wrong network parameters or damaged communication cable.

Product Brief

GE F35G00VFHF8FH6PM8HP67 Multilin F35 series multifunction feeder protection relay, panel cutout mount, built-in protection, metering and fault oscillography functions, used for medium and low voltage distribution feeder protection.
