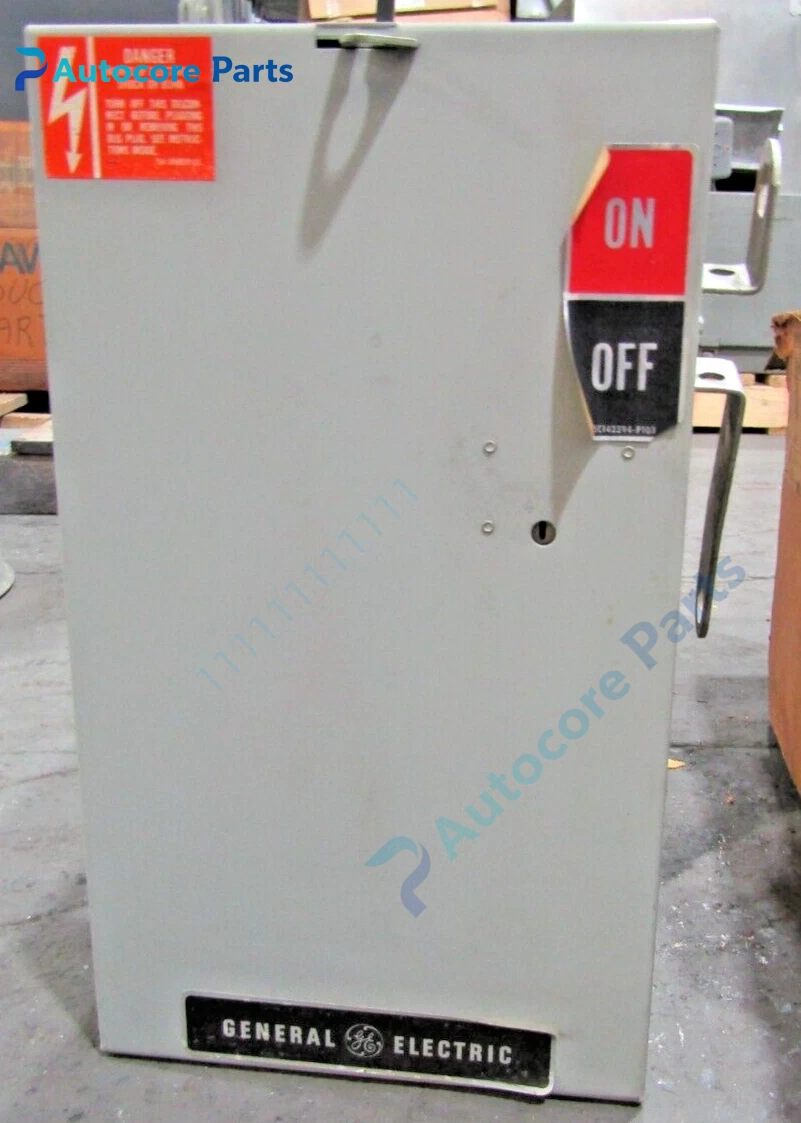

GE FVK363R Bus Plug Unit

Module Feature

FVK363R belongs to GE Flex-A-Power FVK busway series. It is a plug-in bus tap device for GE aluminum or copper busway system, 3-pole 3-wire configuration, rated 100A, max voltage 600VAC. This GE bus plug integrates molded case circuit breaker, which can directly supply power for branch loads such as motors and distribution feeders. The plug-in design allows installation and removal on live busway under safe isolation condition, convenient for branch power expansion and maintenance. Heavy-duty metal enclosure, strong mechanical rigidity and anti-vibration capability. Widely applied in factory low voltage power distribution, workshop power trunk system and industrial switchgear busway system.

Working principle

GE FVK363R bus plug is directly inserted onto GE Flex-A-Power busway. Internal contact realizes electrical connection with main bus. Built-in molded case breaker provides overload and instantaneous short circuit protection for downstream branch circuit. When overload or short circuit fault occurs, breaker trips to cut off branch load power, protecting cables and equipment. The plug mechanical interlock prevents insertion/extraction under load condition, ensuring operator safety.

Onboard components

Metal enclosure, plug-in contact assembly, molded case circuit breaker, mechanical safety interlock mechanism, grounding terminal, cable terminal block, arc shield.

LED indicators

No onboard LED indicators.

Hardware self-diagnosis

Visual inspection of plug contact ablation, housing deformation, interlock mechanism stuck; contact resistance test, insulation resistance measurement, check temperature rise of contact surface.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:FVK363R Brand:GE Device type:Bus Plug Rated voltage:600VAC Pole:3 Pole Rated current:100A Short circuit interrupt rating:10kAIC Application:GE Flex-A-Power busway branch power tapping Protection:Overload and short circuit protection

Mechanical & Structure

Mounting:Plug-in mount for GE FVK busway Protection class:IP20 Housing:Heavy gauge metal enclosure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL compliant Status: GE original Flex-A-Power series bus plug for low voltage busway power distribution

Installation

Cut off upstream busway power and implement lockout-tagout before operation. Align GE FVK363R bus plug with busway guide rail, insert and lock the mechanical latch. Tighten downstream load cable lugs. Test breaker on-off operation and verify mechanical interlock function before power recovery.

Interface

Busway plug-in contact interface, load cable screw terminals, grounding terminal.

Diagnostic

Plug terminal overheating: poor plug contact or contact surface oxidation. Cannot insert or pull out: mechanical interlock stuck or busway deformation. Breaker trips frequently: branch circuit overload or short circuit fault.

Product Brief

GE FVK363R Flex-A-Power series 3-pole bus plug, 600VAC 100A, plug-in tap design with built-in molded case breaker, used for GE busway branch power supply, overload and short circuit protection.
