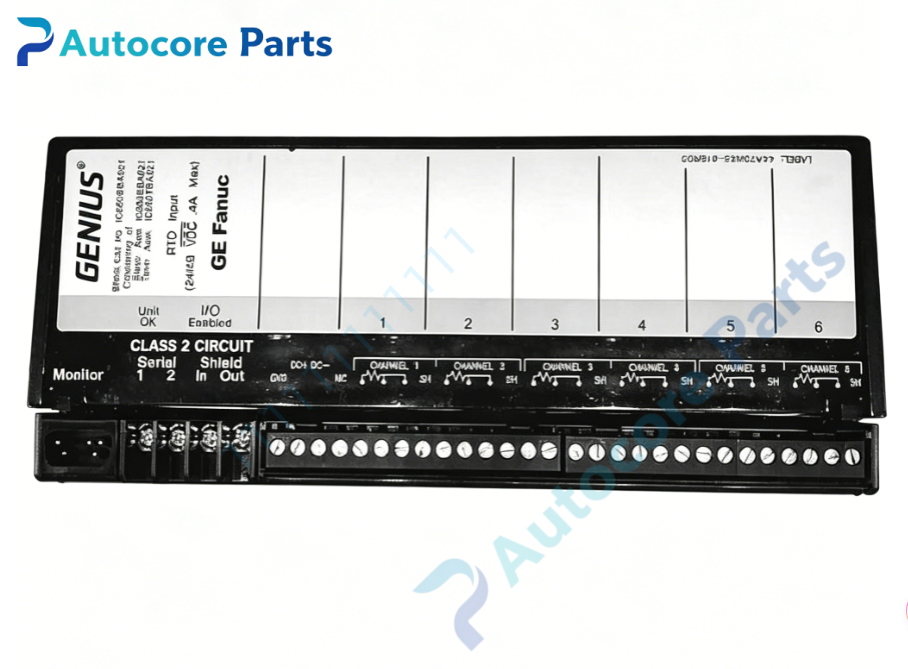

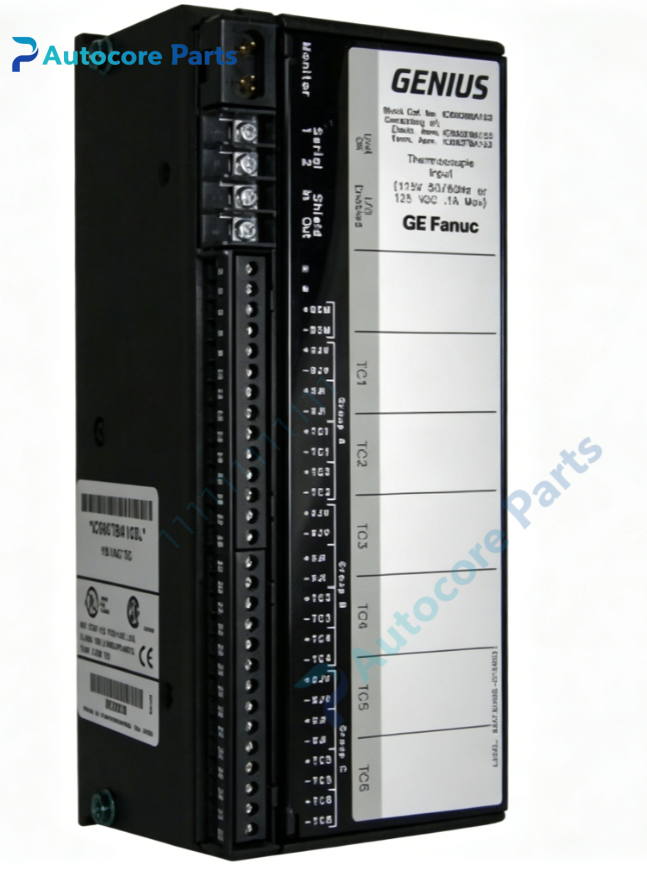

GE Fanuc IC660BBA021 RTD Input Block

Technical SpecificationsModel：IC660BBA021 Brand：GE Fanuc Product Type: Genius distributed remote 6-channel RTD temperature input I/O block

Module Feature:Channel:6 independent RTD measurement channels Function:Collect temperature signal from Pt, Nickel, Copper RTD sensors,built-in linearization calculation,convert resistance value into engineering temperature unit Configurable sampling update rate:400ms / 800ms /1600ms Measurement range:0~5000 Ohm resistance measurement Resolution:0.1℃ /0.1℉ Group to group isolation:300V; block to block isolation:1500V Built-in alarm threshold configuration:high alarm,low alarm Comprehensive diagnostic:open wire,short circuit,overrange,underrange,internal hardware fault LED indicators:Module OK, I/O enable status lights Genius serial bus interface,handheld monitor HHM service port DIN rail mounting design,rugged industrial housing

Electrical Parameters:Power supply:24~48VDC,max 9W power dissipation Bus:Genius I/O serial bus Common mode voltage withstand for field wiring

Mechanical & Structure:Mounting:DIN rail installation Protection class:IP30 Weight:0.75kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC660BBA021 belongs to GE Fanuc Genius distributed I/O family. Compatible with Series90-70 / Series90-30 / RX3i PLC CPU with Genius bus adapter. Widely used for power plant,chemical,water treatment industrial temperature measurement and monitoring.

Function

IC660BBA021 is remote RTD temperature input block manufactured by GE Fanuc. It is part of Genius distributed I/O system. It reads resistance signal from field RTD temperature sensors, performs built-in linearization to calculate actual temperature value, then transmits temperature data to PLC controller via Genius serial bus. The module detects sensor open/short circuit and triggers alarm. LED indicators display module operating health status.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off block power. Mount IC660BBA021 on DIN rail. Connect 24/48VDC power supply, RTD sensor field wiring and Genius bus cable. Set block address and sensor type configuration via HHM handheld monitor. Power on, verify bus communication and temperature reading.

Interface

Genius bus terminal, 6 channel RTD sensor terminal, HHM service port, power terminal, on-board status LED indicators for GE Fanuc IC660BBA021.

Feature

Original GE Fanuc IC660BBA021 Genius 6 channel RTD input block,support Pt/Ni/Cu RTD sensor,built-in linearization and high/low alarm,open/short circuit diagnostic,high isolation protection,Genius distributed bus,DIN rail mount,UL & CE certified. This spare unit is used for Genius remote temperature acquisition system maintenance and hardware replacement.

Diagnostic

No temperature reading:Check 24/48V power, RTD sensor wiring and block address setting. Abnormal temperature drift:Inspect sensor cable shielding and group isolation. Fault LED trigger:Troubleshoot wire break, sensor short or module hardware fault.

Product Brief

IC660BBA021 is GE Fanuc legacy Genius distributed 6-channel RTD temperature input block,for remote industrial temperature monitoring via Genius bus,discontinued remote I/O spare block.
