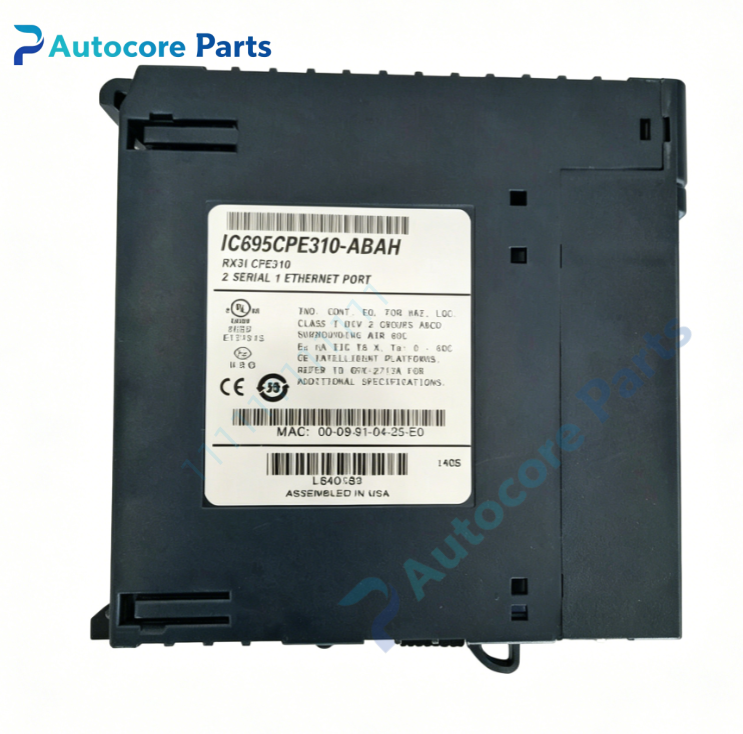

GE Fanuc IC695CPE310 CPU Module

Technical SpecificationsModel：IC695CPE310 Brand：GE / Emerson (Former GE Fanuc Intelligent Platforms) Product Type: PACSystems RX3i rack-mounted central processing unit for industrial PLC control system

Module Feature:Processor:1.1GHz microprocessor, support floating-point arithmetic Memory:10MB non-volatile flash user memory, battery-backed memory for data retention I/O mapping:32K discrete I/O bits, up to 32K analog I/O words Ports:1×10/100Mbps Ethernet port,1×RS232 COM1,1×RS485 COM2,1×USB host port Communication Protocols:Modbus TCP, Modbus RTU, SNP, Serial I/O Programming languages:Ladder Diagram, Structured Text, Function Block Diagram, C language Support up to 8 local racks, maximum 512 program blocks Real-time clock, battery backup, estimated battery service life 5 years LED status indicators for run, fault, power and communication Dual backplane bus: RX3i PCI bus and legacy 90-30 serial backplane Built-in hardware diagnostic function for fault detection

Electrical Parameters:Power supply:+3.3VDC, +5VDC, 24VDC (Energy Pack accessory) Boolean execution speed:0.072ms per 1000 boolean instructions Ethernet rate:10/100 Mbps auto negotiation

Mechanical & Structure:Mounting:RX3i backplane plug-in module Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC695CPE310 belongs to GE PACSystems RX3i PLC family. Compatible with RX3i backplane, digital/analog I/O modules, power supplies and communication modules. Widely used in manufacturing, power plant, water treatment and general industrial automation control.

Function

IC695CPE310 is main CPU controller of PACSystems RX3i PLC system. It executes user control logic program, processes discrete and analog I/O signals, handles motion and sequence control tasks. Ethernet and serial ports realize data exchange with HMI, SCADA and field devices. Built-in diagnostic circuit monitors system operation and reports faults via LED indicators. RTC keeps accurate system time for data logging and event recording.

Installation

Follow lockout/tagout safety procedure before installation. Cut off rack power. Insert IC695CPE310 module into RX3i backplane slot and lock retention latch. Install energy pack if required. Connect Ethernet, serial and USB cables. Download PLC program and verify I/O mapping and communication after power on.

Interface

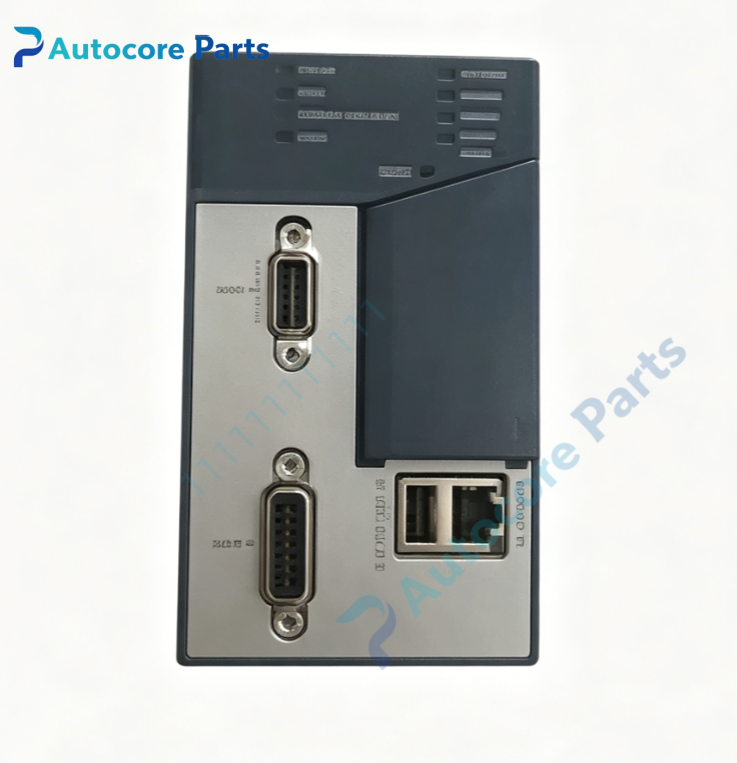

10/100 Ethernet port, RS232 COM1, RS485 COM2, USB host port, backplane gold edge connector, status LED indicators for GE IC695CPE310.

Feature

Original GE IC695CPE310 RX3i CPU module,1.1GHz processor,10MB flash storage,multi-port communication,real-time clock with battery backup,rich programming support,built-in hardware diagnostic,UL & CE certified. This spare unit is used for industrial PACSystems RX3i automation control system maintenance and hardware replacement.

Diagnostic

Module not running:Check backplane power supply and module seating. Communication failure:Verify network/serial wiring, protocol configuration and IP address. Fault LED active:Check battery status, program errors or I/O bus short circuit.

Product Brief

IC695CPE310 is GE Emerson PACSystems RX3i PLC CPU module,with multi communication interfaces and large user memory,for industrial sequence and process automation control,legacy spare controller.
