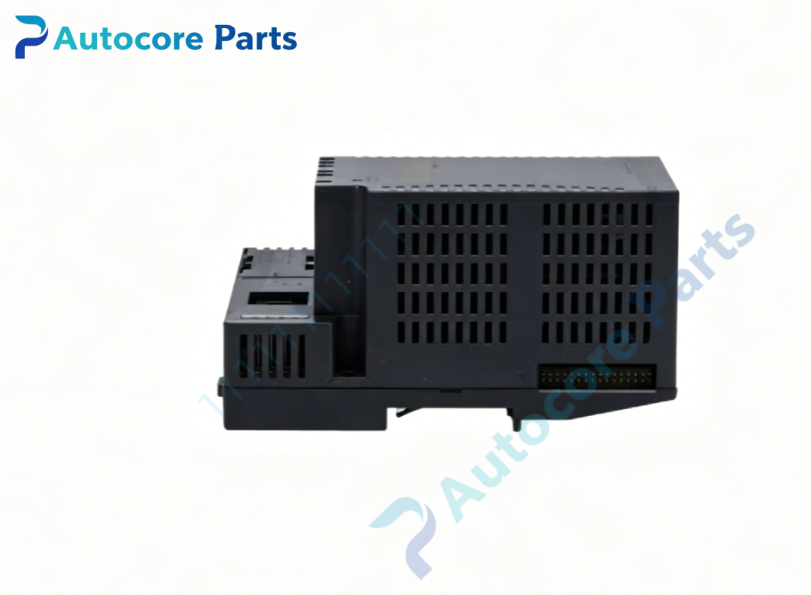

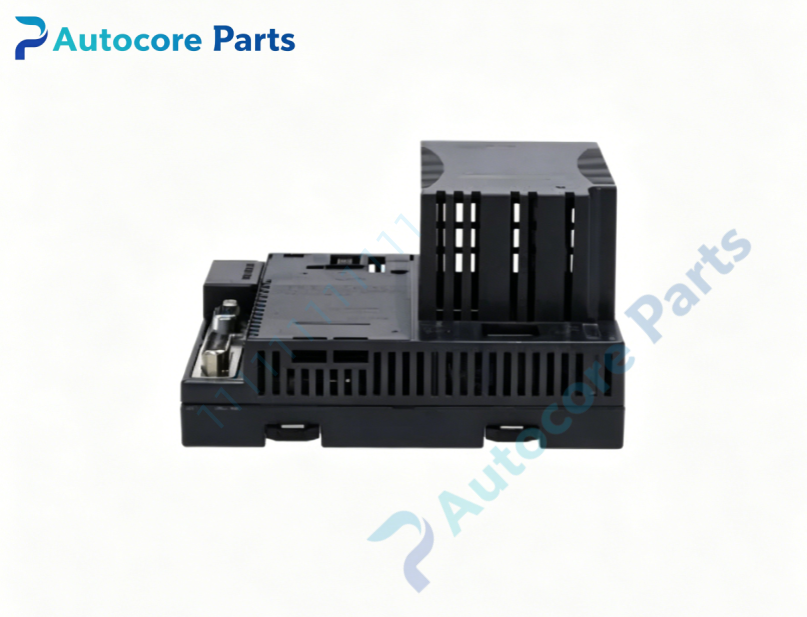

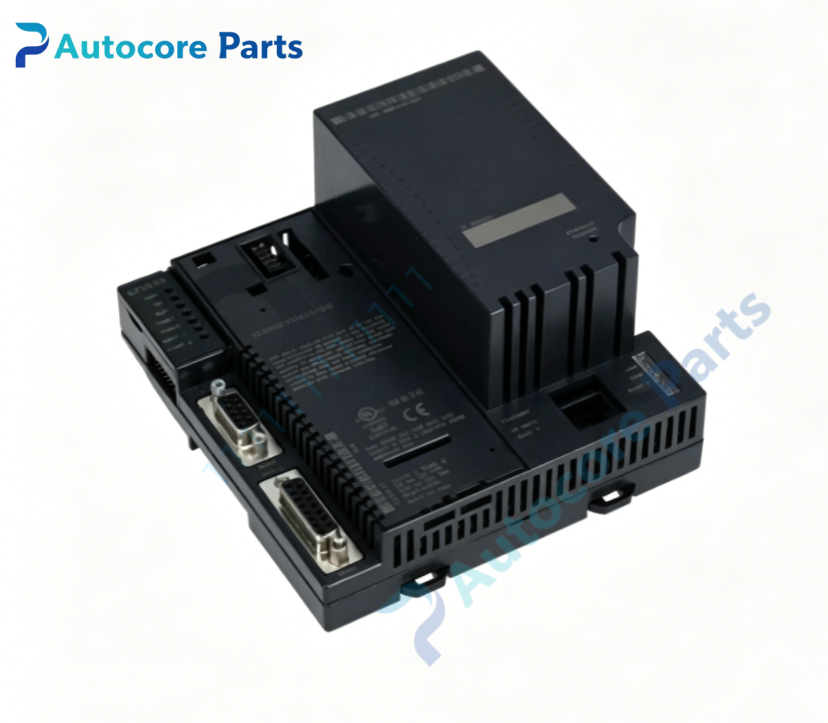

GE Fanuc IC200CPUE05-HK VersaMax CPU Module

Technical SpecificationsModel：IC200CPUE05-HK Brand：GE Fanuc Product Type: VersaMax compact CPU controller module

Module Feature:Function: Main CPU controller for VersaMax PLC system,execute ladder logic,process analog & discrete I/O data,real-time control and network communication. Memory:128KB configurable memory for user program,hardware config and register data Max system scale:Support up to 64 I/O modules,max 2048 mixed I/O points Ports:10Mbps RJ45 Ethernet; RS232 local station port; RS485 serial port Communication protocols:SRTP, Modbus TCP, SNP, Genius bus Programming software:Proficy Machine Edition, VersaPro Programming languages:Ladder Diagram, Instruction List Support hardware floating-point arithmetic,battery-backed RAM for data and real-time clock Run/Stop switch,LED indicators:OK, RUN, Fault, Ethernet activity Hardware self-diagnosis:memory check,backplane communication,bus fault detection Mounting:Standard DIN rail mounting Can work as standalone PLC or remote I/O slave for Series90 PLC

Electrical ParametersBackplane supply:+5VDC, power consumption 0.65A Ethernet speed:10Mbps half/full duplex

Mechanical & Structure:Mounting:DIN rail mount Protection class:IP20 Weight:0.28kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE, Class1 Div2 Status:Manufacturer discontinued legacy spare part

System compatibilityIC200CPUE05-HK belongs to GE Fanuc VersaMax family. Compatible with VersaMax power supply,analog/discrete I/O modules. Widely used for packaging,material handling,water treatment and small-scale factory automation.

FunctionIC200CPUE05-HK is compact VersaMax PLC CPU. It runs user control program,collects field I/O signals and supports floating-point calculation. Built-in Ethernet and dual serial ports support PLC programming,Modbus TCP and Genius distributed I/O. Battery backup retains production data and time stamp during power outage. Front LEDs quickly show running status and hardware fault.

InstallationFollow lockout/tagout safety procedure before installation. Mount module on DIN rail,connect VersaMax backplane. Wire 24VDC power and communication cables. Download PLC project via programming software,power on and verify I/O and network communication.

InterfaceVersaMax backplane gold-edge connector,RJ45 Ethernet,RS232 port,RS485 port,Run/Stop switch,on-board status LED indicators for GE Fanuc IC200CPUE05-HK.

DiagnosticNo RUN light:Check backplane power,Run/Stop switch and valid downloaded program. Ethernet link lost:Verify network cable,IP address and remote device power. Fault LED on:Inspect battery failure,program corruption or backplane fault.

Product BriefIC200CPUE05-HK is GE Fanuc legacy VersaMax compact CPU module with embedded 10Mbps Ethernet and dual serial ports,supports up to 2048 I/O points for small and medium automation control,discontinued PLC spare controller.
