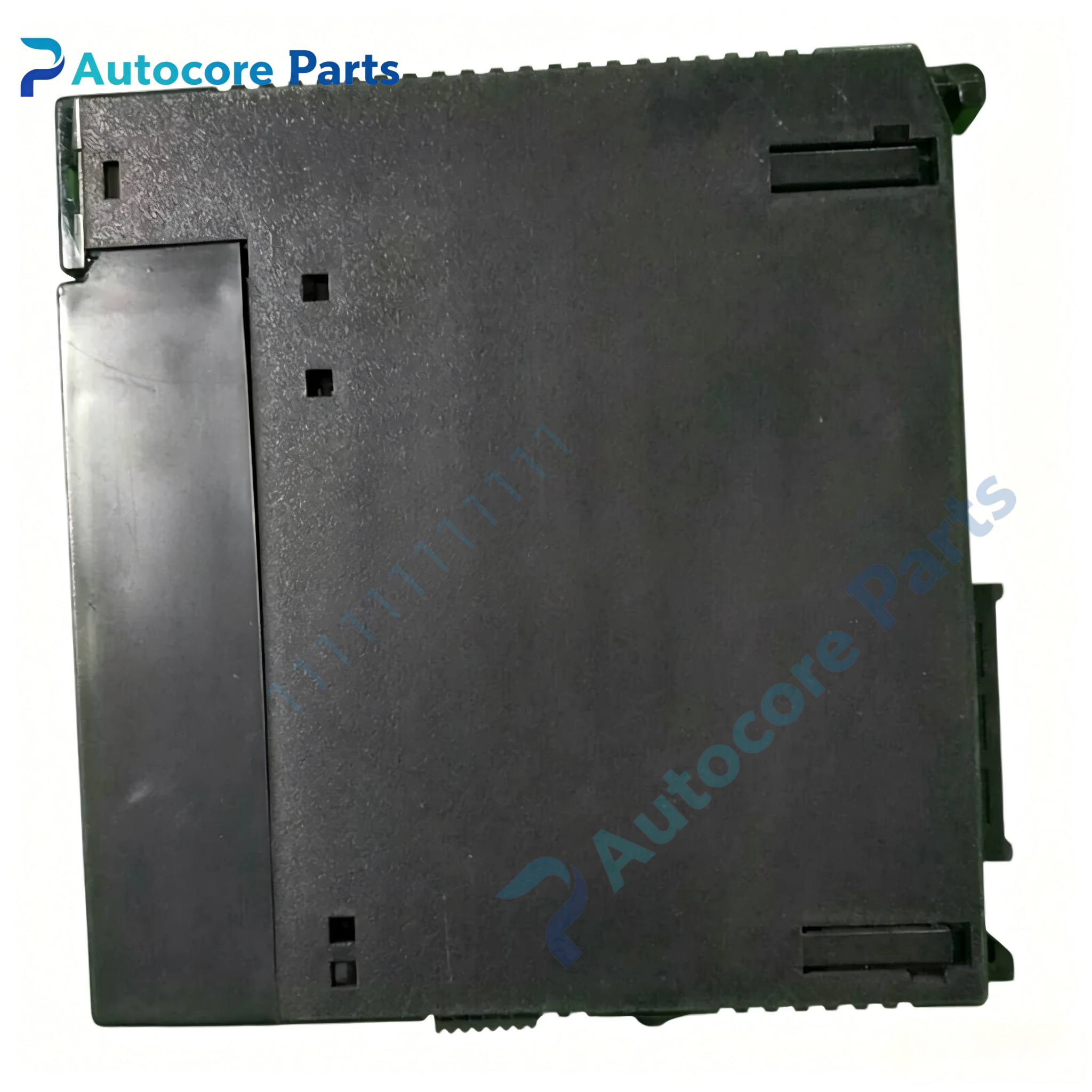

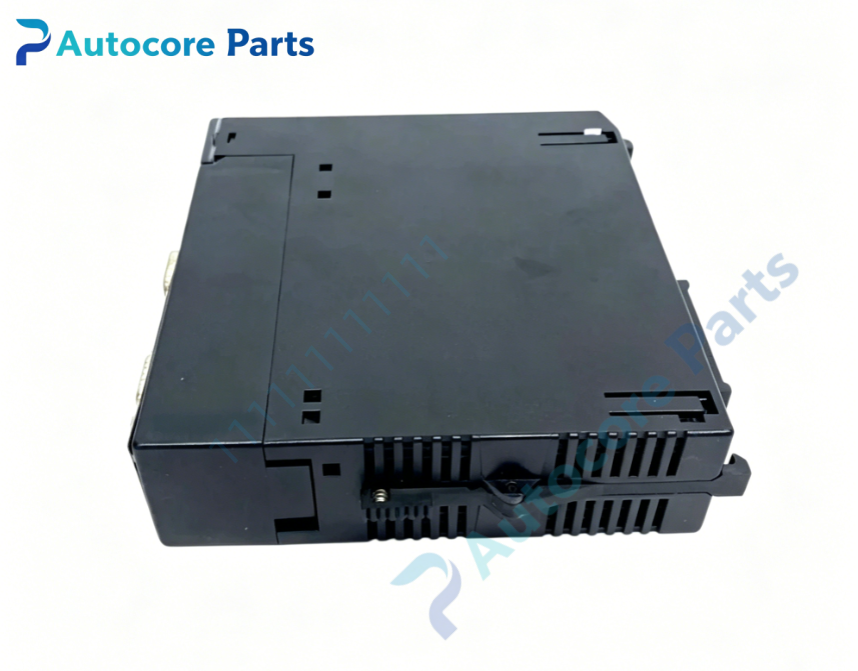

GE Fanuc IC695ALG616-JF Analog Input Module

Technical SpecificationsModel：IC695ALG616-JF Brand：GE Fanuc Product Type: Single-slot plug-in high density analog input module for PACSystems RX3i universal backplane

Module Feature:Function: Collect analog voltage and current signals from field transmitters,pressure,temperature and flow sensors,convert analog signal to digital value for RX3i CPU processing. Channel:16 single-ended channels or 8 differential input channels Signal Ranges: Current: 0~20mA,4~20mA,±20mA; Voltage: ±10V,0~10V,±5V,0~5V,1~5V Resolution:16-bit A/D conversion Isolation:Non-isolated differential analog input Filter:Configurable hardware filter:8Hz,12Hz,16Hz,40Hz,200Hz,500Hz Terminal block:IC694TBB032 / IC694TBS032 series terminal block (sold separately) LED indicators:MODULE OK,FIELD STATUS,TB status indicators Hot-swap capable under qualified system configuration Hardware self-diagnosis:channel overrange,field wiring fault,backplane bus and module internal error Backplane communication with RX3i CPU; requires RX3i CPU firmware V3.0 or above Programming software:Proficy Machine Edition V5.0 SP3 or newer

Electrical ParametersBackplane supply:+5VDC, max 350mA Power consumption:Max 5.64W

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Protection class:IP20 Weight:0.72kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG616-JF belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i CPU, power supply, analog output and discrete I/O modules. Widely used in chemical,water treatment,power plant and process automation for analog signal collection.

FunctionIC695ALG616-JF is high-density analog input module for GE Fanuc RX3i PACSystems. It supports flexible channel configuration for single-ended or differential mode, multi-range voltage/current signal acquisition from field transmitters. Configurable hardware filter suppresses high frequency noise. Front panel LEDs show module running status and field wiring fault for on-site troubleshooting. Hot-swap design allows module replacement without shutting down whole rack.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695ALG616-JF into vacant RX3i slot and lock retainer. Install matching terminal block and connect sensor shielded cable. Set channel signal range and filter parameter in Proficy Machine Edition. Power on and verify analog reading.

InterfaceRX3i backplane gold-edge connector,field terminal block interface,on-board MODULE OK / FIELD STATUS / TB LED indicators for GE Fanuc IC695ALG616-JF.

DiagnosticNo analog reading:Check backplane power,field sensor supply,channel range configuration and wiring. Signal fluctuation:Adjust hardware filter parameter,check cable shielding and ground potential. FIELD STATUS alarm:Overrange signal or open/short circuit on field input wiring.

Product BriefIC695ALG616-JF is GE Fanuc legacy PACSystems RX3i high density 16-channel analog input module,supports single-ended / differential multi-range analog signal acquisition for process sensors,discontinued rack I/O spare card.
