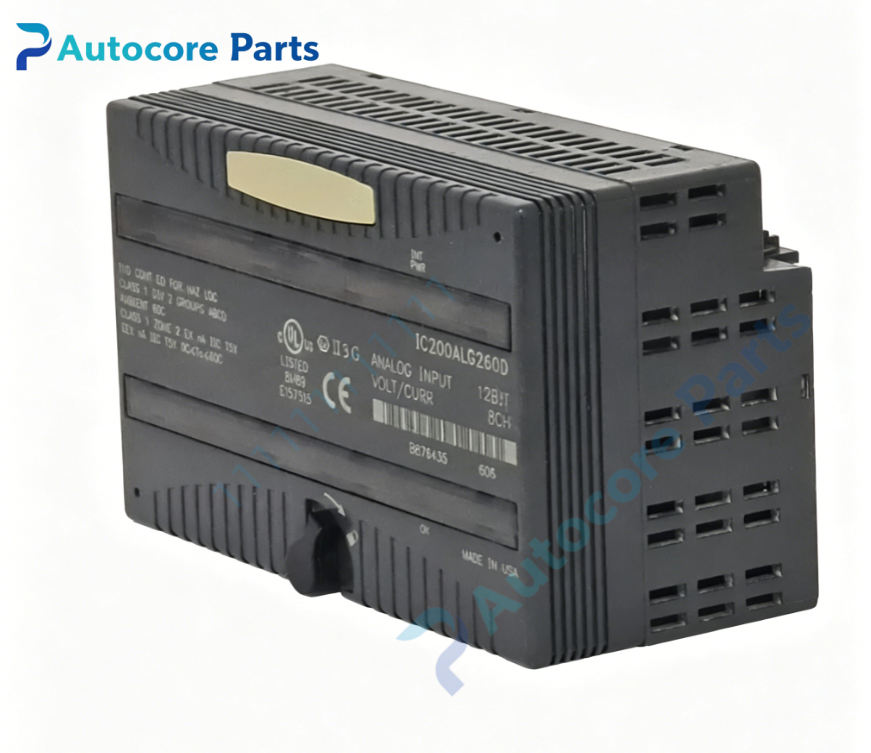

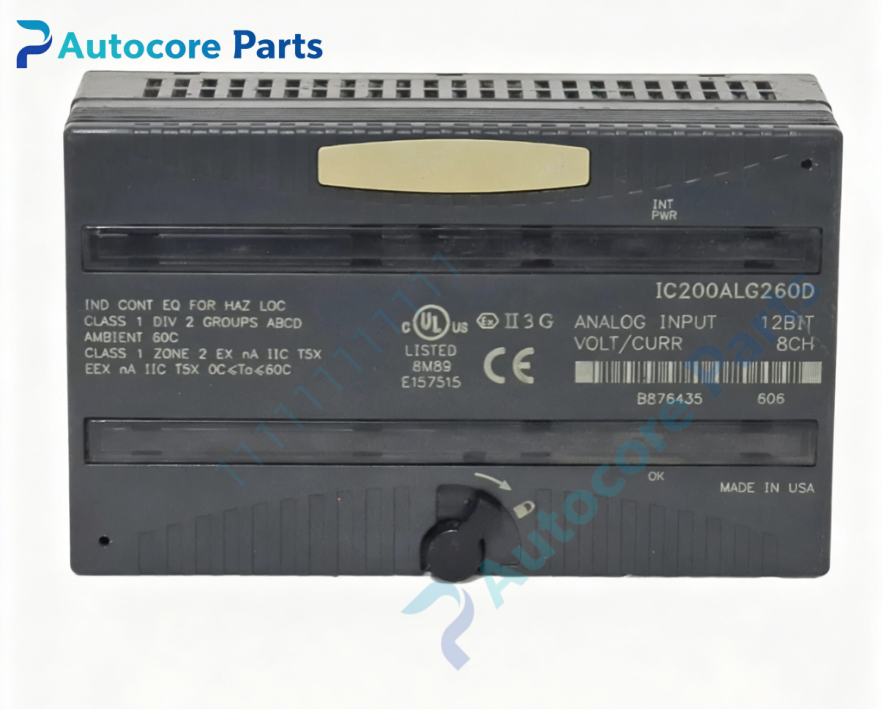

GE Fanuc IC200ALG260D Analog Input Module

Technical SpecificationsModel：IC200ALG260D Brand：GE Fanuc Product Type: Single-slot plug-in analog input module for VersaMax PLC backplane

Module Feature:Function: Receive analog signal from field transmitters, temperature, pressure, flow sensors, convert analog signal into digital data for VersaMax CPU processing. Channel:8 single-ended analog input channels Signal Ranges: ±10V,0~10V voltage; 0~20mA /4~20mA current Resolution:12-bit A/D conversion Isolation:Group isolation, 250VAC continuous isolation between field and logic side Input impedance:＞100kΩ for voltage mode; max 200Ω for current mode LED indicators:Module OK, Channel diagnostic status lights Hardware self-diagnosis:overrange detection,open circuit and short circuit fault alarm Backplane communication with VersaMax CPU Programming software:Proficy Machine Edition, VersaPro

Electrical ParametersBackplane supply:+5VDC, max 130mA Power consumption:Max 1W Field transmitter power supplied externally

Mechanical & Structure:Mounting:DIN rail installation, plug into VersaMax backplane Protection class:IP20 Dimension:110mm × 66.8mm × 50mm Weight:0.30kg

Environmental:Operating temperature:-20℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC200ALG260D belongs to GE Fanuc VersaMax I/O family. Compatible with VersaMax CPU, power supply and other I/O modules. Widely used for water treatment, packaging machinery, HVAC and small process automation systems.

FunctionIC200ALG260D is 8-channel 12-bit analog input module for GE Fanuc VersaMax PLC. It collects standard voltage and current signals from field sensors and transmitters. Group isolation protects PLC system from field side interference. Built-in overrange and wiring fault diagnosis help field maintenance. Compact DIN rail design saves cabinet space.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off VersaMax rack power. Insert IC200ALG260D into VersaMax backplane slot. Connect shielded sensor cable to terminal block. Set signal range in VersaPro / Proficy Machine Edition. Power on and verify analog reading.

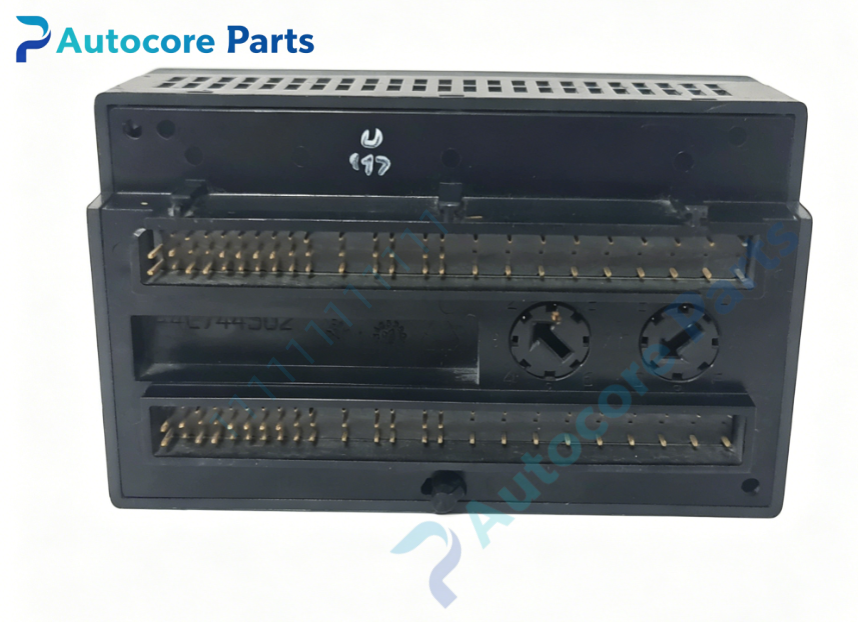

InterfaceVersaMax backplane gold-edge connector,field analog input terminal block,on-board module / channel status LED indicators for GE Fanuc IC200ALG260D.

DiagnosticNo analog reading:Check backplane power,external sensor supply,channel range setup and wiring. Signal unstable:Check cable shielding,grounding and signal wiring. Channel fault alarm:Overrange signal or open/short circuit on field wiring.

Product BriefIC200ALG260D is GE Fanuc legacy VersaMax 8-channel 12-bit analog input module,supports voltage and current signal acquisition for process transmitters,discontinued I/O spare card.
