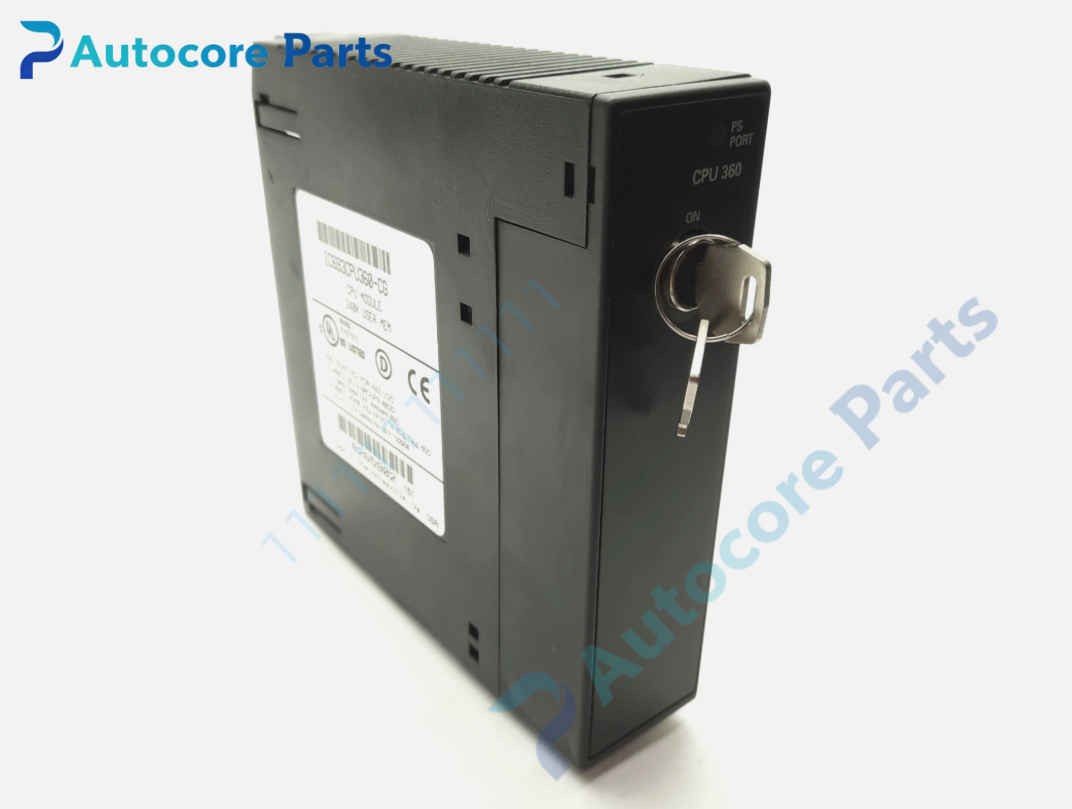

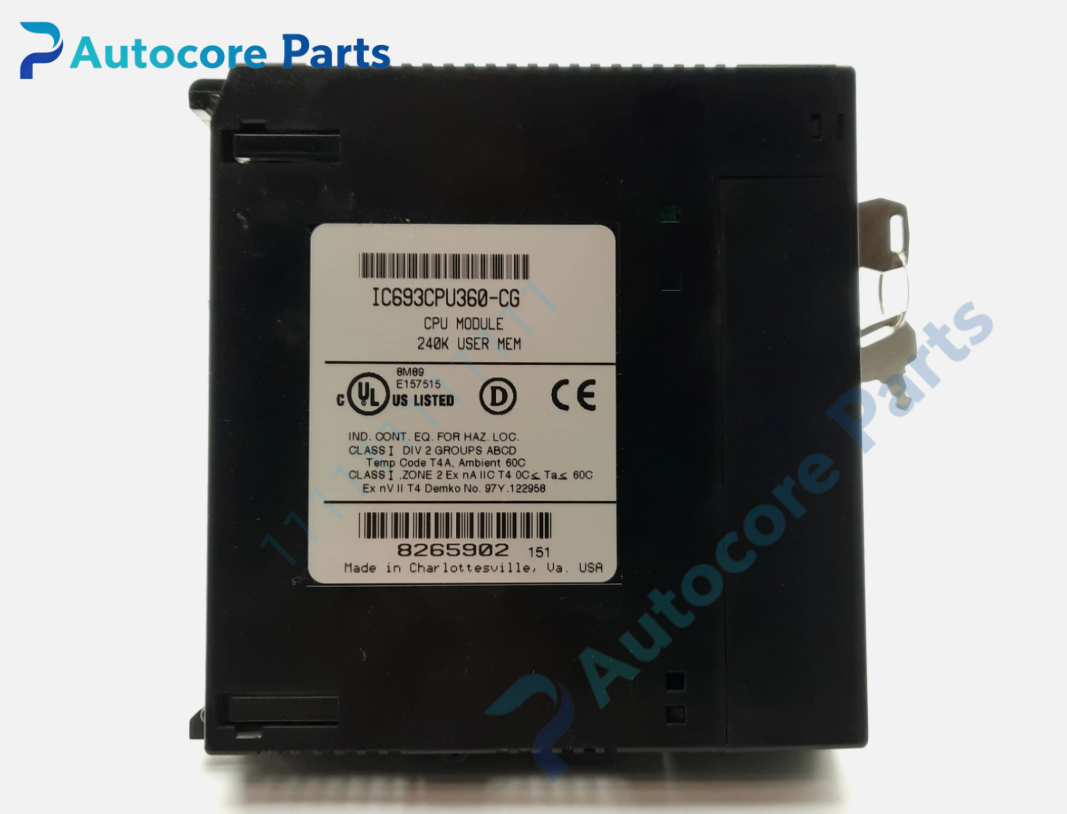

GE Fanuc IC693360-CG CPU Module

Technical SpecificationsModel：IC693360-CG Brand：GE Fanuc Product Type: Single slot plug-in CPU module for Series90-30 PLC rack system

Module Feature:Processor:25MHz 32-bit 80386EX embedded processor, hardware floating-point arithmetic support Memory:160KB non-volatile user memory, battery-backed RAM for data retention I/O capacity:2048 discrete input points,2048 discrete output points,max 32640 analog I/O words Ports:2 integrated serial ports:1 RS232,1 RS485 Supported communication protocol:SNP, SNPX, Modbus RTU Programming software:Logicmaster 90-30 Programming languages:Ladder Diagram, Instruction List Single-slot form factor, compatible with 5-slot /10-slot Series90-30 backplane LED indicators:RUN, OK, Fault, Memory Protect status lights Built-in real-time clock with battery backup Hardware self-diagnosis for backplane, memory and I/O fault detection Support Genius distributed remote I/O expansion

Electrical ParametersBackplane supply:+5VDC, power consumption 0.7A Boolean scan speed:0.3ms per 1000 boolean contacts Backplane bus:Series90-30 proprietary backplane bus

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack slot Protection class:IP20 Weight:0.82kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC693360-CG belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 backplane, power supply, analog/digital I/O modules and Genius bus modules. Widely used for mechanical manufacturing, water treatment and power auxiliary control.

Function

IC693360-CG is main CPU controller of GE Fanuc Series90-30 PLC. It executes ladder logic program, collects discrete and analog field signals and completes floating-point closed-loop calculation. Dual serial ports realize communication with HMI, SCADA and Genius remote I/O. Battery-backed RTC records alarm timestamps. On-board LEDs help maintenance staff quickly judge running and fault state.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off Series90-30 rack power. Insert IC693360-CG module into vacant rack slot and lock retention latch. Connect serial communication wiring. Download PLC program and verify I/O mapping and serial communication after power-on.

Interface

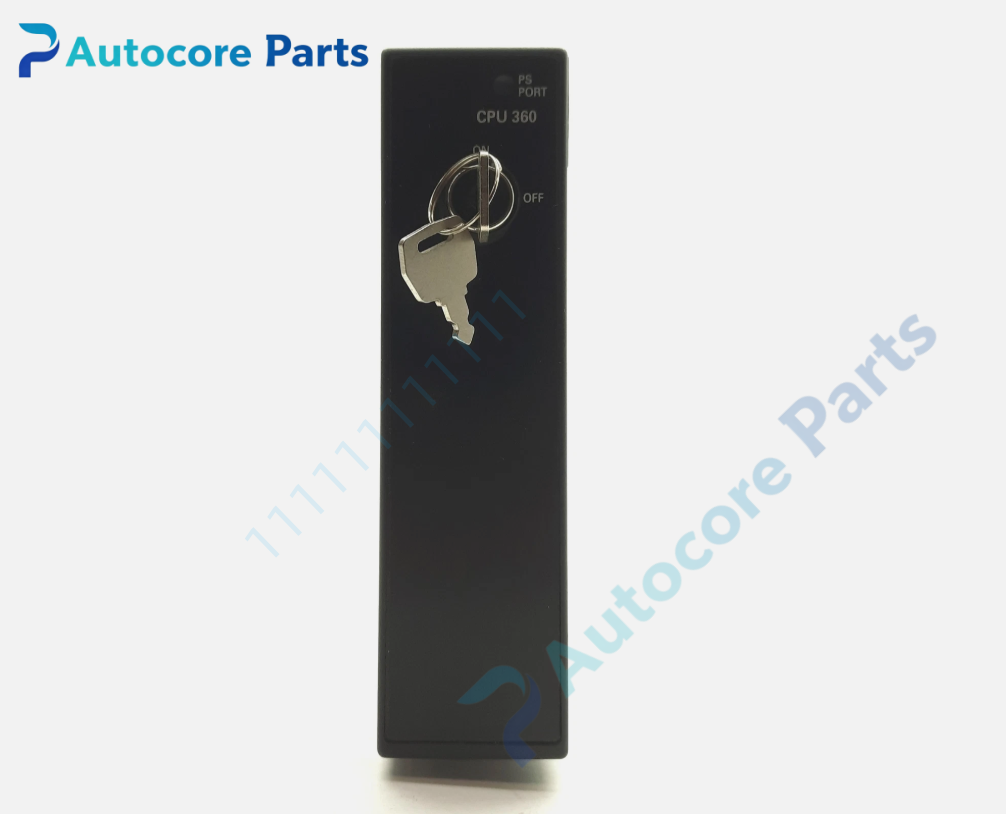

Series90-30 backplane gold-edge connector,RS232 programming port,RS485 Genius bus port,on-board status LED indicators for GE Fanuc IC693360-CG.

Diagnostic

CPU cannot enter RUN mode:Check rack +5V power supply,module insertion condition and memory protect switch. Serial communication interruption:Verify wiring,termination resistor and station address setting. Fault LED lit:Troubleshoot program error,memory corruption or backplane I/O short circuit.

Product Brief

IC693360-CG is GE Fanuc Series90-30 legacy single-slot PLC CPU module,with dual serial interfaces and floating-point function,for general industrial sequence and process control,discontinued spare controller.
