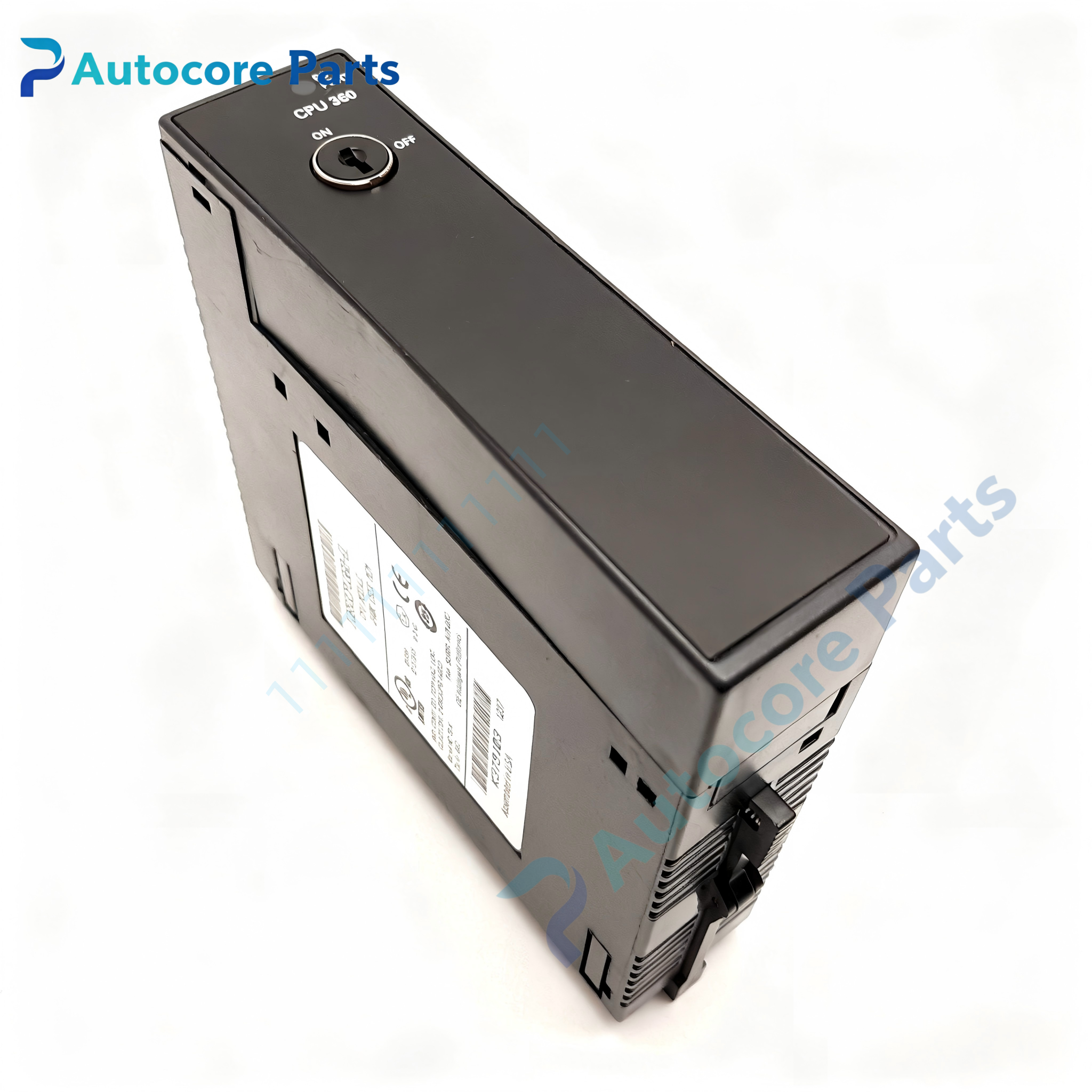

GE Fanuc IC693CPU360-CH CPU Module

Technical SpecificationsModel：IC693CPU360-CH Brand：GE Fanuc Product Type: Single-slot plug-in CPU module for Series90-30 PLC rack system

Module Feature:Processor:25MHz 32-bit 80386EX processor with hardware floating-point arithmetic Memory:240KB configurable battery-backed memory for user program and data storage Max I/O capacity:4096 mixed discrete I/O points,max 8 remote Genius racks Ports:2 serial ports; SNP programming port, Genius bus port Communication protocols:SNP, SNPX, Genius I/O bus Programming software:Proficy Machine Edition, Logicmaster 90-30 Programming languages:Ladder Diagram, Instruction List 3-position mode switch:RUN / STOP / Memory Protect LED indicators:OK, RUN, Fault status indicators Built-in real-time clock with battery backup for alarm event timestamp Hardware self-diagnosis for memory, backplane bus and I/O fault detection Support local rack I/O and Genius distributed remote I/O system

Electrical ParametersBackplane supply:+5VDC, power consumption 0.67A Boolean scan speed:0.22ms per 1K logic memory Backplane bus:Series90-30 proprietary backplane bus

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack slot Protection class:IP20 Weight:0.70kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC693CPU360-CH belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 backplane, power supply, analog/digital I/O modules and Genius bus adapters. Widely used for machinery manufacturing, water treatment and power auxiliary process control.

Function

IC693CPU360-CH is high-performance main processor manufactured by GE Fanuc for Series90-30 PLC. It executes ladder logic programs, collects analog and discrete field signals and performs floating-point closed-loop calculation. Dual serial ports support SNP programming and Genius remote distributed I/O connection. Battery-backed memory retains user program and process variables after power failure. Front panel LEDs help maintenance staff quickly check running status and hardware faults.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off Series90-30 rack power. Insert IC693CPU360-CH module into vacant rack slot and lock retention latch. Connect SNP programming cable and Genius bus wiring. Download PLC program and verify I/O mapping and Genius bus communication after power-on.

Interface

Series90-30 backplane gold-edge connector,SNP programming serial port,Genius bus port,mode selector switch,on-board status LED indicators for GE Fanuc IC693CPU360-CH.

Diagnostic

CPU cannot enter RUN mode:Check rack +5V power supply,module seating and memory protect switch position. Genius I/O communication lost:Verify bus wiring,termination resistor and remote I/O address setting. Fault LED active:Troubleshoot battery depletion,program corruption or backplane bus fault.

Product Brief

IC693CPU360-CH is GE Fanuc legacy Series90-30 single-slot CPU module with hardware floating-point and Genius bus interface,for medium scale industrial automation control,discontinued PLC processor spare.
