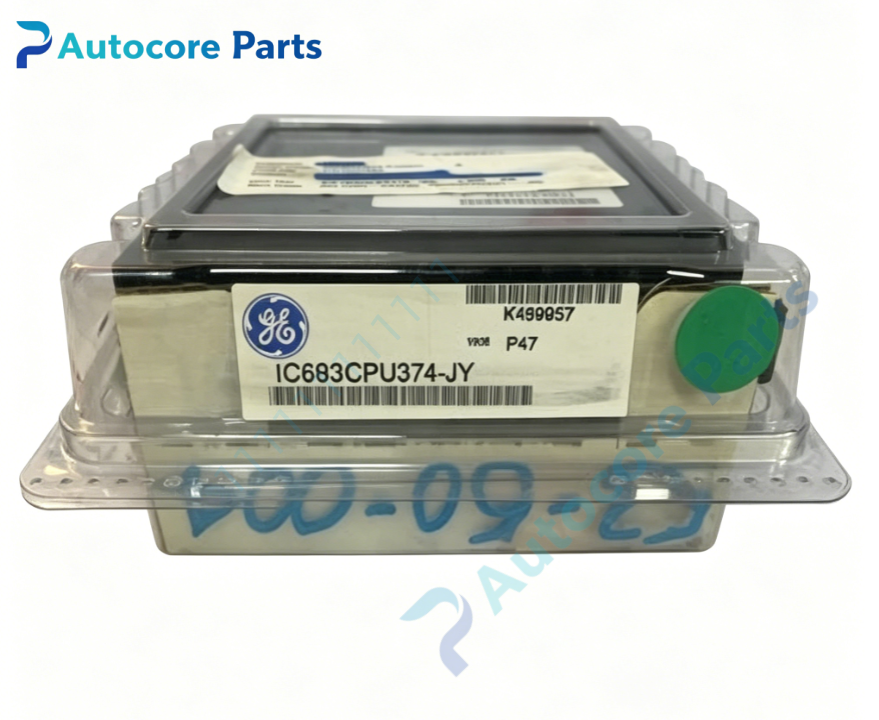

GE Fanuc IC693CPU374-JY CPU Module

Technical SpecificationsModel：IC693CPU374-JY Brand：GE Fanuc Product Type: Single-slot plug-in CPU controller for Series 90-30 PLC rack

Module Feature:Function: High performance CPU controller for GE Fanuc Series90-30 PLC system, executes real-time control logic, communicates with local I/O and remote network devices. Processor:133MHz AMD SC250 embedded processor Memory:240KB configurable user memory, Flash and RAM storage Max I/O capacity: 4096 I/O points, supports up to 8 expansion racks Ports: Dual 10/100Mbps Ethernet ports with built-in network switch Supported protocols: SRTP, EGD, Modbus TCP Programming languages:Ladder Diagram, Structured Text, Function Block Diagram LED indicators: OK, RUN, FAULT, LINK status lights Hardware self-diagnosis: memory integrity test, firmware verification, backplane bus and link monitoring Programming software: Proficy Machine Edition JY = specific hardware revision variant

Electrical ParametersBackplane supply:+5VDC, power consumption max 7.4W

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack single slot Weight:0.38kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

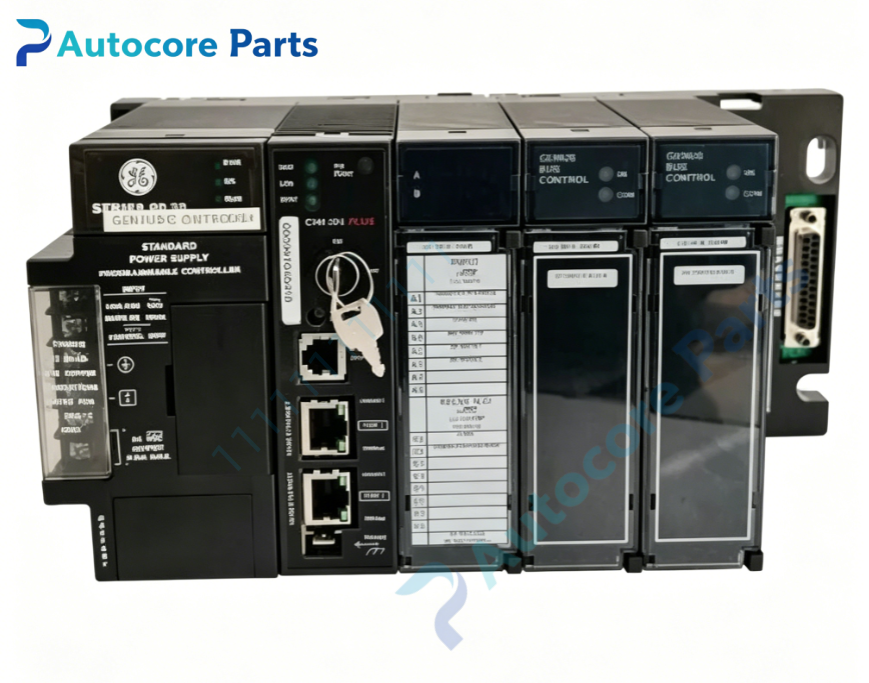

System compatibilityIC693CPU374-JY belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 backplane, power supply and all Series90-30 I/O modules. Widely used in water treatment, packaging, machine tools and factory automation control systems.

FunctionIC693CPU374-JY is high-speed CPU for GE Fanuc Series90-30 platform. Dual Ethernet ports realize HMI connection, peer controller communication and EGD real-time data exchange. It supports large I/O expansion and complex control program. Onboard LEDs show operating status and fault information for on-site maintenance.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Insert IC693CPU374-JY into Series90-30 rack slot and lock retainer. Connect Ethernet cables. Download PLC project and configure network parameters in Proficy Machine Edition. Power on and verify CPU RUN status and I/O communication.

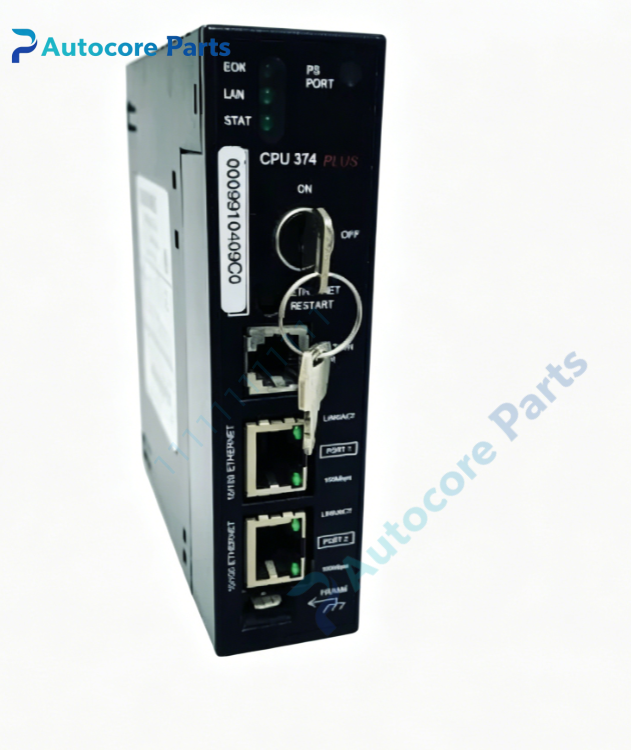

InterfaceSeries90-30 backplane gold-edge connector,dual RJ45 Ethernet port,on-board OK / RUN / FAULT LED indicators for GE Fanuc IC693CPU374-JY.

DiagnosticCPU cannot enter RUN mode:Check backplane 5VDC power,valid downloaded project and memory status. Network link lost:Inspect Ethernet cable,IP address setting and switch port condition. Fault LED active:Firmware corruption,memory error or internal hardware fault.

Product BriefIC693CPU374-JY is GE Fanuc legacy Series90-30 high-performance single-slot CPU module,with dual Ethernet for real-time industrial control and data exchange,discontinued PLC spare controller.
