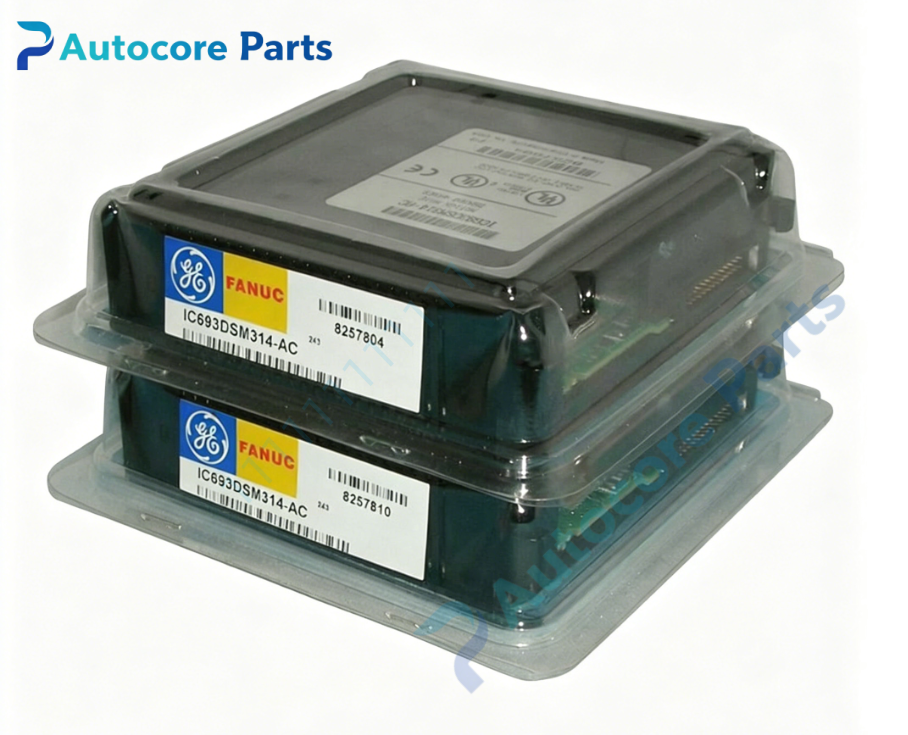

GE Fanuc IC693DSM314-AC Motion Control Module

Technical SpecificationsModel：IC693DSM314-AC Brand：GE Fanuc Product Type: Single-slot plug-in Motion Mate digital servo module for Series90-30 PLC rack

Module Feature:Function: High-performance DSP-based 4-axis motion controller for Series90-30 PLC, independent hardware motion execution, supports digital servo and analog servo drive control. Axis quantity:4 independent axes Position range:-536,870,912 ~ 536,870,911 user units Velocity range:1 ~ 8,388,607 user units/sec Acceleration range:1 ~ 1,073,741,823 user units/sec² Core motion functions:Electronic cam, velocity feedforward, position closed-loop control, multi-axis synchronous start Storage:Non-volatile memory for 10 motion programs and 40 subroutines I/O per axis:Position capture strobe, home, positive / negative limit inputs LED indicators:OK, STAT, CFG, axis enable status lights Hardware self-diagnosis:Servo communication check, position tracking error, backplane bus monitoring Programming software:Proficy Machine Edition, VersaPro, CAM Editor add-on AC = hardware revision variant

Electrical ParametersBackplane supply:+5VDC, typical 450mA Power consumption:Max 2.2W Servo field power supplied externally

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack single slot Weight:0.34kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC693DSM314-AC belongs to GE Fanuc Series90-30 motion family. Compatible with high-end Series90-30 CPU with firmware V10.0 or higher. Not compatible with low version 311~341 and 351 CPUs. Widely used for packaging, printing, material handling and multi-axis positioning automation.

FunctionIC693DSM314-AC is Motion Mate 4-axis servo module. Onboard DSP executes high-speed motion control independent of PLC scan cycle. It can drive GE Fanuc digital servo or third-party analog servo. Electronic cam and multi-axis synchronization meet complex continuous motion requirements. Front panel LEDs display module and axis operating status for troubleshooting.

InstallationFollow lockout/tagout safety procedure before installation. Insert IC693DSM314-AC into Series90-30 rack slot and lock retainer. Connect servo drive and limit/home sensor wiring. Configure axis parameters and cam profiles in Proficy Machine Edition. Power on and test homing and multi-axis synchronous movement.

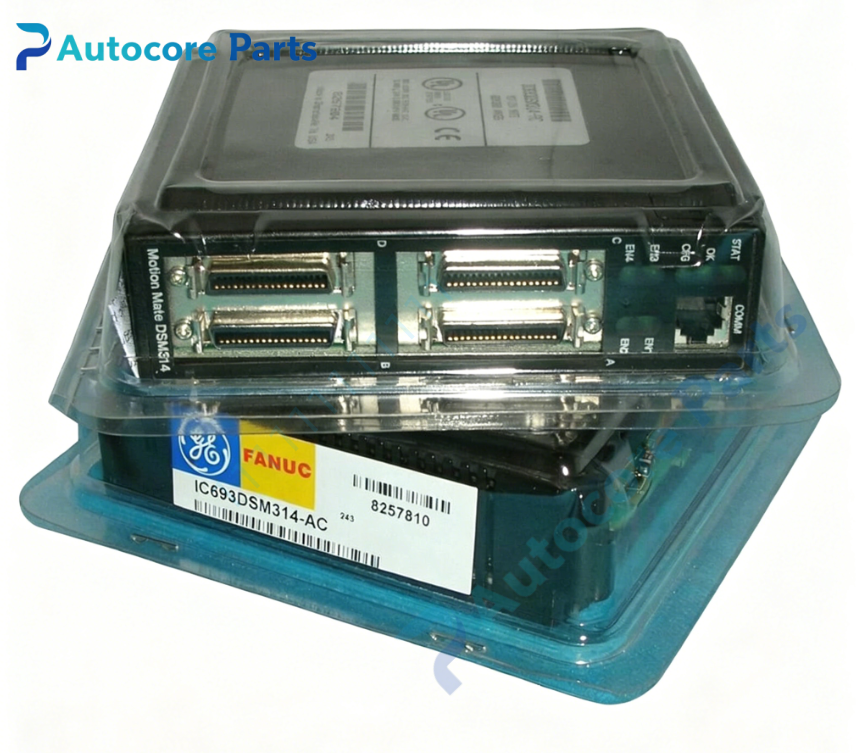

InterfaceSeries90-30 backplane gold-edge connector,4-axis servo dedicated terminal connectors,RS232 RJ11 service port,on-board OK / STAT / CFG LED indicators for GE Fanuc IC693DSM314-AC.

DiagnosticModule offline:Check backplane +5VDC power supply and module seating. Axis tracking error:Encoder wiring fault, wrong servo gain or mechanical binding. CFG fault:Invalid motion program configuration or firmware mismatch.

Product BriefIC693DSM314-AC is GE Fanuc legacy Series90-30 4-axis Motion Mate digital servo module,with electronic cam and multi-axis synchronization for high precision motion automation,discontinued motion control spare card.
