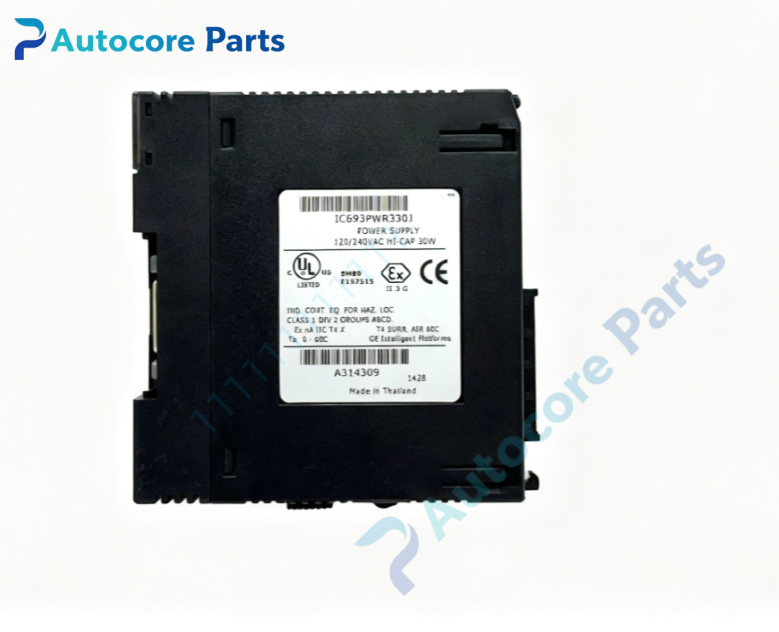

GE Fanuc IC693PWR330J Power Supply Module

Technical SpecificationsModel：IC693PWR330J Brand：GE Fanuc Product Type: High capacity rack power supply module for Series90-30 PLC baseplate

Module Feature:Function: Supply stable DC power to Series90-30 rack backplane,CPU and I/O modules. High capacity design allows full 30W allocated to +5VDC for large rack configuration. Input range:85~264VAC,47~63Hz; or 90~150VDC (125VDC nominal) Total rated output power:30W Output channels: +5VDC (up to 30W for backplane logic) 24VDC Relay output (max15W) Isolated 24VDC (max20W for field I/O) Protection:Overvoltage, overload, short circuit protection LED indicators: POWER, FAULT diagnostic lights Hardware self-diagnosis: output voltage monitoring, over-load detection J = hardware revision variant

Electrical ParametersAC input max apparent power:100VA DC input max power:50W Isolation:1500V RMS between input and output

Mechanical & Structure:Mounting:Install at the leftmost slot of Series90-30 rack baseplate Weight:0.45kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC693PWR330J belongs to GE Fanuc Series90-30 PLC family. Compatible with all Series90-30 CPUs and I/O modules. It is suitable for long racks with many I/O modules. Widely used in chemical, water treatment and factory automation control systems.

FunctionIC693PWR330J is high capacity power supply for Series90-30 PLC rack. It accepts wide range AC or DC input. It provides three regulated DC outputs for backplane and relay/isolated I/O. Built-in protection prevents module damage from short circuit or overload. Front LEDs display power normal or fault status.

InstallationFollow lockout/tagout safety procedure before installation. Mount IC693PWR330J in the leftmost power slot of Series90-30 baseplate. Wire AC/DC input power to terminal block. Install CPU and I/O modules on backplane. Switch on input power and verify POWER LED on.

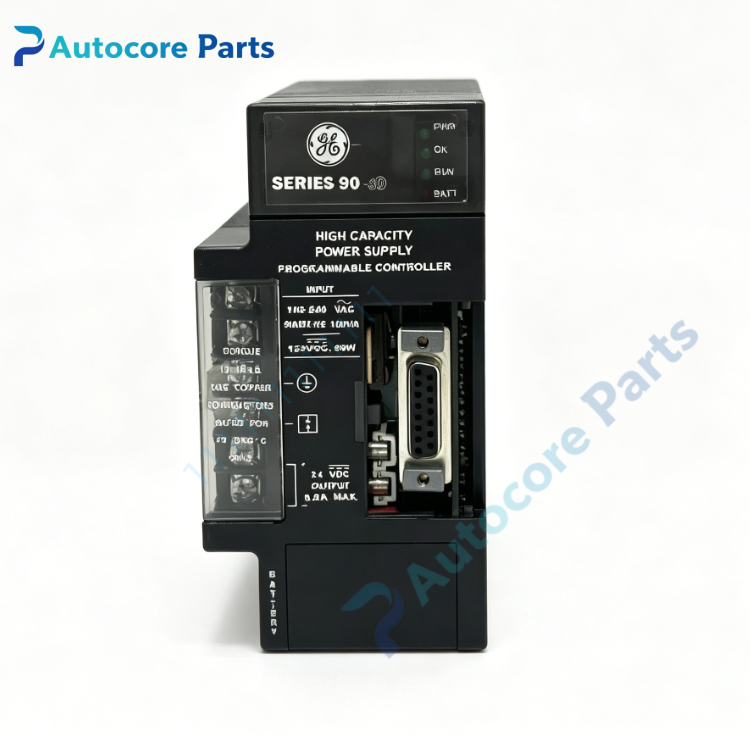

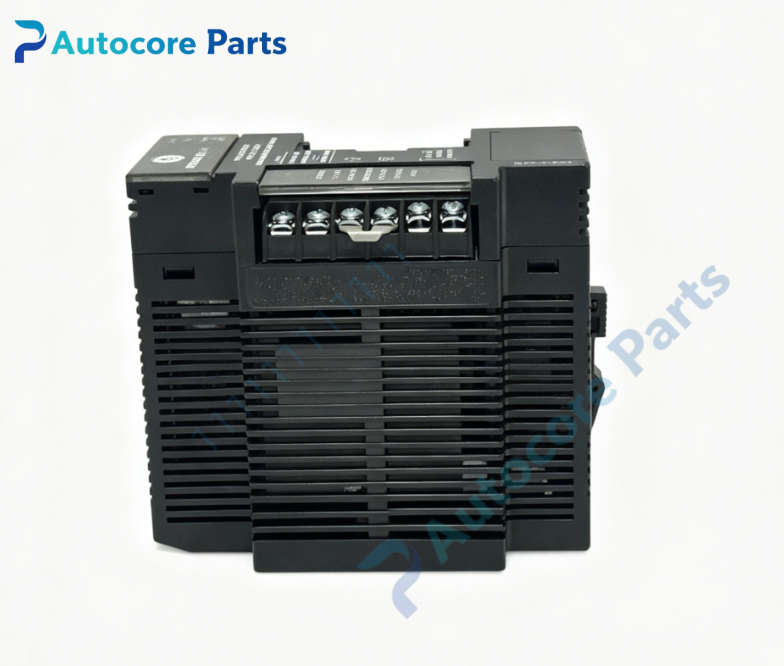

InterfaceSeries90-30 backplane gold-edge connector,AC/DC input terminal block,on-board POWER / FAULT LED indicators for GE Fanuc IC693PWR330J.

DiagnosticNo power output:Check input AC/DC source and wiring, input fuse condition. FAULT LED lit:Overload, short circuit or overvoltage fault on output side. Random module reset:Insufficient power capacity for total rack load.

Product BriefIC693PWR330J is GE Fanuc legacy Series90-30 high capacity rack power supply,supports wide AC/DC input and 30W total output for large PLC rack,discontinued power spare module.
