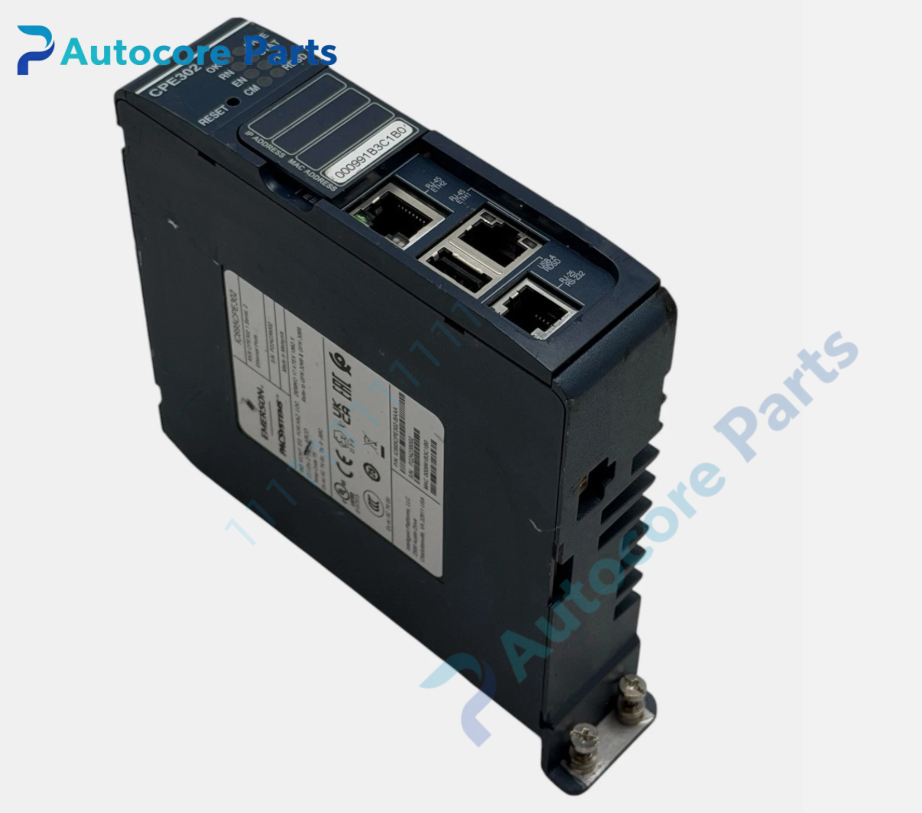

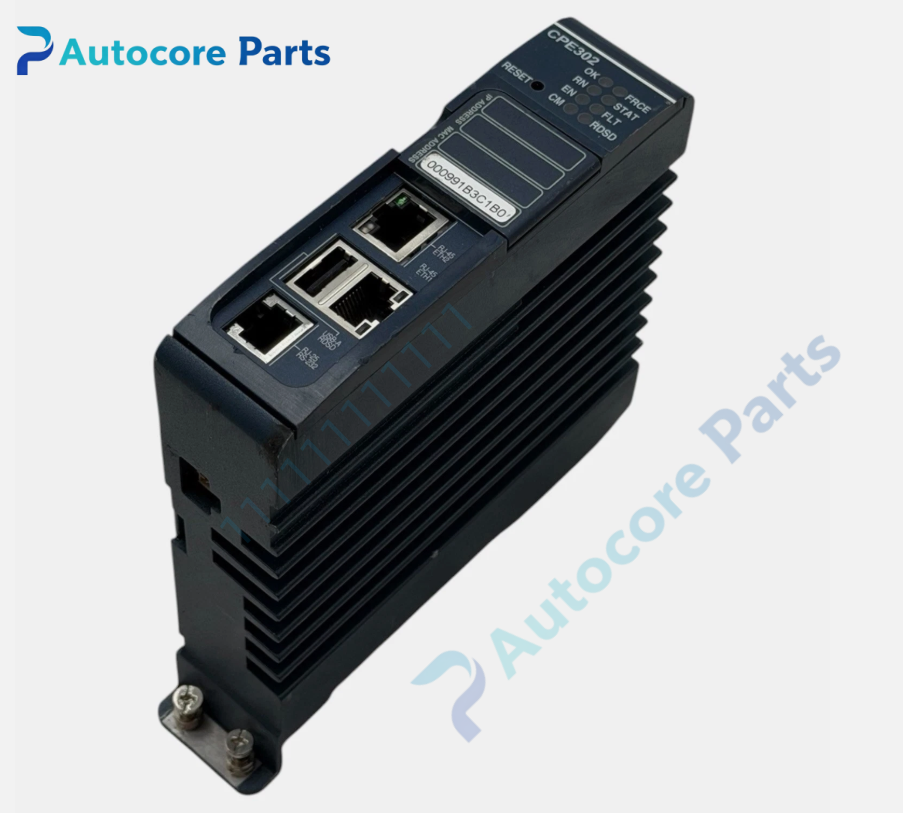

GE Fanuc IC695CPE302 CPU Processor Module

Technical SpecificationsModel：IC695CPE302 Brand：GE Fanuc Product Type: Single-slot plug-in CPU processor module for PACSystems RX3i universal backplane

Module Feature:Function: Main processor controller for PACSystems RX3i PLC rack, executes user control logic, handles I/O scanning and multi-protocol industrial communication. Processor speed:1.1GHz User memory:2MB SRAM + Flash memory Max discrete I/O:16K bits Max analog I/O:16K words Onboard ports:1×10/100Mbps Ethernet,1×RS232 serial port,1×USB2.0 port Supported protocols:Modbus RTU Slave, SNP Slave, Serial I/O, EGD, Modbus TCP LED indicators:CPU OK, RUN, FAULT, FORCE, I/O ENABLED, COM diagnostic lights Hardware self-diagnosis:Logic execution monitoring, memory check, backplane bus detection, communication port self-test Programming software:Proficy Machine Edition

Electrical ParametersBackplane supply:+5V and +3.3V from RX3i backplane Power consumption:Max 4.1W

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.25kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695CPE302 belongs to GE Fanuc PACSystems RX3i platform. Compatible with RX3i backplane, power supply and full series IC695 I/O and communication modules. Widely used for factory automation, water treatment and small to medium process control systems.

FunctionIC695CPE302 is the main CPU controller for PACSystems RX3i. It runs user PLC logic program, scans local and remote I/O modules, and processes Ethernet and serial communication data. Built-in multiple communication ports reduce extra communication slot occupation. Comprehensive self-diagnosis functions help quickly locate system and hardware faults.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695CPE302 into RX3i backplane slot and lock retainer. Connect Ethernet, serial or USB cables as required. Download hardware configuration and user program in Proficy Machine Edition. Power rack on and switch CPU to RUN mode.

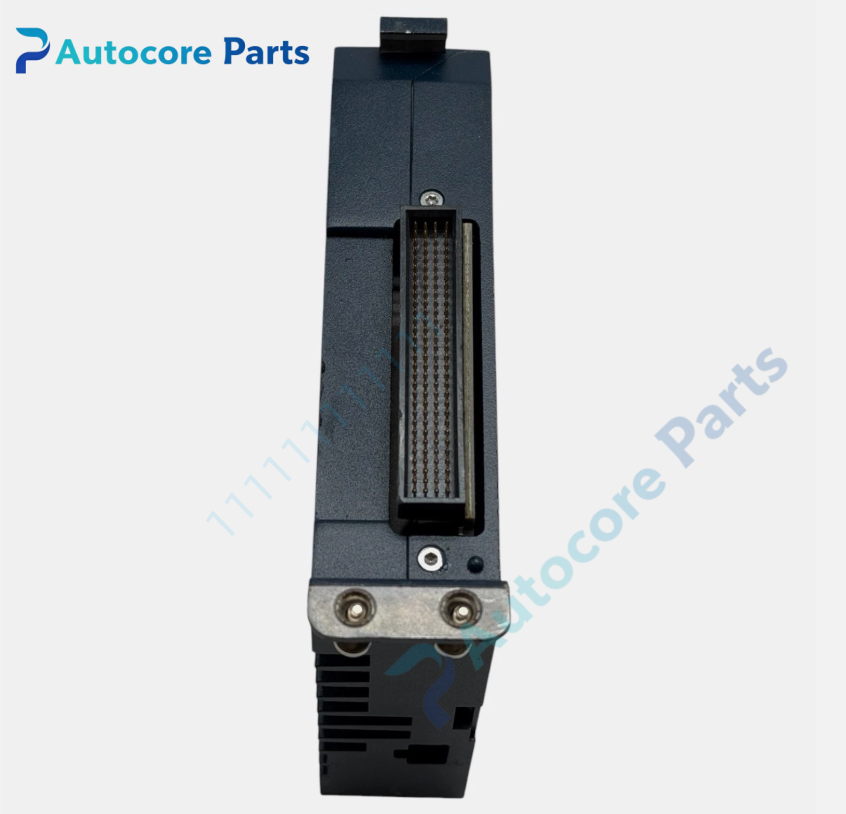

InterfaceRX3i backplane gold-edge connector,10/100Mbps Ethernet port,RS232 serial port,USB2.0 port,on-board multi-status LED indicators for GE Fanuc IC695CPE302.

DiagnosticCPU unable to enter RUN mode:Program error, hardware configuration mismatch or I/O fault. FAULT LED lit:Memory error, backplane communication failure or hardware malfunction. No network connection:Ethernet cable fault or incorrect IP address setting.

Product BriefIC695CPE302 is GE Fanuc legacy PACSystems RX3i CPU processor module,with 1.1GHz processor and multi onboard communication ports for medium automation control applications,discontinued industrial CPU spare card.
