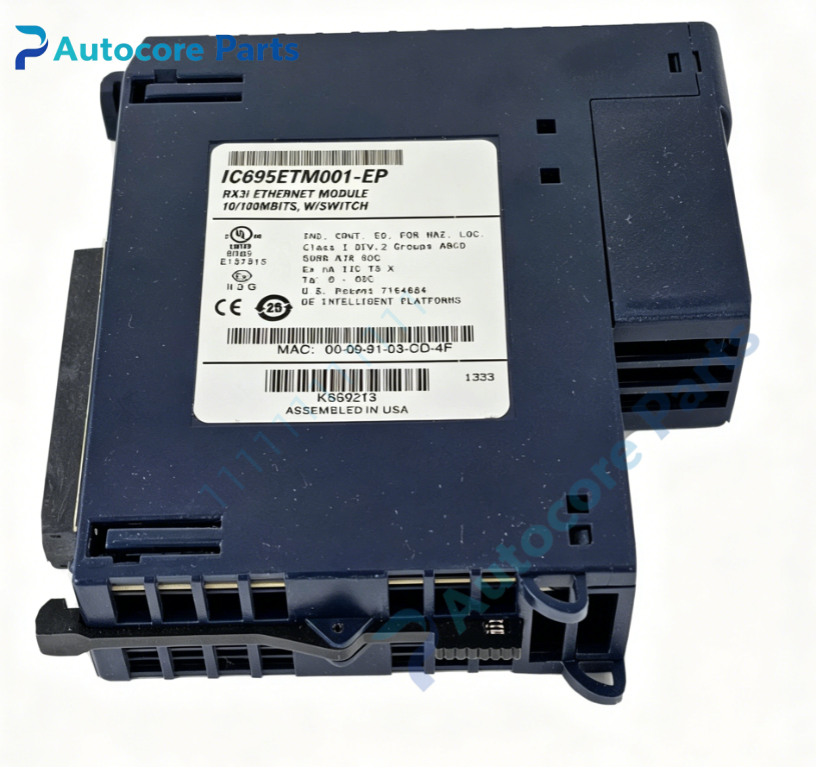

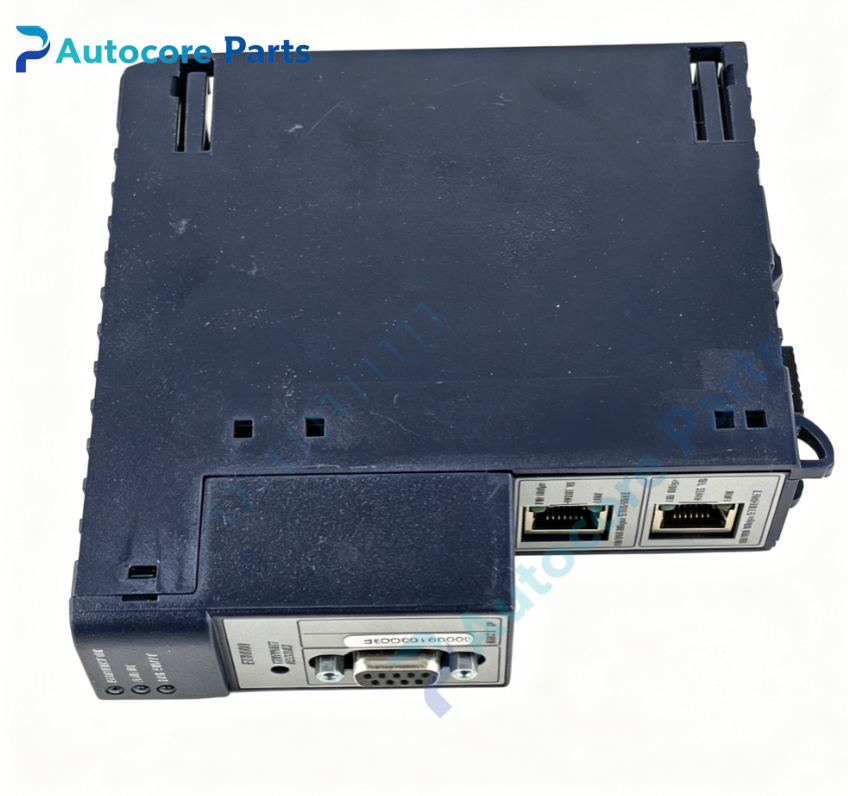

GE Fanuc IC695ETM001 Ethernet Interface Module

Technical SpecificationsModel：IC695ETM001 Brand：GE Fanuc Product Type: Single-slot plug-in Ethernet communication module for PACSystems RX3i PLC rack

Module Feature:Processor:200MHz dedicated communication processor Ports:2 × 10/100Base-TX shielded RJ45 ports,embedded network switch,support daisy-chain connection;1 × RS232 9pin D-sub Station Manager port Protocols:Ethernet Global Data(EGD),SRTP,Modbus TCP Server Connection capacity:Up to 48 SRTP server connections,32 SRTP client channels,16 Modbus TCP concurrent connections Compliance:IEEE802.3 / IEEE802.2 standard Single IP & MAC address for dual Ethernet ports Recessed reset pushbutton for firmware reset LED indicators:Module OK,LAN status,port link/activity and speed indicators Support hot-swap under qualified system configuration Hardware self-diagnosis for link fault and communication error detection

Electrical Parameters:Backplane supply:+3.3VDC 1.25A, +5VDC 1.0A Serial baud rate:1200 ~115200 bps Ethernet rate:10/100 Mbps auto negotiation,auto MDI/MDIX crossover detection

Mechanical & Structure:Mounting:Plug-in installation into RX3i backplane slot Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC695ETM001 belongs to GE Fanuc PACSystems RX3i control family. Compatible with RX3i CPU, backplane, power supply and I/O modules. Widely applied on manufacturing, water treatment and power auxiliary control system for PLC inter-controller and SCADA/HMI network communication.

Function

IC695ETM001 is dedicated Ethernet communication module manufactured by GE Fanuc for RX3i PACSystem. It handles high-speed industrial network data exchange between RX3i PLC, other PAC controllers and SCADA/HMI. Dual RJ45 ports with built-in switch support daisy chain network layout. EGD realizes fast shared process data publishing, SRTP provides reliable control communication, Modbus TCP connects third-party field devices. RS232 station manager port is used for local module configuration and diagnostic. LED indicators help check link state and communication fault.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off RX3i rack power. Insert IC695ETM001 module into vacant backplane slot and lock retention latch. Connect Ethernet cables and RS232 configuration cable. Set IP address and network parameters via station manager port. Power on and verify link status and data communication.

Interface

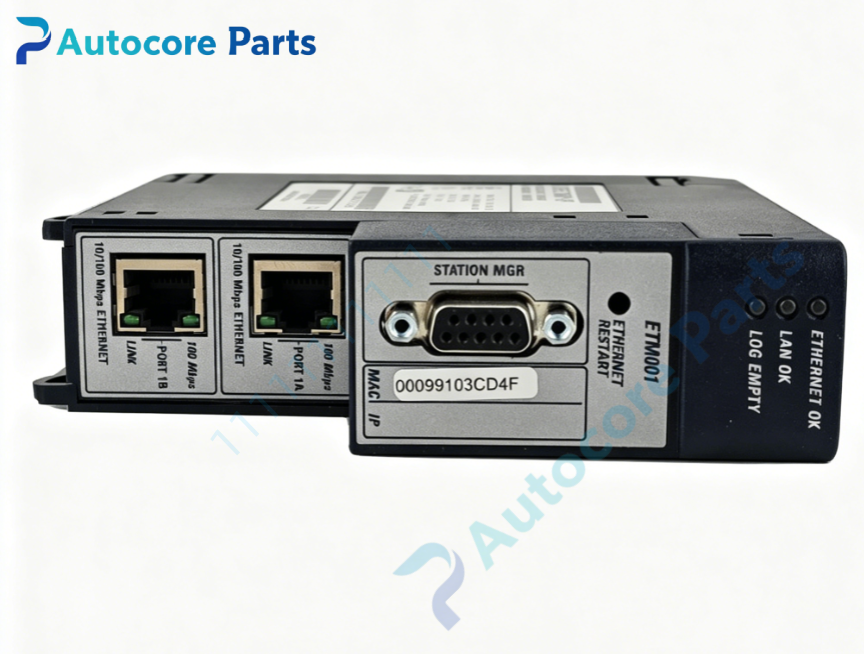

RX3i backplane gold-edge connector,dual shielded RJ45 10/100 ports,9pin D-sub RS232 station manager port,on-board status LED indicators for GE Fanuc IC695ETM001.

Feature

Original GE Fanuc IC695ETM001 RX3i Ethernet module,200MHz communication processor,dual RJ45 with embedded switch,support EGD SRTP Modbus TCP,RS232 local configuration port,hot-swap capable,comprehensive link diagnostic,UL & CE certified. This spare unit is used for PACSystems RX3i PLC industrial network communication maintenance and hardware replacement.

Diagnostic

No LAN link:Check backplane power supply,network cable continuity and RJ45 connector. EGD/SRTP communication interrupt:Verify IP configuration,network topology and firewall setting. Module fault LED on:Troubleshoot module configuration error or backplane bus failure.

Product Brief

IC695ETM001 is GE Fanuc legacy PACSystems RX3i single-slot dual-port Ethernet communication module,supports EGD,SRTP and Modbus TCP for industrial PLC network interconnection,discontinued rack spare communication card.
