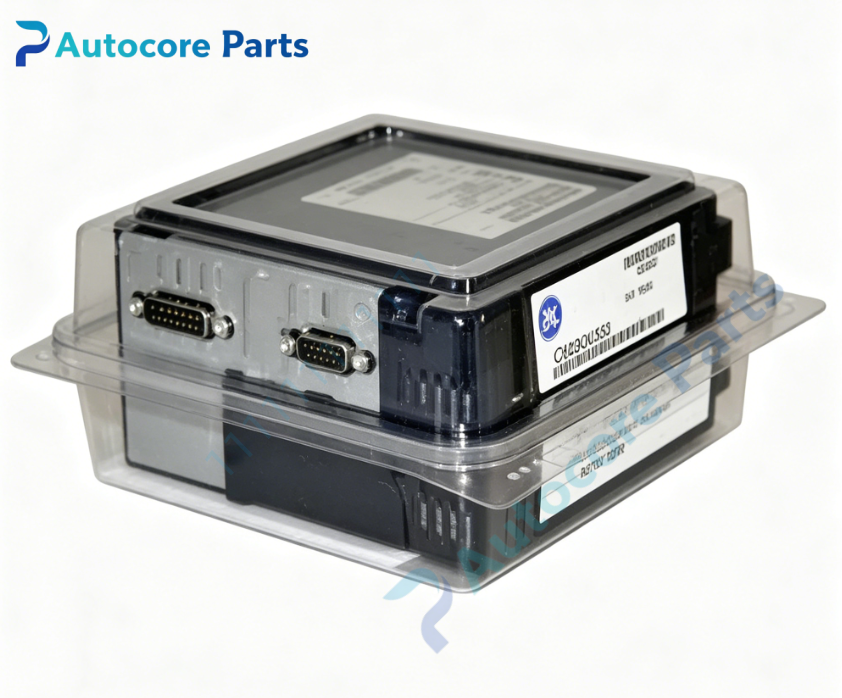

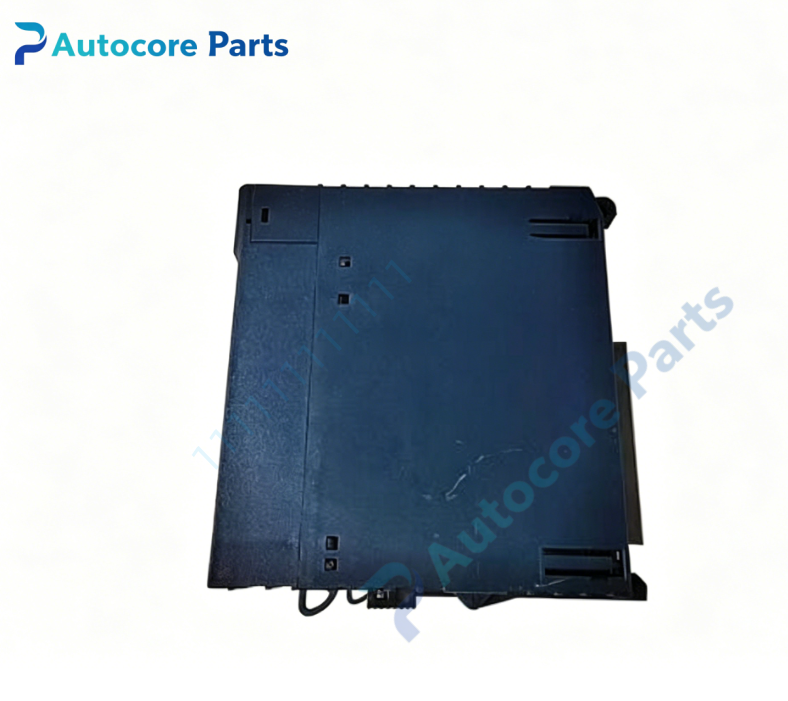

GE Fanuc IC695NIU001-AH Network Interface Unit Module

Technical SpecificationsModel：IC695NIU001-AH Brand：GE Fanuc Product Type: Single-slot plug-in Ethernet Network Interface Unit for PACSystems RX3i universal backplane

Module Feature:Function: Network interface unit for PACSystems RX3i, provides Ethernet and serial communication interfaces, supports optional local logic execution and remote rack management, AH hardware revision with component optimization for improved temperature range stability. Onboard memory:10MB built-in flash memory for local data storage; 20K bytes optional local logic memory Onboard ports:1×Ethernet port,1×RS232 serial port,1×RS485 serial port Supported protocols:Modbus RTU Slave, SNP, Serial I/O, Modbus RTU Master via C application block Real time clock:Battery-backed calendar real-time clock Firmware:Field upgradable firmware LED indicators:OK, RUN, FAULT, LINK, ACT diagnostic lights Hardware self-diagnosis:Backplane bus monitoring, port connection detection, memory integrity check, RTC battery status monitoring Programming software:Proficy Machine Edition AH = hardware revision variant

Electrical ParametersBackplane supply:+3.3V max 1.25A; +5V max 1.0A Power consumption:Max 5.8W Battery for RTC and memory data retention, sold separately

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.31kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695NIU001-AH belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. It can be used for remote I/O rack control and network data transmission, widely used in power, water treatment and factory automation systems.

FunctionIC695NIU001-AH is Ethernet network interface unit for RX3i PACSystems. It connects RX3i rack to Ethernet network and provides RS232 and RS485 serial interfaces for field instruments. It supports optional local logic program running independently. Battery-backed RTC keeps time when power loss, and supports firmware upgrade on site. AH revision optimizes internal electronic components for better long-term stability under continuous operating temperature. It is commonly used as remote rack network adapter for distributed I/O systems.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695NIU001-AH into RX3i backplane slot and lock retainer. Install backup battery for RTC. Connect Ethernet and serial cables as required. Configure network parameters, serial protocol and local logic in Proficy Machine Edition. Power on and verify network and serial communication.

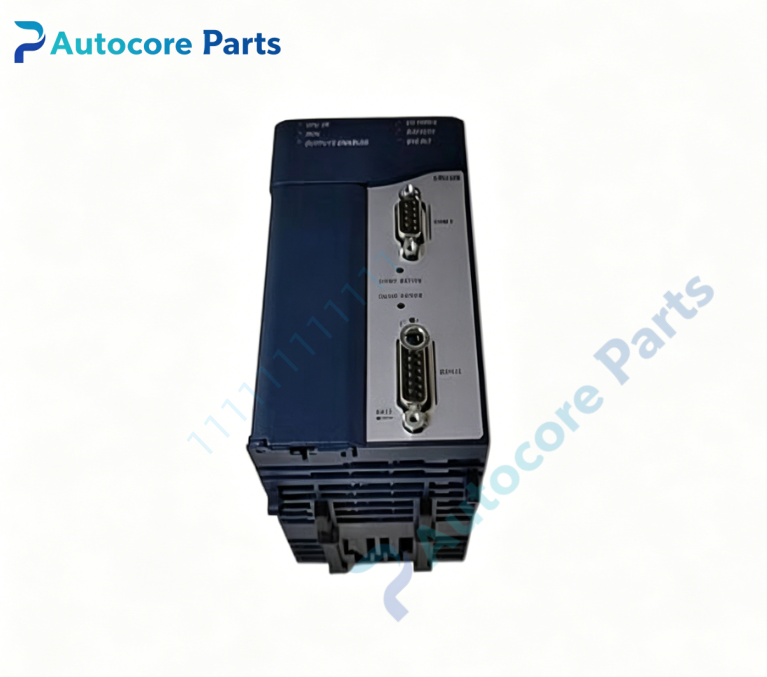

InterfaceRX3i backplane gold-edge connector,Ethernet RJ45 port,RS232 port,RS485 port,on-board OK / RUN / FAULT / LINK / ACT LED indicators for GE Fanuc IC695NIU001-AH.

DiagnosticNo Ethernet communication:Check network cable,IP address setting or link status. Serial communication failure:Baud rate mismatch, wrong protocol or cable wiring fault. FAULT LED lit:RTC battery low, memory error or backplane communication fault.

Product BriefIC695NIU001-AH is GE Fanuc legacy PACSystems RX3i Ethernet network interface unit,with optimized hardware revision,10MB flash and dual serial ports for remote rack and field instrument communication,discontinued industrial communication spare card.
