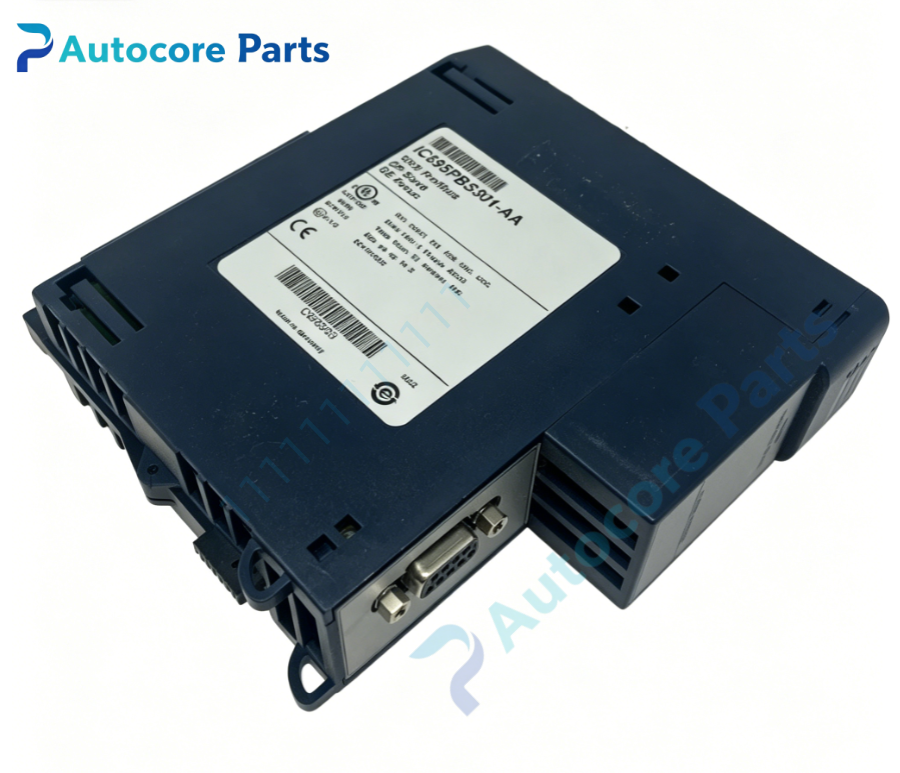

GE Fanuc IC695PBS301-AA PROFIBUS DP Slave Module

Technical SpecificationsModel：IC695PBS301-AA Brand：GE Fanuc Product Type: Single-slot plug-in PROFIBUS DP slave module for PACSystems RX3i universal backplane

Module Feature:Function: PROFIBUS DP slave interface module, makes RX3i PLC act as slave station on PROFIBUS DP network,exchange cyclic I/O data with PROFIBUS DP master controller. Interface: 9-pin D-sub female PROFIBUS connector Baud rate:9.6kbps ~12Mbps, auto baud detection Data capacity: Max 244 bytes input data, max 244 bytes output data Protocol: PROFIBUS DP-V0 cyclic data exchange, DP-V1 acyclic read/write and alarm messaging LED indicators: Module OK, Bus Status, Diagnostic indicators Hot-swap available under qualified system configuration Hardware self-diagnosis: bus link fault, bus short, module internal error, slave station diagnostic Backplane communication with RX3i CPU; requires RX3i CPU firmware V3.0 or above Programming software: Proficy Machine Edition version 5.0 SP3 or newer

Electrical ParametersBackplane supply:+5VDC, power consumption 3.5W / 440mA PROFIBUS bus power supplied externally

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane slot Protection class:IP20 Weight:0.38kg

Environmental:Operating temperature:-10℃ ~ +55℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695PBS301-AA belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i CPU, power supply and I/O modules. Widely used for factory automation, packaging, water treatment and power auxiliary control to connect RX3i into existing PROFIBUS DP system.

FunctionIC695PBS301-AA is PROFIBUS DP slave communication module for GE Fanuc RX3i PACSystems. It allows RX3i PLC to join PROFIBUS DP network as slave station. Cyclic I/O data is exchanged between RX3i and PROFIBUS master. DP-V1 supports non-cyclic parameter access and alarm message. Front LEDs show module health and bus running status for fast troubleshooting.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695PBS301-AA into vacant RX3i slot and lock retainer. Connect PROFIBUS cable and install terminator resistor at bus terminal. Set slave address and hardware configuration in Proficy Machine Edition. Power on and verify bus communication and cyclic data exchange.

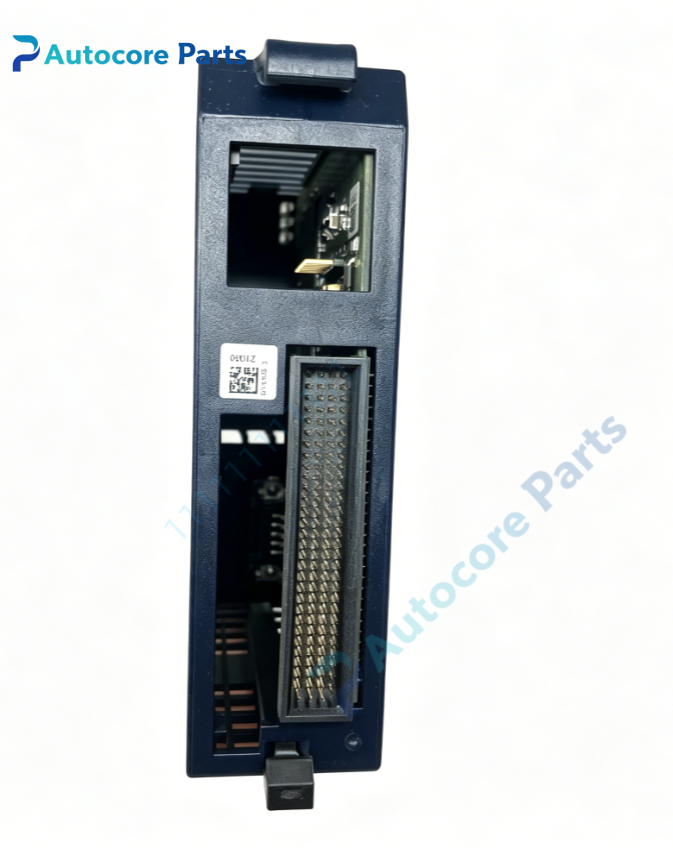

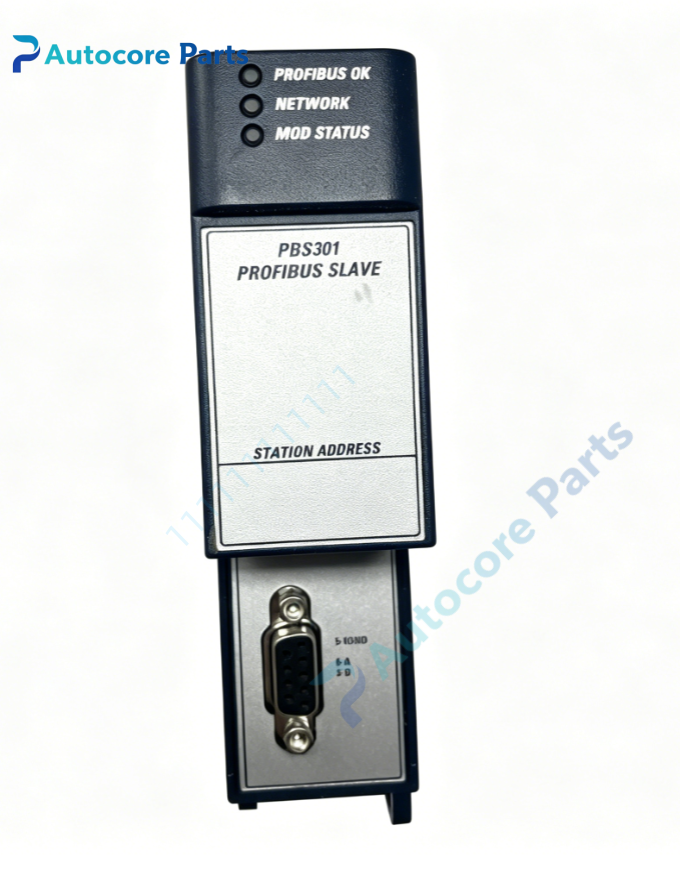

InterfaceRX3i backplane gold-edge connector,9pin D-sub PROFIBUS port,on-board module / bus diagnostic LED indicators for GE Fanuc IC695PBS301-AA.

DiagnosticBus LED off:Check backplane power,PROFIBUS cable,terminator resistor and master configuration. Cyclic data loss:Verify slave address,baud rate matching and input/output data length. Module fault alarm:Inspect backplane communication failure or module internal hardware error.

Product BriefIC695PBS301-AA is GE Fanuc legacy PACSystems RX3i PROFIBUS DP slave module,supports DP-V0/DP-V1 for integrating RX3i PLC into PROFIBUS DP fieldbus network,discontinued fieldbus spare card.
