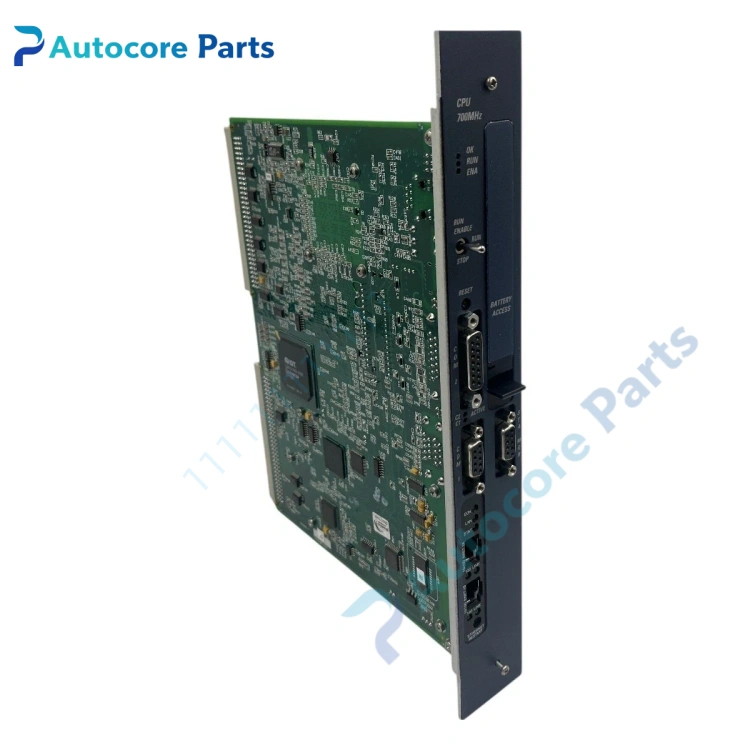

GE Fanuc IC698CRE020 RX7i PACSystems CPU Module

Feature & Principle

It is the core processor of GE PACSystems RX7i VME platform. It executes ladder logic, structured text and other control programs, realizes logic operation, data collection and linkage control. It integrates Ethernet communication interface, supports redundant hot standby configuration, can communicate with I/O modules, HMI and upper SCADA system through backplane VME bus. It has built-in memory, battery for program retention and comprehensive self-diagnosis function. This model is discontinued and mainly used for old system maintenance spare.

Specifications

Model: IC698CRE020 Brand: GE Fanuc Series: PACSystems RX7i CPU frequency: 700 MHz Bus: VME bus Communication: 10/100Mbps Ethernet Programming software: Proficy Machine Edition Redundancy: Support CPU hot standby redundancy Installation: VME single slot Application: Power plant, petrochemical, water treatment, large automation control system Certification: CE, UL

Components & Diagnostics

Main processing chip, memory, flash chip, Ethernet transceiver, backup battery, VME backplane connector, status LED. Common faults: battery low voltage, program loss, Ethernet link failure, CPU synchronization failure, boot abnormal.

Product Brief

IC698CRE020 CPU module, GE Fanuc RX7i control spare widely used for old DCS and PLC cabinet overhaul and replacement.
