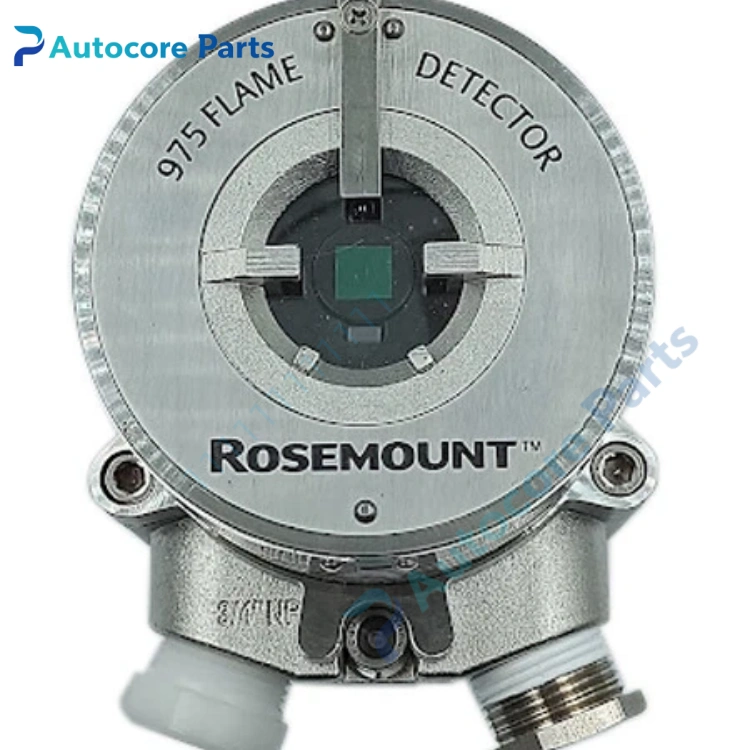

Rosemount 975 Multi Spectrum IR Flame Detector

Feature & Principle

It adopts multi-spectrum infrared detection principle. It identifies the unique flicker frequency and spectral characteristic of hydrocarbon flame. Advanced signal algorithm suppresses interference from sunlight, hot surfaces and arc light, greatly reducing false alarm rate. It integrates self-test function, can continuously check sensor and circuit health status. It is equipped with explosion-proof stainless steel housing, suitable for hazardous area Class I Div 1 / ATEX zone 1. It can connect to fire alarm system or DCS via 4-20mA and dry contact relay signal.

Specifications

Model: 975MR2A6S1E2 Brand: Rosemount Analytical Series: 975 Flame Detector Detection type: Multi-spectrum infrared Power supply: 24VDC Output: 4-20mA, relay contact Housing material: 316 stainless steel Explosion-proof: ATEX / IECEx, SIL capable Response time: Adjustable Application: Boiler burner, heating furnace, petrochemical plant, refinery, power plant, gas compressor station Certification: CE, ATEX, SIL2

Components & Diagnostics

Multi-spectrum IR sensor, signal processing board, explosion-proof enclosure, sight window, terminal block, status LED. Common faults: window dirt blocking detection, sensor aging, wiring loose, self-test fault alarm, false or missing flame signal.

Product Brief

975MR2A6S1E2 flame detector, Rosemount hazardous area flame monitoring spare widely used for burner and furnace fire protection overhaul and replacement.
