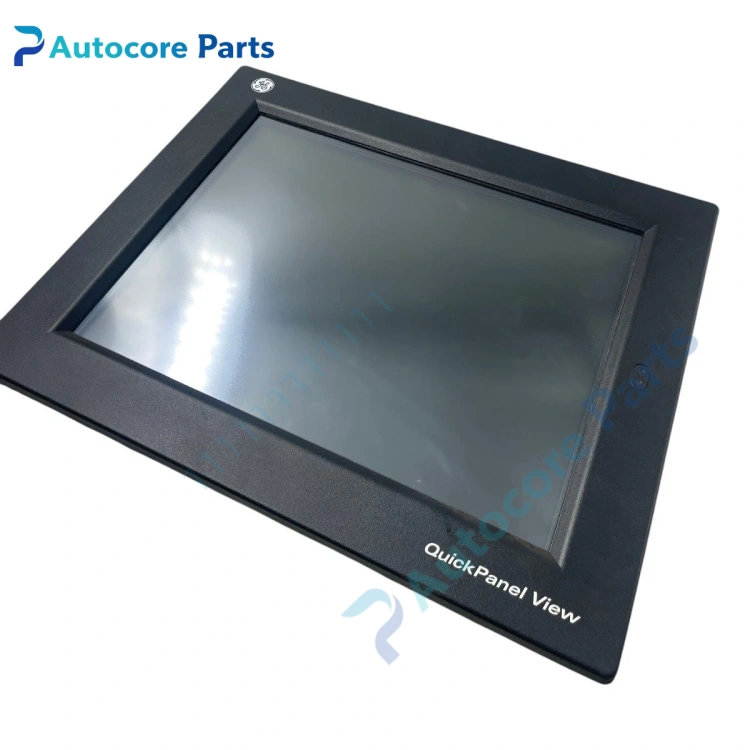

GE Fanuc IC754VGF15CTD QuickPanel View HMI Operator Panel

Feature & Principle

It is an integrated industrial touch operator terminal of GE Fanuc QuickPanel View platform. It runs HMI runtime project, realizes real-time data display, parameter modification, alarm viewing and recipe management. It communicates with PLC through serial port or Ethernet to read and write register data. Resistive touch can adapt to dusty workshop environment. The front sealing structure prevents liquid splashing and dust intrusion. It is programmed by Proficy View-Machine Edition software, this series has been discontinued and used as maintenance spare for old production lines.

Specifications

Model: IC754VGF15CTD Brand: GE Fanuc Series: QuickPanel View Display: 15 inch TFT color LCD Touch type: Analog resistive touch Resolution: 1024 × 768 Power supply: 24VDC Communication: Ethernet, RS232, RS485 Front protection: NEMA4X / IP65 Mounting: Panel cutout mounting Configuration software: Proficy View-Machine Edition Application: Packaging machinery, production line, water treatment, old DCS local operation station Certification: CE, UL

Components & Diagnostics

LCD display screen, touch panel, main control board, power supply circuit, communication interface, status indicator LED. Common faults: touch failure, screen backlight no display, communication can not connect, program loss, power supply damage.

Product Brief

IC754VGF15CTD HMI touch panel, GE Fanuc obsolete QuickPanel View spare widely used for old automation equipment operation cabinet maintenance and replacement.
