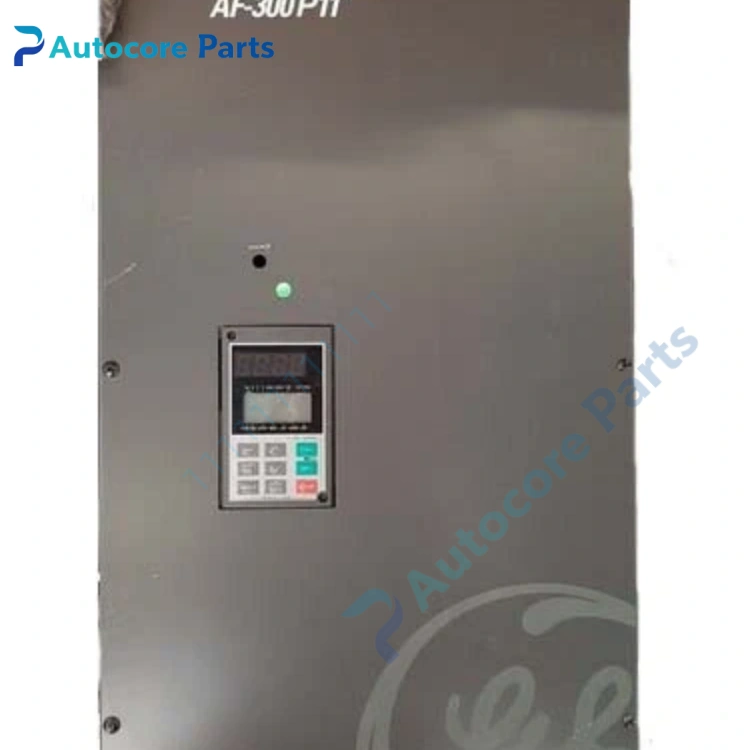

GE Fuji AF-300 P11 AC Variable Frequency Drive

Feature & Principle

It is a classic V/F control inverter jointly developed by GE and Fuji. It adjusts output frequency and voltage proportionally to realize asynchronous motor speed regulation. It has dedicated energy-saving mode for centrifugal pump and fan, built-in PID constant pressure control, flying restart function after power loss. It integrates overcurrent, overvoltage, undervoltage, overheat, phase loss and motor overload protection. Optional Profibus-DP communication module for upper system linkage. This series has been discontinued and mostly used as maintenance spare parts for old equipment.

Specifications

Model: AF-300 P11 Brand: GE Fuji Control mode: V/F open loop control Voltage grade: 230V / 460V three-phase Power range: 0.5HP ~ 200HP Cooling: Forced air cooling Keypad: Detachable local keypad Communication: Profibus-DP optional Protection class: IP20 Application: Water supply pump, induced draft fan, conveyor, HVAC system Certification: UL, CE

Components & Diagnostics

IGBT power module, main control board, current transformer, cooling fan, operation panel, terminal block. Common faults: fan failure, overheat alarm, ground fault, parameter loss, IGBT breakdown.

Product Brief

AF-300 P11 inverter, GE Fuji obsolete drive spare widely used for old pump and fan control cabinet overhaul and replacement.
